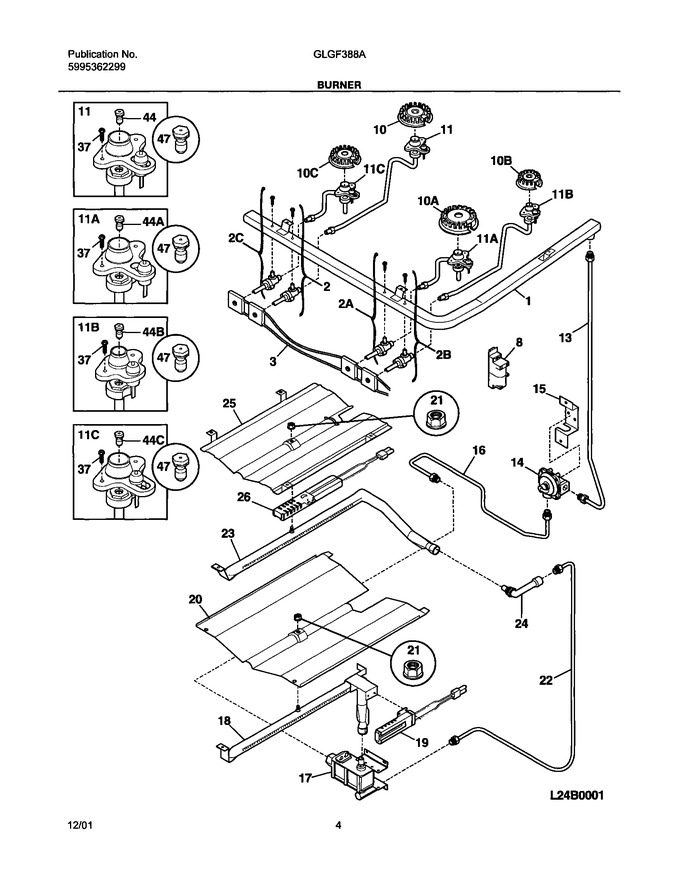

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	316091600		Bracket-regulator				$ 73.56
20	3131284		Baffle-oven Burner				$ 155.77
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
25	5303210379		Baffle-broiler				$ 175.88
37	316240600		Screw,assy Mtg ,ignitor/orifice			Immediately	$ 12.13
44	316237901		Orifice,top Burner ,12k				$ 64.46
47	GRLP3		Lp Conversion Kit,w/instructions   (Replaces: GRLP1)				$ 57.11
44A	316237900		Orifice,top Burner ,14k				$ 63.80
44B	316237903		Orifice-top Burner,5k				$ 67.83
44C	316237902		Orifice,top Burner ,9.5k				$ 65.22
F1	316204000		Pipe,manifold		Appelez-nous	-
F10	316212300		Burner,sealed ,12k				$ 105.95
F10A	316212500		Burner,sealed ,14k				$ 122.09
F10B	316212600		Burner,sealed ,5k		Appelez-nous	-
F10C	316212400		Burner,sealed ,9.5k			Immediately	$ 32.62
F11	316237702		Ignitor/orifice Assy.,top Burner ,rear ,12k,w/holder ,tube				$ 245.33
F11A	316237802		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11B	316237707		Ignitor/orifice Assy.,top Burner ,rear ,5k,w/holder ,tube   (Replaces: 316237700)				$ 98.60
F11C	316237805		Ignitor/orifice Assy.,top Burner ,front   (Replaces: 316237800)				$ 132.71
F13	316207000		Tube,3/8 `aluminum ,rgltr To Manf ,with Fittings				$ 96.55
F14	5304521339		Regulator,pressure   (Replaces: 316091706)			Immediately	$ 105.42
F16	316065003		Tube,valve To Regul. `3/8				$ 126.42
F17	5303208499		Valve-safety-dual			Immediately	$ 559.67
F18	3131290		Burner-oven		Appelez-nous	-
F19	5303935066		Ignitor,oven Kit ,w/nut & Instr			Immediately	$ 59.58
F2	5303935210		Valve,12k Top Burner ,w/ Mtg Screw				$ 185.59
F22	316065002		Tube-valve To Mixer				$ 80.90
F23	08067935		Burner-broiler				$ 142.59
F24	316070400		Elbow`mixer		Appelez-nous	-
F26	5303935068		Ignitor,broiler   (Replaces: 316119302)				$ 166.55
F2A	5303935211		Valve,14k Top Burner ,w/ Mtg Screw				$ 157.34
F2B	5303935212		Valve,5k Top Burner ,w/ Mtg Screw				$ 33.81
F2C	5303935213		Valve,9.5k Top Burner ,w/ Mtg Screw				$ 79.22
F3	316219004		Wiring Harness,w/igntr Switch   (Replaces: 316219000)			Immediately	$ 174.86
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
NI	316021104		Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt				$ 7.79
NI	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
NI	316248105		Instructions,lp Kit		Appelez-nous	-
NI	316113400		Spacer,mixer Elbow		Appelez-nous	-
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	08068018		Shield,wire ,safety Valve		Appelez-nous	-
