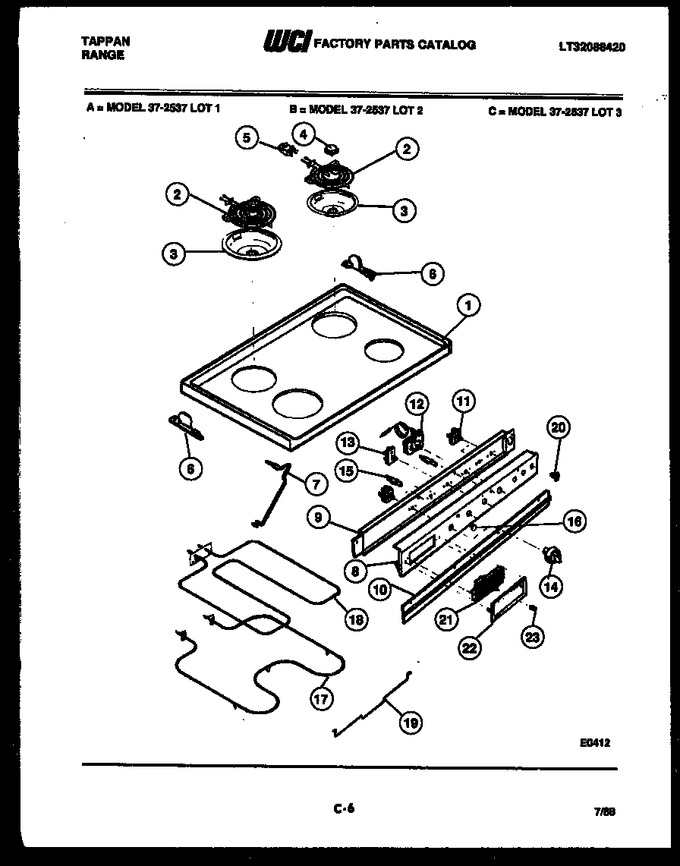

02 - Cooktop, Broiler And Control Parts
03 - Body Parts
04 - Backguard
05 - Door Parts
06 - Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3251285 | Main Top (almond) |
|
- | |||||
| 2 | 3051434 | Element, Top, Large (2) |
|
- | |||||
| 2 | 3051433 | Element, Top, Small (2) |
|
- | |||||
| 3 | 3013588 | Pan, Element, Large (2) |
|
- | |||||
| 3 | 3013589 | Pan, Element, Small (2) |
|
- | |||||
| 4 | 445T006P01 | Medallion (4) |
|
- | |||||
| 5 | 3051402 | Block-termin (4) |
|
- | |||||
| 6 | 3011559 | Brkt-hinge Rh |
|
- | |||||
| 6 | 3011558 | Brkt-hinge Lh |
|
- | |||||
| 7 | 3013818 | Top Support Rod (2) |
|
- | |||||
| 8 | 3016750 | Panel-manifold |
|
- | |||||
| 9 | 3051508 | Plate-inst. Mtg. |
|
- | |||||
| 10 | 3051145 | Extrusion-heat Shield |
|
- | |||||
| 11 | 699T015P02 | Switch, Top (4) |
|
- | |||||
| 12 | 3051321 | Thermostat |
|
- | |||||
| 13 | 3051317 | Switch-selector |
|
- | |||||
| 14 | 3016752 | Knob-control (4) |
|
- | |||||
| 14 | 3016754 | Knob-selector-switch |
|
- | |||||
| 15 | 3091461 | Light-ind 125v (2) |
|
- | |||||
| 16 | 342T014P01 | Jewel-ind. (3) |
|
- | |||||
| 17 | 3051141 | Element-oven Bake |
|
- | |||||
| 18 | 3051140 | Element-oven Broil |
|
- | |||||
| 19 | 3051373 | Supt-element |
|
- | |||||
| 20 | 3051314 | Switch, Oven Light |
|
- | |||||
| 21 | 3131655 | Clock |
|
- | |||||
| 22 | 3051114 | Bezel, Clock |
|
- | |||||
| 23 | 358T201P01 | Knob, Clock |
|
- | |||||
| 14A | 3016753 | Knob-thermostat |
|
- | |||||
| 15A | 3091462 | Light-ind 250v |
|
- | |||||
| 19A | 3051224 | Retainer Lens (3) (non-illustrated) |
|
- |
