| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

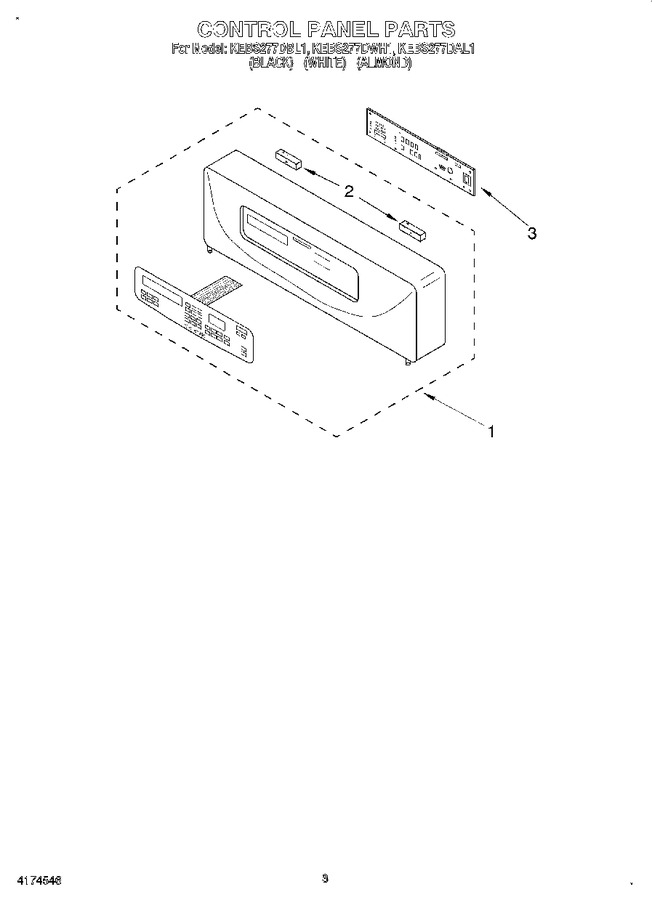

| 1 | 4451291 | Control Panel Assy. W/membrane Switch (black Model) |
|
- | |||||
| 1 | 4451292 | Control Panel Assy. W/membrane Switch (white Model) |
|
- | |||||
| 1 | 4451293 | Control Panel Assy. W/membrane Switch (almond Model) |
|
- | |||||
| 2 | 4159465 | Screw |
|
- | |||||
| 2 | 4451033 | Gasket, Control Panel |
|
- | |||||
| 3 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 3 | 4448871CP | Microcomputer (Replaces: 4448871) |
|
- | |||||
| LIT4449066 | Cookbook, T/c Oven |
|
- | ||||||
| LIT4450571 | Use & Care Guide (oven) |
|
- | ||||||
| LIT4450410 | Installation Instructions |
|
- | ||||||
| LIT4449264 | Easy Set Guide |
|
- | ||||||
| LIT4450937 | Tech Sheet (oven) |
|
- |
