01 - Body (34gk & Gv-4ekxw)
02 - Control Panel (34gk & Gv-4ekxw)
03 - Door (34gk & Gv-4ekxw)

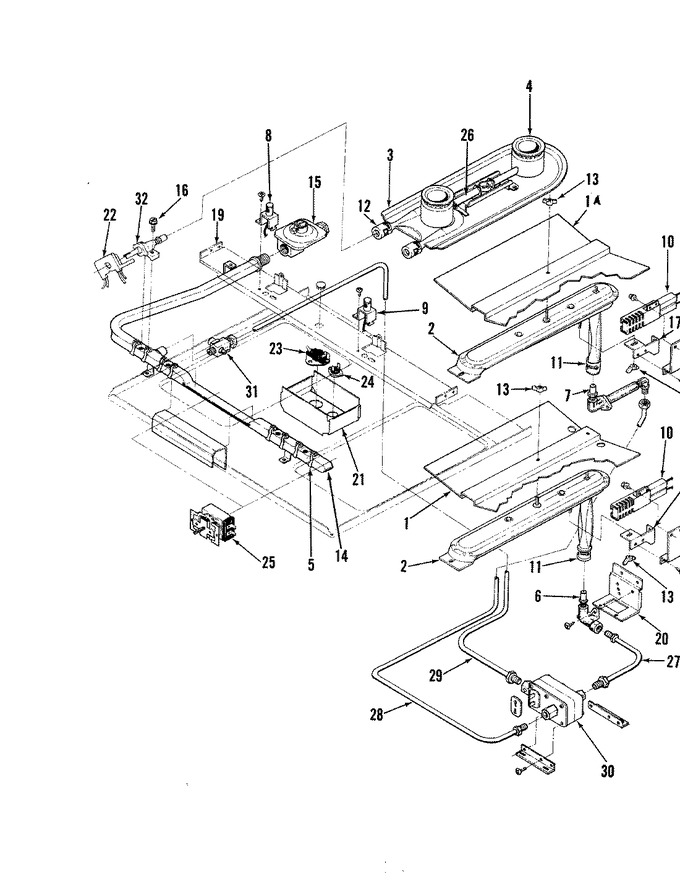

04 - Gas Controls (34gk & Gv-4ekxw)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601W129-13 | Baffle, Assy | 01 |
|
- | ||||
| 1 | 3601W130-45 | Baffle, Bake & Broil | 01 |
|
- | ||||
| 1 | 3801F096-45 | Bracket, H.l. Swit | 01 |
|
- | ||||
| 1 | 3601F099-45 | Baffle, Broil | 01 |
|
- | ||||
| 2 | 3403A016-45 | Burner Assy Broil | 45 |
|
- | ||||
| 2 | 7505P100-60 | Burner, Bake & Broil | 01 |
|
- | ||||
| 2 | 7505P064-60 | Burner, Oven | 01 |
|
- | ||||
| 2 | 3403A015-45 | Burner Oven | 45 |
|
- | ||||
| 3 | Y0300253 | + Burner Assy., Top | 01 |
|
- | ||||
| 4 | 1083219 | Cap, Burner | 01 |
|
- | ||||
| 5 | 1141225 | Clip | 01 |
|
- | ||||
| 5 | 4005F156-20 | Cover, Spark Module | 01 |
|
- | ||||
| 6 | 1285325 | Fitting | 01 |
|
- | ||||
| 7 | 1285326 | Fitting | 01 |
|
- | ||||
| 8 | 1482238 | Ignitor | 01 |
|
- | ||||
| 9 | 1482237 | Ignitor | 01 |
|
- | ||||
| 10 | 7711P173-60 | Knob, Valve | 01 |
|
- | ||||
| 10 | 12400035 | + Ignitor (Replaces: 1482224) | 01 |
|
Immediately | $ 60.44 | |||
| 10 | 7711P322-60 | Knob, Thermostat | 01 |
|
- | ||||
| 10 | 7711P085-60 | Knob | 01 |
|
- | ||||
| 11 | 0607214 | Mixer, Air | 01 |
|
- | ||||
| 12 | Y0607215 | Mixer, Air | 01 |
|
- | ||||
| 12 | 1522102 | Module, Spark | 01 |
|
- | ||||
| 13 | 1555254 | Wing Nut | 01 |
|
- | ||||
| 14 | 7513P044-60 | Pipe, Manifold | 01 |
|
- | ||||
| 15 | 1665248 | Regulator, Pressure | 01 |
|
- | ||||
| 16 | 1986319 | Screw Valve | 01 |
|
- | ||||
| 17 | 0862434 | Support | 01 |
|
- | ||||
| 18 | 0862420 | Support | 01 |
|
- | ||||
| 19 | 0862470 | Support | 01 |
|
- | ||||
| 20 | 0862445 | Support | 01 |
|
- | ||||
| 21 | 7403P188-60 | Switch | 24 |
|
- | ||||
| 21 | 7403P087-60 | Switch, H.l. Fan | 01 |
|
- | ||||
| 21 | 0862462 | Support | 01 |
|
- | ||||
| 22 | WP7403P190-60 | Switch (Replaces: 1832395) | 01 |
|
$ 118.82 | ||||
| 23 | 1832404 | Switch | 01 |
|
- | ||||
| 24 | 7403P187-60 | Switch, Hi Limit | 24 |
|
- | ||||
| 24 | 7403E004 | Switch | 01 |
|
- | ||||
| 25 | 7515P020-60 | Thermostat, Ov | 08 |
|
- | ||||
| 25 | 7515E005 | Thermostat, Gas | 01 |
|
- | ||||
| 26 | 1930342 | Tube | 01 |
|
- | ||||
| 27 | Y0936104 | 3/8 X 8 Tubing | 01 |
|
- | ||||
| 28 | Y0936103 | 3/8 X 45 Tubing | 01 |
|
- | ||||
| 29 | Y0936102 | 3/8 X 72 Tubing | 01 |
|
- | ||||
| 30 | 7501P030-60 | Valve, Oven | 01 |
|
- | ||||
| 30 | 7501P095-60 | Valve, Broil & Bake - Nat | 46 |
|
- | ||||
| 30 | 7501P034-60 | Valve, Broil & Bake | 12 |
|
- | ||||
| 31 | 1951367 | Valve, Shut Off | 01 |
|
- | ||||
| 32 | 1951372 | Valve, Top Burner | 01 |
|
- |
