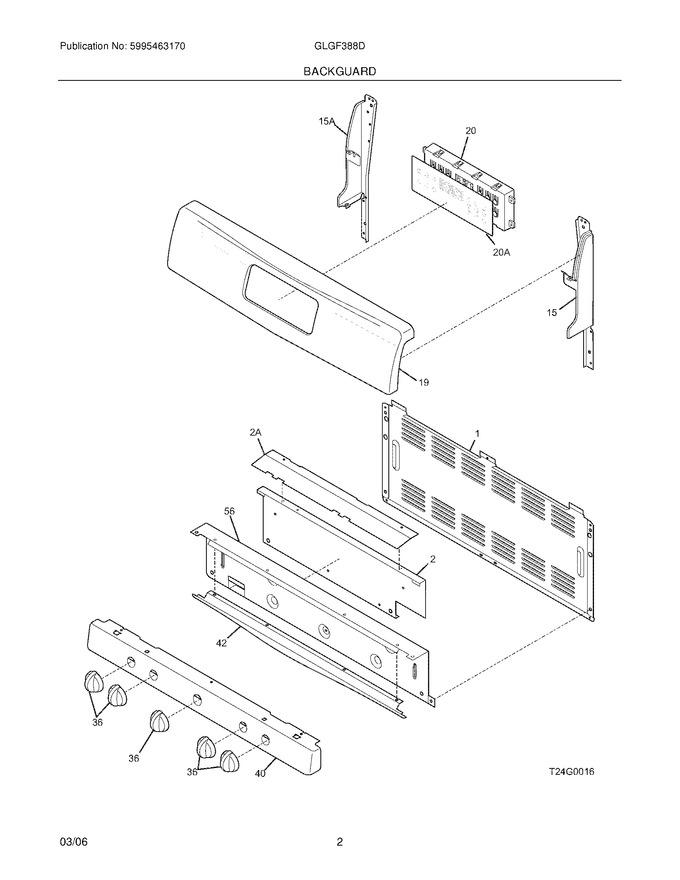

03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316411407		Support,backguard ,bisque ,rh		Appelez-nous	-
19	316424124		Panel,control ,bisque				$ 227.01
36	316220003		Knob,top Valve ,bisque ,(4)				$ 54.86
40	316447321		Panel,manifold ,bisque				$ 51.92
42	316416202		Trim,extrusion ,tan		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316411406		Support,backguard ,bisque ,lh				$ 90.30
20A	316419702		Overlay,clock ,bisque ,w/mini Oven ,es510				$ 22.37
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316418701		Clock/timer,electronic ,es510				$ 351.07
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
