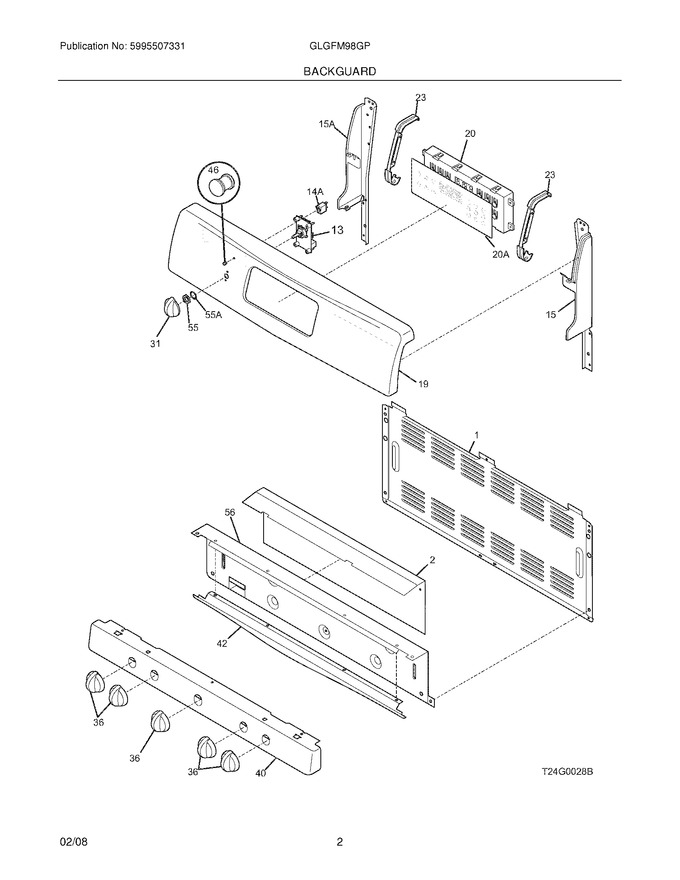

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 57.64
2	316497600		Shield,backguard ,inner				$ 66.31
13	316414406		Control,bake ,mini Oven   (Replaces: 316414405)				$ 206.61
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316436219		Panel,control ,white		Appelez-nous	-
31	316223017		Knob,control ,white				$ 48.93
36	316220000		Knob,top Valve ,white ,(4)				$ 77.97
40	316447362		Panel,manifold ,white				$ 53.45
42	316416205		Trim,extrusion ,gray   (Replaces: 316416201)				$ 51.57
46	316557300		Lens-light/lamp,indicator ,clear   (Replaces: 316437800)			Immediately	$ 16.77
55	316247700		Nut,mounting ,(2)				$ 18.20
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
14A	316022500		Light/lamp, Indicator, 125 V			Immediately	$ 53.57
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316419701		Overlay,clock ,white ,w/mini Oven ,es510				$ 57.79
55A	316247800		Washer-lock,control Mtg				$ 18.20
F20	316418706		Clock/timer,electronic ,es510				$ 307.39
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316416921		Harness,mini Oven Cntl		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
