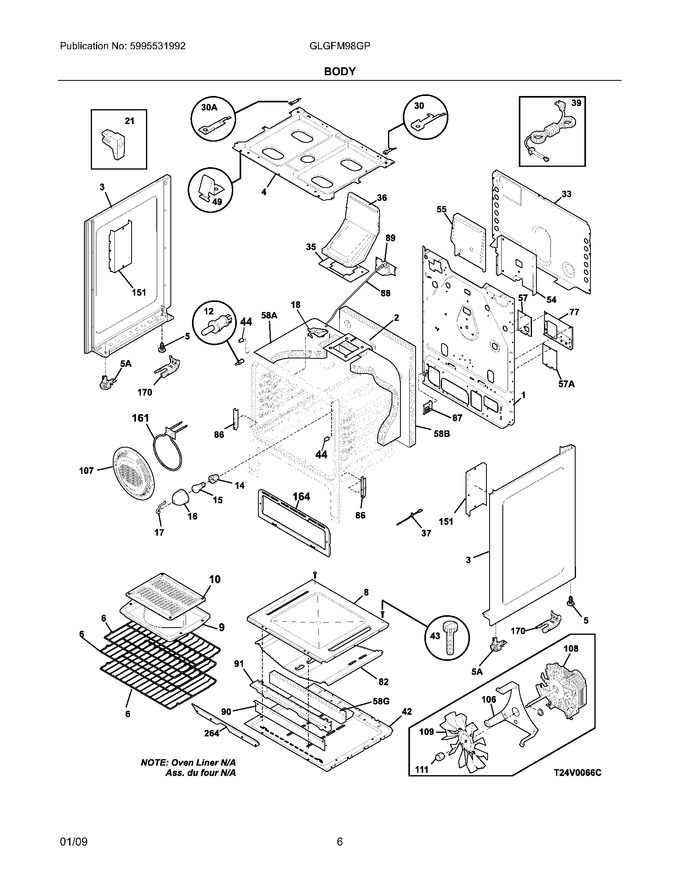

SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316401602		Back,main		Appelez-nous	-
2	316437100		Brace,oven Top				$ 31.90
3	316400142		Panel,bodyside ,white ,rh   (Replaces: 316400116)				$ 140.85
3	316400143		Panel,bodyside ,white ,lh   (Replaces: 316400117)				$ 140.85
4	316201403		Burner Box				$ 106.73
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316496201		Rack,oven ,(3)   (Replaces: 316496207)			Immediately	$ 103.48
8	316400603		Panel,oven Bottom			Immediately	$ 186.56
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
12	316445500		Switch,oven Light ,door Frame			Immediately	$ 54.74
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	316538904		Lamp,oven Light   (Replaces: 316538901)			Immediately	$ 20.48
16	5304524341		Lens,oven Light ,glass   (Replaces: 318406100)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
30	316217700		Bracket,hinge ,rh ,main Top				$ 13.42
33	316402500		Shield,rear Wall				$ 120.49
35	316542102		Gasket-flue   (Replaces: 316542100)				$ 12.13
36	316208901		Flue				$ 129.68
42	316400700		Shield,wool ,lower				$ 146.36
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Spacer,oven Door				$ 12.05
49	316234200		Clip,maintop Mtg ,(2)				$ 46.78
54	316404200		Shield,heat				$ 57.75
55	5304510473		Shield,flue   (Replaces: 316404800)				$ 23.39
57	316451100		Cover,access ,w/ Holes		Appelez-nous	-
77	316451200		Plate,mounting ,safety Valve		Appelez-nous	-
82	316400801		Shield,bake Burner				$ 164.57
86	316441300		Receptacle,hinge				$ 21.97
87	316451000		Bracket,harness ,mini Oven		Appelez-nous	-
88	316232702		Rod,auto Latch   (Replaces: 316232700)				$ 12.89
90	316401100		Shield,main Front		Appelez-nous	-
91	316401000		Shield,front ,burner		Appelez-nous	-
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026701		Cover,fan				$ 408.89
109	318398302		Blade,fan   (Replaces: 316136400)			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
151	316404600		Shield,bodyside				$ 49.30
164	316450301		Trim,front ,mini Oven		Appelez-nous	-
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
264	316404700		Bracket,air Dam		Appelez-nous	-
30A	316217701		Bracket,hinge ,lh ,main Top				$ 13.00
57A	316451101		Cover,access ,w/o Holes		Appelez-nous	-
58A	316403700		Insulation,oven Wrapper				$ 304.06
58B	316403600		Insulation,oven Back				$ 125.75
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407201)			Immediately	$ 15.08
F108	5304467897		Motor-convection   (Replaces: 316459100)				$ 231.90
F161	316211604		Element,convection Fan ,200 W				$ 450.50
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F39	5304534000		Cord,electric Power   (Replaces: 3131425)			Immediately	$ 33.37
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
FNI	316512520		Harness Wiring,main		Appelez-nous	-
NI	316432800		Clip,wire		Appelez-nous	-
NI	316539800		Retainer,wire				$ 14.41
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021132		Screw,8-18 X 11/16 ,black				$ 12.89
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316418901		Screw,trilobe ,10-32 X 5/16``				$ 14.18
