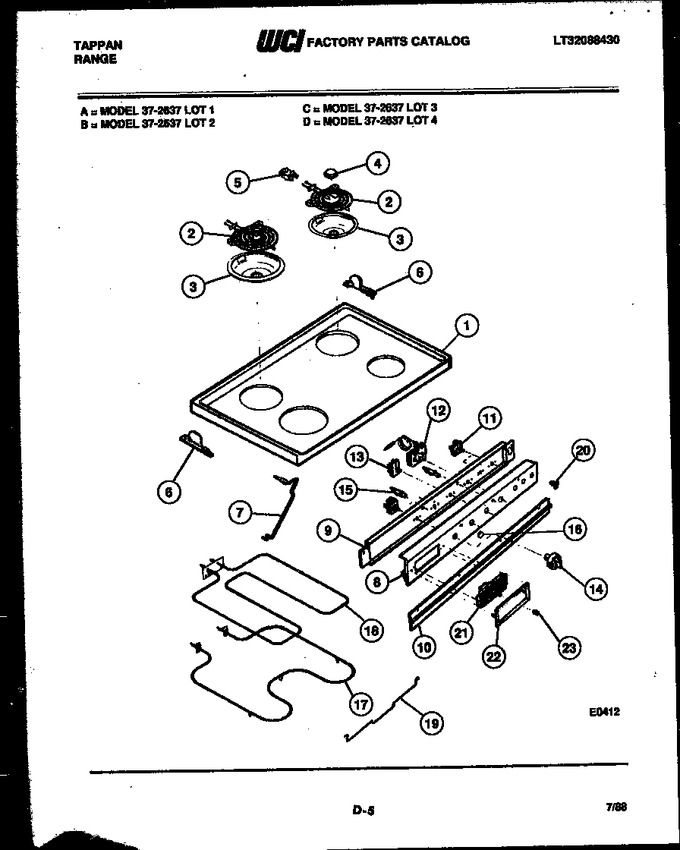

02 - Cooktop, Broiler And Backguard


03 - Body Parts


04 - Backguard


05 - Door Parts


06 - Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3051476		Main Top (chrome)		Appelez-nous	-
2	3051434		Element, Top, Large (2)		Appelez-nous	-
3	542T021P01		Pan, Element, Large (2)		Appelez-nous	-
4	445T006P01		Medallion (4)		Appelez-nous	-
5	3051402		Block, Terminal (4)		Appelez-nous	-
6	3131286		Brkt-hinge Lh		Appelez-nous	-
7	618T038P05		Top Support Rod (2)		Appelez-nous	-
8	3051208		Panel-manifold		Appelez-nous	-
9	3051508		Plate-inst. Mtg.		Appelez-nous	-
10	3051145		Extrusion-heat Shield		Appelez-nous	-
11	699T015P02		Switch, Top (4)		Appelez-nous	-
12	3051321		Thermostat		Appelez-nous	-
13	3051317		Switch-selector		Appelez-nous	-
14	3051173		Knob-control (4)		Appelez-nous	-
15	318T023P11		Light-indicator 125v (2)		Appelez-nous	-
16	342T014P01		Jewel-indicator (3)		Appelez-nous	-
17	3051388		Element, Oven Bake		Appelez-nous	-
18	3051140		Element-oven Broil		Appelez-nous	-
19	3051373		Supt-element		Appelez-nous	-
20	3051314		Switch, Oven Light		Appelez-nous	-
21	3131655		Clock		Appelez-nous	-
22	3051114		Bezel, Clock		Appelez-nous	-
23	358T201P01		Knob, Clock		Appelez-nous	-
14A	3051506		Knob-thermostat		Appelez-nous	-
14B	3051505		Knob-selector Switch		Appelez-nous	-
15A	318T023P12		Light-indicator 250v		Appelez-nous	-
19A	3051224		Retainer Lens (3) (non-illustrated)		Appelez-nous	-
2A	3051433		Element, Top, Small (2)		Appelez-nous	-
3A	542T021P02		Pan, Element, Small (2)		Appelez-nous	-
6A	3131287		Brkt-hinge Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
