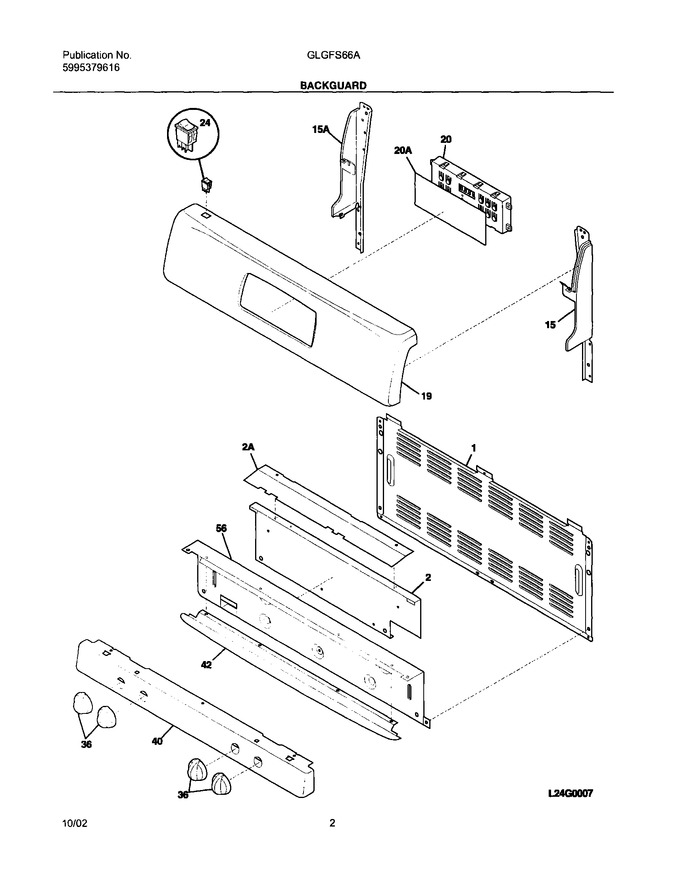

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316239900		Shield,backguard ,rear Wall				$ 93.03
2	316051600		Shield,backguard ,inner		Appelez-nous	-
15	316220218		Support,backguard ,bisque ,rh		Appelez-nous	-
19	316232667		Panel,backguard ,bisque		Appelez-nous	-
36	316220003		Knob,top Valve ,bisque ,(4)				$ 54.86
40	316204919		Panel-manifold,bisque		Appelez-nous	-
42	316236601		Trim,extrusion ,chrome		Appelez-nous	-
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 61.66
15A	316220219		Support,backguard ,bisque ,lh		Appelez-nous	-
20A	316220804		Overlay,clock ,bisque   (Replaces: 316220806)			Immediately	$ 42.53
2A	316235100		Shield-top Inner		Appelez-nous	-
F20	316207500		Clock/timer,electronic		Appelez-nous	-
F24	316246002		Switch,rocker ,bisque ,oven Light		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
