SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner

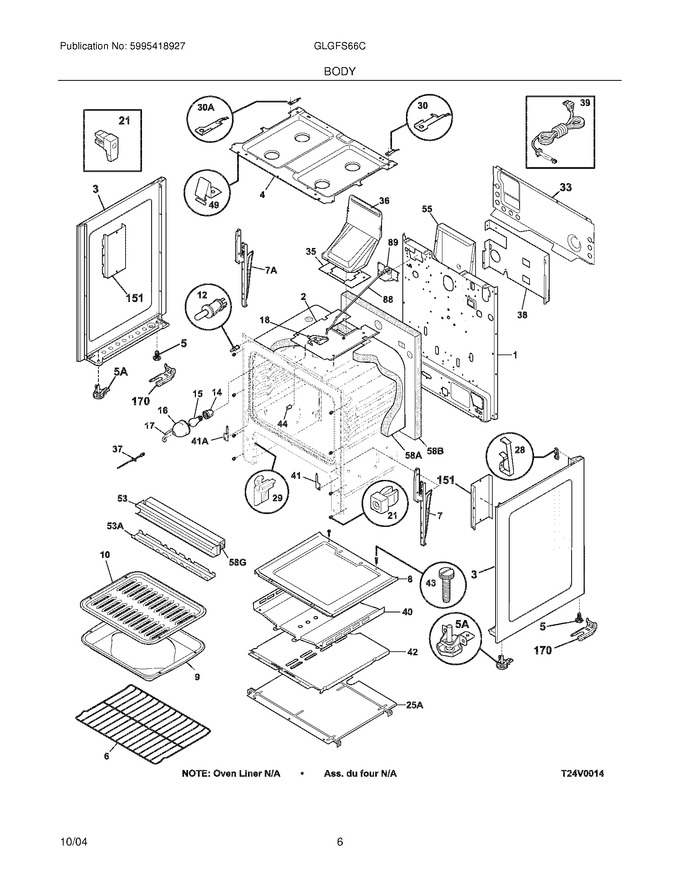

07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316029416		Panel,main Back		Appelez-nous	-
2	3131314		Shield-oven-top		Appelez-nous	-
3	316400143		Panel,bodyside ,white ,lh   (Replaces: 316400103)				$ 140.85
3	316400142		Panel,bodyside ,white ,rh   (Replaces: 316400102)				$ 140.85
4	316201403		Burner Box				$ 106.73
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316067902		Rack,oven			Immediately	$ 103.10
7	316216500		Hinge,oven Door ,rh				$ 80.33
8	5303300701		Panel-oven Bottom		Appelez-nous	-
9	316081900		Pan,broiler				$ 65.89
10	316082000		Insert-broiler Pan				$ 68.85
14	316116400		Receptacle,oven Light			Immediately	$ 56.10
15	40A15		Bulb/lamp,oven Light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Glass - Oven Light Lens   (Replaces: 08011086)			Immediately	$ 14.18
17	316087500		Retainer,lens				$ 56.70
21	316408000		Clip,bodyside				$ 18.20
28	3011813		Clip,wire ,bodyside				$ 14.79
29	3051162		Glide-drawer, Front			Immediately	$ 8.22
30	316217700		Bracket,hinge ,rh ,main Top				$ 13.42
33	316121001		Shield,lower Wire ,rear Wall		Appelez-nous	-
35	316542102		Gasket,flue   (Replaces: 316116600)				$ 12.13
36	316208901		Flue				$ 129.68
38	316051700		Shield-heat		Appelez-nous	-
39	5304534377		Cord-electric Power   (Replaces: 3202006)				$ 26.85
40	3200836		Shield-heat Baffle		Appelez-nous	-
41	316233400		Cover,hinge Cutout ,rh				$ 67.99
42	5303288578		Shield-bake Burner				$ 156.19
43	316282700		Screw,8-18 X 1.438 ,oven Bottom   (Replaces: 3131732)				$ 9.93
44	316246500		Spacer,oven Door				$ 34.39
49	316234200		Clip,maintop Mtg ,(2)				$ 46.78
53	5303288579		Shield,main Front		Appelez-nous	-
55	5304510473		Shield,flue   (Replaces: 316404800)				$ 23.39
88	316232702		Rod,auto Latch   (Replaces: 316232700)				$ 12.89
151	316404600		Shield,bodyside				$ 49.30
170	316112500		Template,anti-tip				$ 3.55
170	316112005		Anti-tip Kit,w/bracket,screw   (Replaces: 5303935180)			Immediately	$ 18.91
170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
25A	5303288580		Shield-heat, Lower		Appelez-nous	-
30A	316217701		Bracket,hinge ,lh ,main Top				$ 13.00
41A	316233500		Cover-hinge,cutout ,lh				$ 16.96
53A	08067992		Shield,insulation ,front Frame		Appelez-nous	-
58A	316047705		Insulation, Oven Wrapper		Appelez-nous	-
58B	316218304		Insulation,oven Back				$ 72.66
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316407200)			Immediately	$ 15.08
7A	316566205		Hinge,oven Door ,lh   (Replaces: 316216505)				$ 97.07
F12	316209901		Switch,oven Light/door				$ 58.17
F18	316405800		Latch,oven Door   (Replaces: 316213900)			Immediately	$ 56.74
F37	316233903		Probe-oven Temp   (Replaces: 316233900)			Immediately	$ 57.29
F89	5304528973		Motor,latch/lock   (Replaces: 316415400)			Immediately	$ 52.34
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 10.02
NI	316064600		Support,oven Bottom				$ 18.95
NI	316253410		Wiring Harness,main				$ 241.19
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303280311		Screw,wafer Hd Sq Dr ,10-32 X 0.312				$ 6.62
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46

    View Diagram in Separate Window       Print Part List
