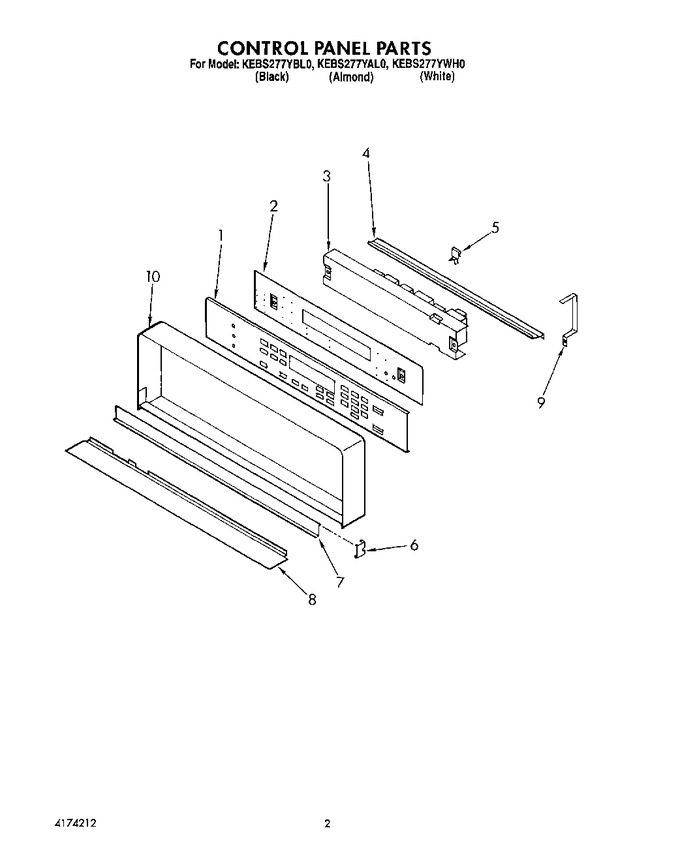

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3181783 | Membrane, Switch (black) |
|
- | |||||
| 1 | 3181784 | Membrane, Switch (white) |
|
- | |||||
| 1 | 3181785 | Membrane, Switch (almond) |
|
- | |||||
| 2 | 3181889 | Bracket, Mounting Switch Membrane |
|
- | |||||
| 3 | 3179117 | Screw (2) |
|
- | |||||
| 3 | 3181705CP | Microcomputer (Replaces: 3181705) |
|
- | |||||
| 4 | 3182939 | Screw |
|
- | |||||
| 4 | 3183705 | Retainer, Bracket |
|
- | |||||
| 5 | 3182985 | Clip, (3) Retainer |
|
- | |||||
| 6 | 3182162 | Hinge, Vent Door |
|
- | |||||
| 7 | 3182157 | Door, Latch Handle (almond) |
|
- | |||||
| 7 | 3182154 | Door, Latch Handle (white) |
|
- | |||||
| 7 | 3179847 | Door, Latch Handle (screw (2)) |
|
- | |||||
| 7 | 3182151 | Door, Latch Handle (black) |
|
- | |||||
| 8 | WP90767 | Screw (3) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 8 | 3183702 | Trim, Panel |
|
- | |||||
| 9 | 3184321 | Bracket (2) |
|
- | |||||
| 9 | 3182939 | Screw (2) |
|
- | |||||
| 10 | 3182148 | Frame, Control Panel |
|
- | |||||
| 242829 | 12 Ga. 150~c Rating (red) |
|
- | ||||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 285366 | Paint, Spray (13 Oz.) (platinum) |
|
- | ||||||
| 285006 | Spray Paint (black) 13 Oz. (Replaces: 830864) |
|
Immediately | $ 51.34 | |||||
| 350942 | Primer |
|
$ 80.69 | ||||||
| 350941 | Leveler (primer) |
|
- | ||||||
| 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | ||||||
| 978883 | Almond |
|
- | ||||||
| 261891 | Harvest Gold |
|
- | ||||||
| 285367 | Enamal, Toast (1 Qt. Uncut) |
|
- | ||||||
| 285368 | Platinum |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 16.12 | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 832985 | Rack, Cooking (bi-level) |
|
- | ||||||
| 350956 | Paint, Spray 13 Oz. (almond) |
|
$ 46.30 | ||||||
| LIT4174212 | Repair Parts List |
|
- | ||||||
| LIT3182131 | Tech Sheet |
|
- | ||||||
| LIT3183659 | Installation Instructions |
|
- | ||||||
| LIT3182135 | Use & Care Guide |
|
- | ||||||
| LIT3150693 | Cookbook |
|
- | ||||||
| LIT3183790 | Video, T/c Ovens |
|
- | ||||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| LIT3183987 | Guide, Auto Set |
|
- | ||||||
| 3171507 | Mounting Hardware |
|
- | ||||||
| 350806 | 18 Ga. 80~c Rating (yellow) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242826 | 14 Ga. 150~c Rating (white) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242832 | 14 Ga. 200~c Rating (yellow) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| DD81-03523A | Paint, Touch-up 1/2 Oz. (harvest Gold) (Replaces: 72110) |
|
$ 124.07 | ||||||
| 72112 | Paint, (touch-up 1/2 Oz.) (toast) |
|
- | ||||||
| DD81-03496A | Paint, Touch-up 1/2 Oz. (platinum) (Replaces: 72113) |
|
$ 105.40 | ||||||
| WP261869 | Citrine White (Replaces: 261869) |
|
$ 23.85 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 34.39 | |||||
| 261890 | Harvest Gold |
|
- | ||||||
| 285365 | Toast |
|
- |
