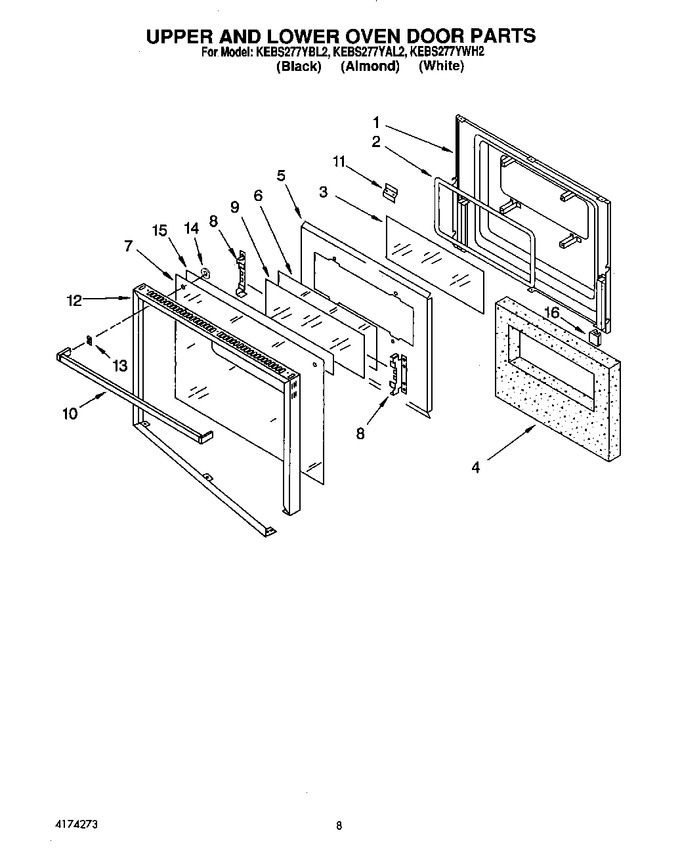

05 - Upper And Lower Oven Door


06 - Internal Oven


07 - Latch And Vent


08 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3185497		Liner, Door		Appelez-nous	-
2	3185462		Gasket, Window		Appelez-nous	-
3	3185457		Glass, Clear		Appelez-nous	-
4	3185460		Insulation, Door		Appelez-nous	-
5	4173601		Screw (4)		Appelez-nous	-
5	3185437		Retainer, Insulation		Appelez-nous	-
6	3185458		Glass, Reflective		Appelez-nous	-
7	3185474		Glass, Door (black)		Appelez-nous	-
7	3185478		Glass, Door (almond)		Appelez-nous	-
7	3185476		Glass, Door (white)		Appelez-nous	-
8	3185439		Retainer, Glass		Appelez-nous	-
9	3185459		Glass, Clear		Appelez-nous	-
10	3182165		Handle, Door (black)		Appelez-nous	-
10	3182168		Handle, Door (white)		Appelez-nous	-
10	3182171		Handle, Door (almond Model)		Appelez-nous	-
11	3185438		Latch, Strike		Appelez-nous	-
12	3181402		Frame, Door		Appelez-nous	-
13	3182138		Spacer, Handle		Appelez-nous	-
14	3185456		Bushing, Handle		Appelez-nous	-
15	3185470		Foil, Adhesive		Appelez-nous	-
16	3181701		Bumper, Door Glass		Appelez-nous	-
