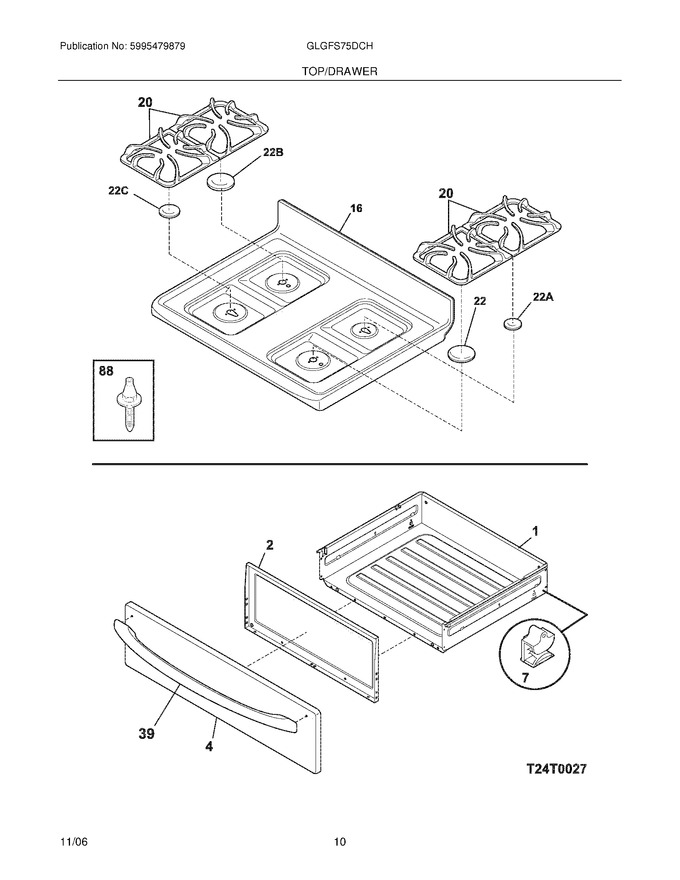

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Backguard
05 - Burner
07 - Body
09 - Top/drawer
11 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316408706 | Drawer,utility (Replaces: 316408703) |
|
Immediately | $ 110.61 | ||||
| 2 | 316402201 | Shield,oven Top |
|
- | |||||
| 3 | 316400145 | Panel,bodyside ,black ,lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 3 | 316400144 | Panel,bodyside ,black ,rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 4 | 316201403 | Burner Box |
|
$ 106.73 | |||||
| 5 | 316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316404500 | Rack,oven |
|
$ 124.95 | |||||
| 8 | 316400603 | Panel,oven Bottom |
|
Immediately | $ 186.56 | ||||
| 12 | 316445501 | Switch,oven Light ,door Frame |
|
$ 90.01 | |||||
| 14 | 316116400 | Receptacle,oven Light |
|
Immediately | $ 56.10 | ||||
| 15 | 40A15 | Bulb/lamp,light (Replaces: 5303013071) |
|
Immediately | $ 1.98 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 08011086) |
|
Immediately | $ 15.61 | ||||
| 17 | 316087500 | Retainer,lens |
|
$ 56.70 | |||||
| 21 | 316408000 | Clip,bodyside |
|
$ 18.20 | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 316407201) |
|
Immediately | $ 15.08 | ||||
| F18 | 316405800 | Latch Assembly,oven Door |
|
Immediately | $ 56.74 | ||||
| NI | 316437100 | Brace,oven Top |
|
$ 31.90 | |||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 |
