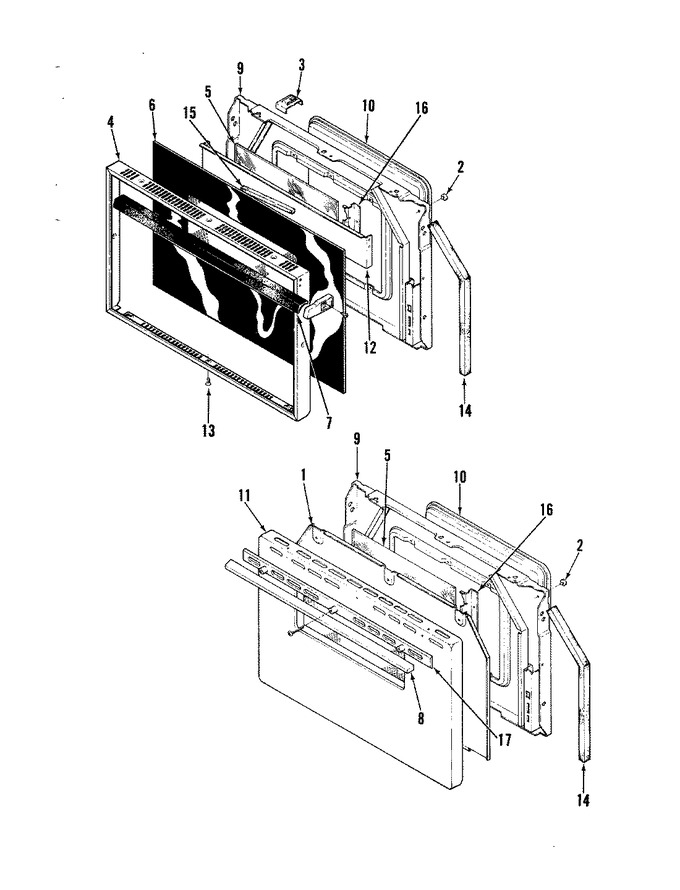

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
1	2410F011-51		Pad, Inner Ov Dr	01	Appelez-nous	-
2	8002P015-60		Catch, Dr Lk	01	Appelez-nous	-
2	8003P002-60		Bumper Door (round)	01	Appelez-nous	-
3	7112P034-60		Clip, Door	01	Appelez-nous	-
4	7706E007		Frame, Ovn Door	01	Appelez-nous	-
5	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
6	7902P275-60		Glass, Door	01	Appelez-nous	-
7	7701P047-60		Handle, Door	01	Appelez-nous	-
8	7728P012-60		Insert, Oven Door Handle	01	Appelez-nous	-
8	7701P014-71		Handle, Door White	01	Appelez-nous	-
9	2402W128-15		Lining	14	Appelez-nous	-
9	2402W125-12		Lining Assy, Ov Dr	01	Appelez-nous	-
10	2410W028-12		Pad Assy, O.d. Solid	01	Appelez-nous	-
11	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
11	2416F019-71		Panel, Svc Dr White	01	Appelez-nous	-
12	3804F051-60		Retainer, Glass	01	Appelez-nous	-
13	1986258		Screw, Special	01	Appelez-nous	-
14	1726250		Seal	01	Appelez-nous	-
15	1726252		Seal	01	Appelez-nous	-
15	WP7803P058-60		Spring   (Replaces: 7803P002-60)	01			$ 16.55
15	3420A033-34		Stop, Oven Door	01	Appelez-nous	-
16	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
17	W10124350		Not Required Part Or See Note	01	Appelez-nous	-
