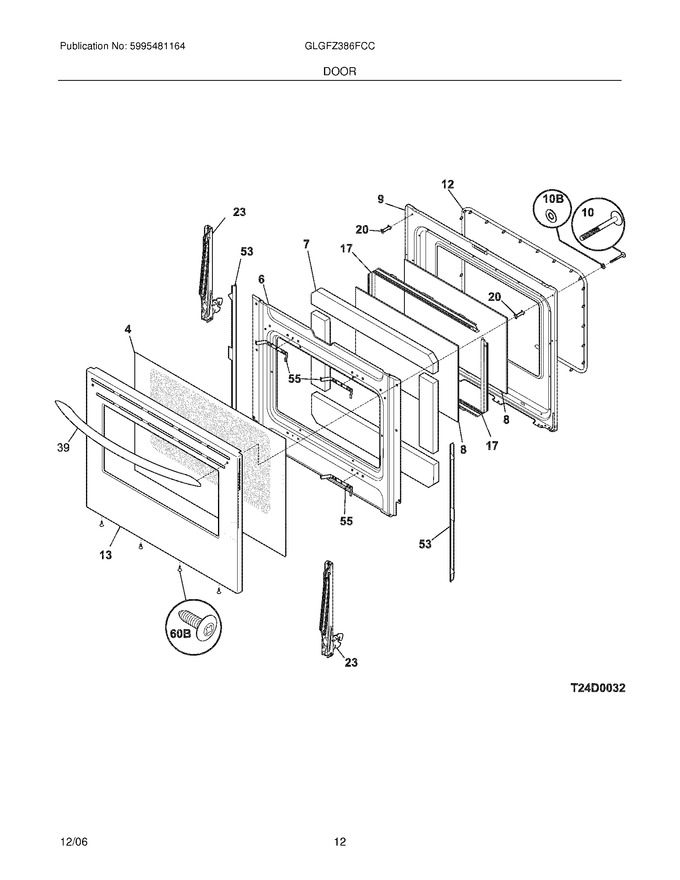

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	316452701		Glass,oven Door ,black ,outer				$ 96.50
6	316402307		Shield,wool		Appelez-nous	-
7	316403900		Insulation,oven Door			Immediately	$ 72.30
8	5304503232		Glass,oven Door ,heat Barrier   (Replaces: 316117500)				$ 116.95
9	316423801		Liner,oven Door				$ 128.63
10	316001002		Screw,wafer Head ,10-24 X 1.81 ,(2) ,handle Mtg.				$ 14.89
12	5304498835		Seal,oven Door   (Replaces: 316403101)			Immediately	$ 88.74
13	316604011		Panel,oven Door ,stainless   (Replaces: 316407811)				$ 130.63
17	5304504811		Spacer,door Glass ,(2)   (Replaces: 316402403)			Immediately	$ 25.02
20	316408600		Spacer,door Handle ,(2)				$ 16.45
23	316456306		Hinge,oven Door ,(2)				$ 56.96
39	316246105		Handle,door/drawer ,stainless   (Replaces: 316246100)				$ 145.31
53	5304532043		Shield,filler ,door ,(2)   (Replaces: 316408101)				$ 37.41
55	316408300		Bracket,glass Support ,(4)				$ 21.23
10B	316008401		Washer,3/4 Od X 1/4 Id ,steel				$ 11.34
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316433603		Label,anti-tip				$ 3.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5			Immediately	$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46

    View Diagram in Separate Window       Print Part List
