SELECT A DIAGRAM

01 - Cover


03 - Upper Cabinet/drum Heater


05 - Motor/blower/belt


07 - Control Panel


09 - Lower Cabinet/top

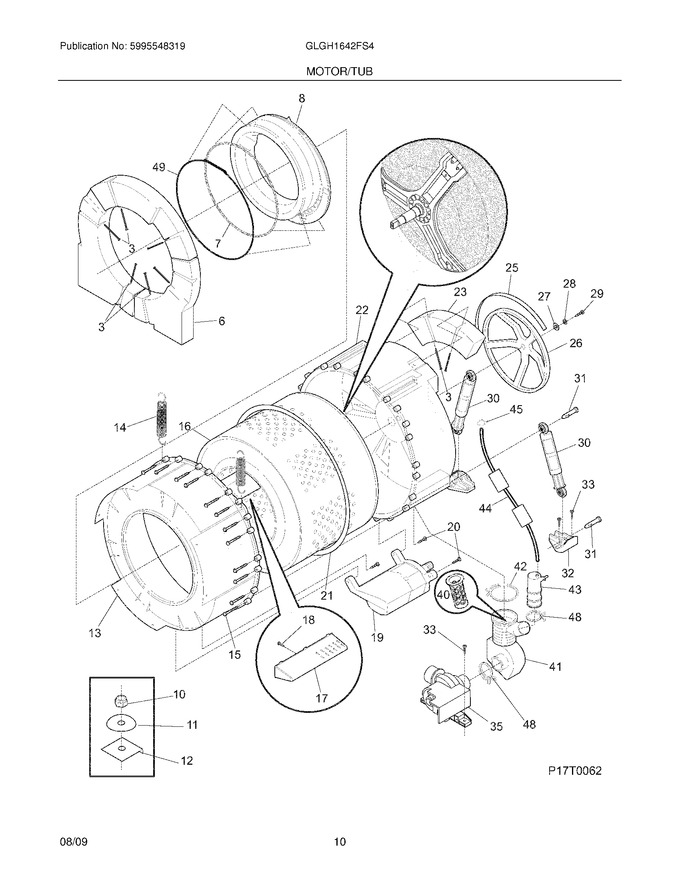

11 - Motor/tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	131793302		Bolt,carriage ,1/4-20 X 4.00				$ 28.97
6	131975300		Counterweight,one Piece				$ 200.39
7	131277300		Spring,boot Retainer				$ 48.39
8	5303937187		Bellows,door Boot   (Replaces: 134177600)			Immediately	$ 134.13
10	131304700		Nut,hex ,1/4-20 Unc-2b ,(2)				$ 8.14
11	131276900		Washer,bellville ,spring Steel				$ 21.69
12	131793500		Plate,counterweight				$ 11.76
13	131618600		Shell,outer Tub ,front				$ 434.48
14	134144700		Spring Assy,suspension ,w/sleeves			Immediately	$ 60.25
15	131303900		Screw,hex Washer Head ,1/4-10a X 2.165				$ 15.60
16	131618500		Drum Assy,spin Basket				$ 787.77
17	131274600		Vane			Immediately	$ 67.96
18	131302800		Screw,10-16ab X 0.375			Immediately	$ 26.58
20	131303500		Screw,12-14ab X 1.50 ,motor Mtg.				$ 12.05
21	134146100		O-ring-tub			Immediately	$ 71.58
22	131525500		Shell,outer Tub ,rear ,with Bearing   (Replaces: 131462800)			Immediately	$ 634.00
23	134125900		Counterweight,drum Rear				$ 78.12
25	134051000		Belt,drive ,6-rib			Immediately	$ 38.98
26	131883400		Pulley,drum Drive ,large ,rear				$ 205.54
27	131304400		Washer,0.41 X 1.50 ,0.12 Thick				$ 32.52
28	131304500		Washer-lock,3/8				$ 12.53
29	131303700		Screw,pulley Mtg. ,m10 X 0.92 ,metric				$ 15.90
30	5304485917		Shock Absorber,air ,stabilizer   (Replaces: 134999010)			Immediately	$ 45.44
31	131268300		Pin,shock Mtg.			Immediately	$ 12.76
32	131268100		Bracket,shock Mtg.				$ 59.90
33	134532200		Screw,10-16ab X 0.500				$ 7.14
40	134885800		Filter,pump				$ 7.25
41	131784700		Hose-coin Trap-tub To Pump			Immediately	$ 116.37
42	134737300		Clamp,hose				$ 20.13
43	131277500		Chamber-air				$ 51.41
44	131789900		Tube Assy,air Pressure ,w/air Chamber				$ 66.15
45	131306202		Clamp,hose				$ 11.63
48	5304536802		Clamp,hose ,wire   (Replaces: 131306234)			Immediately	$ 4.01
49	134266500		Clamp,bellows/boot ,0.059 Od Wire ,spring Held				$ 54.41
35No.	137108000		Pump,drain   (Replaces: 137151900)			Immediately	$ 214.71
F19	134869400		Motor				$ 347.40
NI	131560000		Sleeve,protector ,lwr Spring Hook				$ 13.40
NI	131592200		Sleeve,protector ,upr Spring Hook				$ 36.01
NI	134815100		Energy Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
