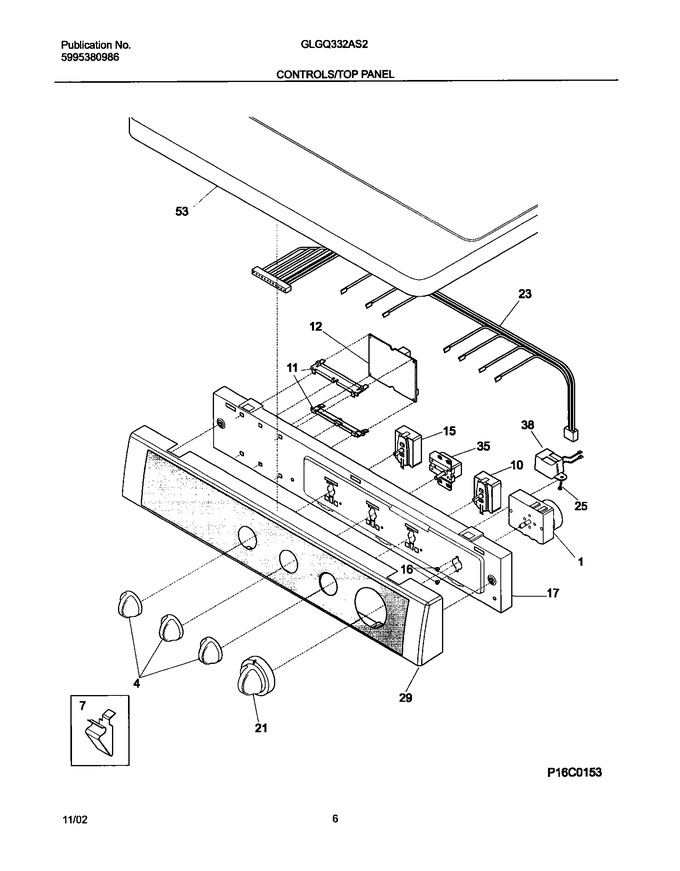

07 - Controls/top Panel
09 - Motor
11 - Burner
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131789200 | Timer,dryer |
|
Immediately | $ 234.23 | ||||
| 4 | 134042800 | Knob,rotary ,white |
|
Immediately | $ 50.61 | ||||
| 7 | 3205821 | Clip,top-to-front |
|
Immediately | $ 35.44 | ||||
| 11 | 131587400 | Bracket,pc Board Mtg. ,(2) |
|
$ 44.40 | |||||
| 16 | 134034300 | Screw,pan Hd Phillips ,8-18b X 0.250 |
|
- | |||||
| 17 | 134064501 | Bracket,control Mtg. |
|
$ 76.13 | |||||
| 21 | 131873500 | Knob,timer ,white/gray (Replaces: 134042600) |
|
Immediately | $ 49.62 | ||||
| 23 | 134063900 | Wiring Harness,control |
|
- | |||||
| 25 | 5303015671 | Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point |
|
- | |||||
| 29 | 131666942 | Console,frame ,white ,w/trim & Tape |
|
- | |||||
| 53 | 134086812 | Panel,dryer Top ,white ,stackable |
|
$ 336.42 | |||||
| F10 | 134398300 | Switch,start ,turn Type (Replaces: 131447800) |
|
Immediately | $ 77.82 | ||||
| F12 | 131620200 | Control Board,moisture Sensor |
|
- | |||||
| F15 | 134046801 | Switch,temperature |
|
$ 108.05 | |||||
| F35 | 131243200 | Switch,xrinse/temp/bzr ,2 Position ,(2) |
|
- | |||||
| F38 | 5303210285 | Buzzer |
|
$ 65.78 | |||||
| NI | 134006600 | Wiring Harness,main |
|
$ 277.78 |
