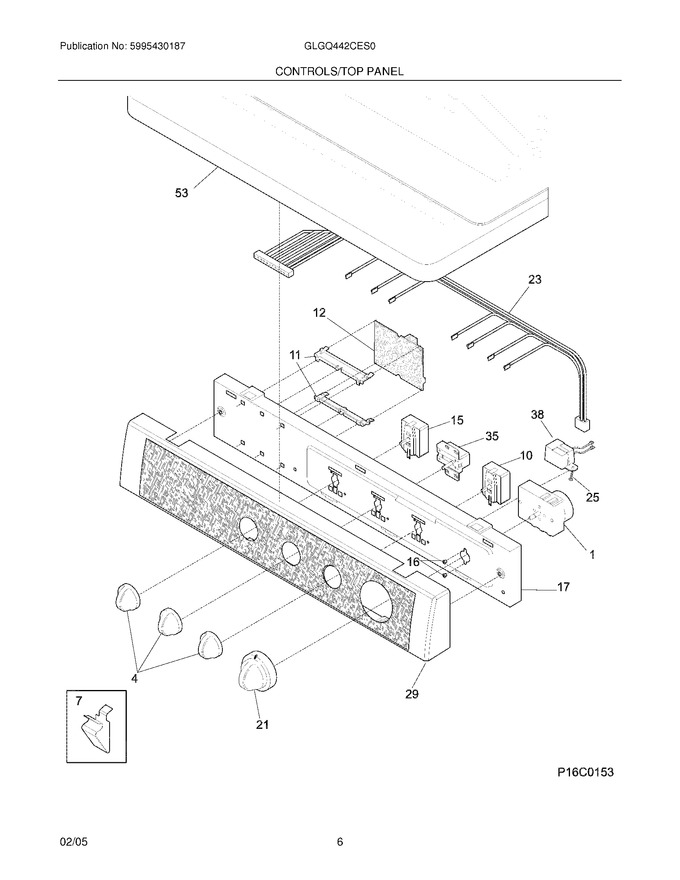

07 - Controls/top Panel


09 - Motor


11 - Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131717300		Timer-dryer				$ 285.92
4	134042800		Knob,rotary ,white			Immediately	$ 50.61
7	3205821		Clip,top-to-front			Immediately	$ 35.44
10	134398300		Switch,start ,turn Type			Immediately	$ 77.82
11	131587400		Bracket,pc Board Mtg. ,(2)				$ 44.40
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	134064501		Bracket,control Mtg.				$ 76.13
21	131873500		Knob,timer ,white/gray   (Replaces: 134042600)			Immediately	$ 49.62
23	134491800		Wiring Harness, Controls		Appelez-nous	-
25	5303015671		Screw,hex Washer Head ,8-18 X 0 .375 ,cup Point		Appelez-nous	-
29	131666976		Console,frame ,w/trim & Tape		Appelez-nous	-
53	134086812		Panel,dryer Top ,white ,stackable				$ 336.42
F12	134216300		Control Board,moisture Sensor				$ 67.62
F15	134398600		Switch,temperature ,4 Posn Rotary				$ 33.46
F35	131243200		Switch,2 Position		Appelez-nous	-
F38	5303210285		Buzzer				$ 65.78
NI	134296400		Instructions,installation		Appelez-nous	-
NI	134006600		Wiring Harness,main				$ 277.78
NI	134101400		Terminal Block,main			Immediately	$ 55.99
