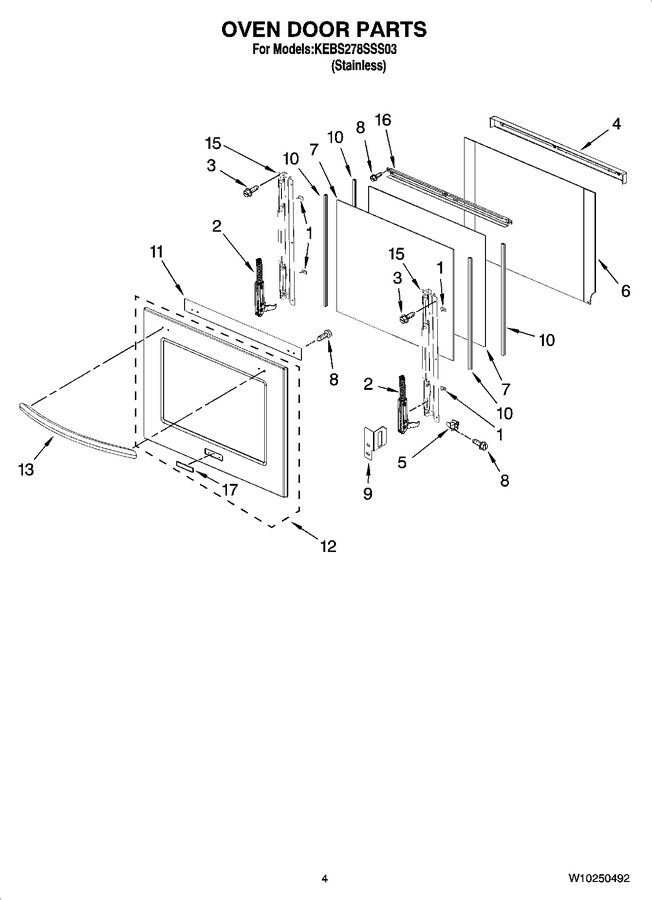

01 - Oven Parts


02 - Control Panel Parts


03 - Oven Door Parts


04 - Internal Oven Parts


05 - Top Venting Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8304522		Bumper, Door				$ 31.91
2	W10174288		Hinge, Door (2)				$ 47.60
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
4	8304580BL		Vent, Door Top				$ 81.93
5	8304378		Bracket, Door (left)				$ 83.98
5	8304377		Bracket, Door (right)				$ 40.81
6	8303738BL		Door Liner		Appelez-nous	-
7	8303732		Glass, Inner				$ 110.51
8	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
9	W10137044		Cover, Hinge (right)				$ 38.61
9	W10137043		Cover, Hinge (left)				$ 39.01
10	W10754409		Seal   (Replaces: 8304523)				$ 66.83
11	8304361BL		Bracket, Handle				$ 55.63
12	W10237353		Door Glass, Assembly Upper No Badge				$ 242.48
12	W10237352		Door Glass, Assembly Lower Includes 17		Appelez-nous	-
13	8303775SS		Door Handle		Appelez-nous	-
15	8303745BL		Frame, Door Side (2)				$ 70.23
16	8303754		Door, Top Bracket				$ 53.80
17	8304603SS		Badge				$ 51.11
