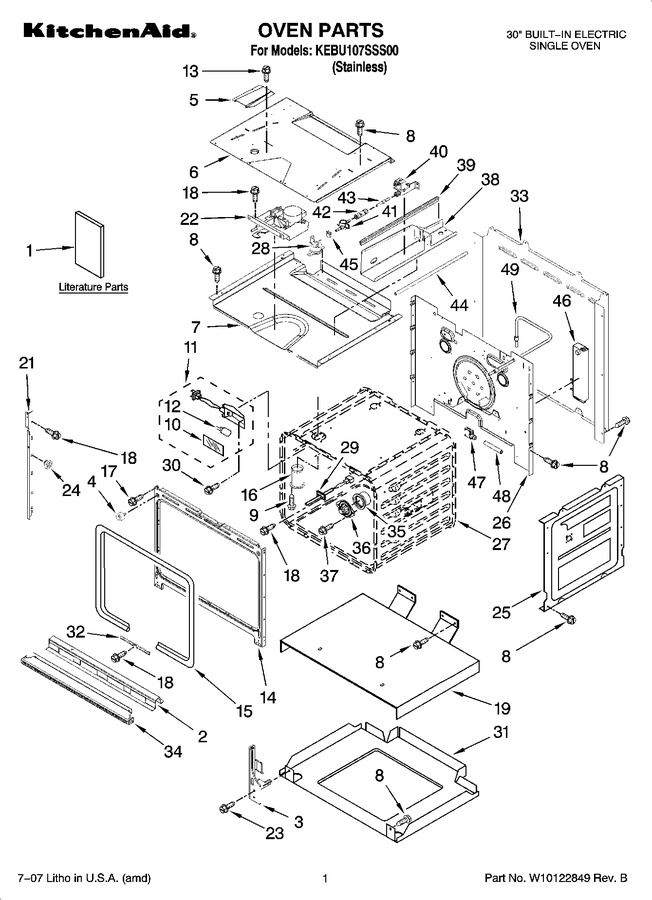

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8304535 | Installation Instructions |
|
- | |||||
| 1 | 8304531 | Use & Care Guide |
|
- | |||||
| 1 | 8304549 | Tech Sheet (english) |
|
- | |||||
| 1 | 8304550 | Tech Sheet (french) |
|
- | |||||
| 1 | 8304533 | Easy Set Guide |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | 8304420 | Bracket, Base |
|
- | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 4 | W10105790 | Bumper, Door (2) |
|
$ 6.35 | |||||
| 5 | 8303829 | Exhaust,vent Slope |
|
$ 7.99 | |||||
| 6 | 8304618 | Divider, Vent |
|
- | |||||
| 7 | 8303511 | Top Chassis |
|
- | |||||
| 8 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 9 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 10 | 4452163 | Lens, Light |
|
$ 12.33 | |||||
| 11 | WP4448972 | Oven Light, Assembly (Replaces: 4448972) |
|
$ 98.46 | |||||
| 12 | WP4452164 | Bulb, Light (Replaces: 4452164) |
|
Immediately | $ 60.59 | ||||
| 13 | WP3400832 | Screw (Replaces: 3400832) |
|
Immediately | $ 6.98 | ||||
| 14 | 8304627 | Frame, Front |
|
- | |||||
| 15 | WP8304493 | Gasket, Door (Replaces: 8304493) |
|
$ 160.62 | |||||
| 16 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 17 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 18 | W10142289 | Screw (Replaces: 3400893) |
|
$ 8.24 | |||||
| 19 | 4451478 | Support, Insulation |
|
$ 54.10 | |||||
| 21 | 8303676BL | Mounting Rail, Side Left (black) |
|
$ 38.91 | |||||
| 21 | 8303675BL | Mounting Rail, Side Right (black) |
|
$ 38.91 | |||||
| 22 | W11029221 | Latch, Mortorized (Replaces: 8303692) |
|
Immediately | $ 280.85 | ||||
| 23 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.47 | |||||
| 24 | WP4448444 | Mounting Grommet, Rail (6) (Replaces: 4448444) |
|
$ 6.73 | |||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 129.16 | |||||
| 26 | W10132674 | Back, Chassis |
|
- | |||||
| 28 | WP8304452 | Thermal Fuse (Replaces: 8304452) |
|
Immediately | $ 104.76 | ||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 86.25 | ||||
| 30 | 4449748 | Screw |
|
$ 12.20 | |||||
| 31 | 8303516 | Base, Chassis |
|
- | |||||
| 32 | W10139288 | Retainer, Gasket |
|
- | |||||
| 33 | 8303517 | Cover, Back |
|
$ 73.96 | |||||
| 34 | 8303705SS | Trim, Bottom Vent |
|
- | |||||
| 35 | 9758597 | Orifice, Boiler Slip Fit |
|
$ 42.82 | |||||
| 36 | 8304495BU | Cover, Boiler Orifice |
|
- | |||||
| 37 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 6.80 | |||||
| 38 | 8304598 | Enclosure |
|
- | |||||
| 39 | W10077010 | Gasket, Enclosure |
|
- | |||||
| 40 | W10111418 | Valve, Solenoid |
|
$ 151.74 | |||||
| 41 | WPW10076760 | Sensor, Conductivity Slip Fit (Replaces: W10076760) |
|
$ 189.12 | |||||
| 42 | WP2314271 | Valve, Check (Replaces: 2314271) |
|
Immediately | $ 120.84 | ||||
| 43 | W10140567 | Tubing |
|
- | |||||
| 44 | W10076910 | Tubing |
|
- | |||||
| 45 | WP489503 | Clamp, Crimp (Replaces: 9761146) |
|
Immediately | $ 9.68 | ||||
| 46 | 8186352 | Boiler Assembly (Replaces: 9758598) |
|
$ 296.08 | |||||
| 47 | W10194453 | Switch, Pressure (Replaces: W10118757) |
|
$ 254.00 | |||||
| 48 | WPW10076930 | Hose (includes Clamp) (Replaces: W10076930) |
|
$ 23.82 | |||||
| 49 | W10141379 | Insulation, Back |
|
- | |||||
| 49 | W10134248 | Tubing |
|
- | |||||
| 49 | 8303965 | Insulation, Wrap |
|
$ 54.21 |
