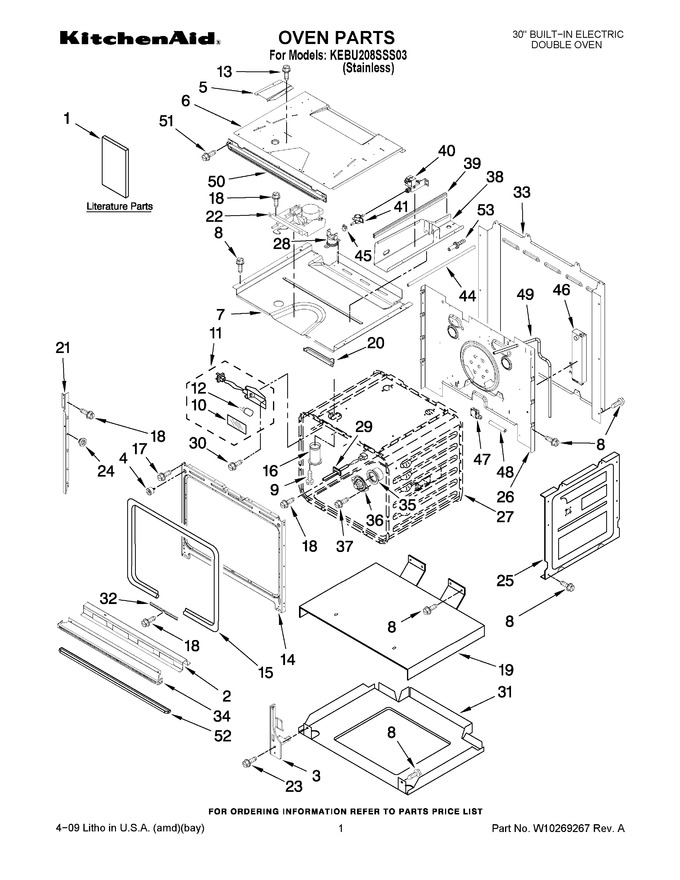

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	W10140563		Installation Instructions		Appelez-nous	-
1	W10162200		Use & Care Guide		Appelez-nous	-
1	8304551		Tech Sheet (english)		Appelez-nous	-
1	8304552		Tech Sheet (french)		Appelez-nous	-
1	W10138788		Easy Set Guide		Appelez-nous	-
2	W10153090		Bracket, Base				$ 35.56
3	WP4455605		Hinge Receiver (left)   (Replaces: 4455605)			Immediately	$ 103.82
3	WP4455606		Hinge Receiver (right)   (Replaces: 4455606)			Immediately	$ 107.47
4	W10105790		Bumper, Door (2)				$ 6.35
5	8303829		Exhaust,vent Slope				$ 7.99
6	W10181196		Divider, Vent		Appelez-nous	-
7	W10204470		Top Chassis		Appelez-nous	-
8	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.47
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 12.62
10	4452163		Lens, Light				$ 12.33
11	WP4448972		Oven Light, Assembly   (Replaces: 4448972)				$ 98.46
12	WP4452164		Bulb, Light   (Replaces: 4452164)			Immediately	$ 60.59
13	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 6.98
14	W10115861		Frame, Front		Appelez-nous	-
15	WP8304493		Gasket, Door   (Replaces: 8304493)				$ 160.62
16	W10861715		Tube, Vent   (Replaces: 4452158)				$ 104.97
17	WP4449040		Screw   (Replaces: 4449040)				$ 6.78
18	W10142289		Screw   (Replaces: 3400893)				$ 8.24
19	4451478		Support, Insulation				$ 54.10
20	W10169348		Bracket,thermostat				$ 8.32
21	8303677BL		Mounting Rail, Side (right)		Appelez-nous	-
21	8303678BL		Mounting Rail, Side (left)		Appelez-nous	-
22	W11029221		Latch, Mortorized   (Replaces: W10195935)			Immediately	$ 280.85
23	WP4449743		Screw   (Replaces: 4449743)				$ 6.47
24	WP4448444		Mounting Grommet, Rail (6)   (Replaces: 4448444)				$ 6.73
25	W10782197		Side, Chassis   (Replaces: 4455641)				$ 129.16
26	W10153104		Back, Chassis		Appelez-nous	-
28	WP8304452		Thermal Fuse   (Replaces: 8304452)			Immediately	$ 104.76
29	WPW10131825		Sensor   (Replaces: W10131825)			Immediately	$ 86.25
30	4449748		Screw				$ 12.20
31	8303516		Base, Chassis		Appelez-nous	-
32	W10153361		Retainer, Gasket				$ 64.80
33	8303517		Cover, Back				$ 73.96
34	W10237368		Trim, Bottom Vent				$ 68.58
35	9758597		Orifice, Boiler Slip Fit				$ 42.82
36	W10153098		Cover, Boiler Orifice				$ 36.81
37	WP4449154		Screw   (Replaces: 4449154)				$ 6.80
38	W10150077		Enclosure		Appelez-nous	-
39	W10077010		Gasket, Enclosure		Appelez-nous	-
40	W10140897		Valve, Solenoid				$ 311.99
41	WPW10076760		Sensor, Conductivity Slip Fit   (Replaces: W10076760)				$ 189.12
44	W10051580		Tubing (lower, Clear)				$ 133.63
44	W10119541		Tubing (upper, Yellow)				$ 138.52
45	WP489503		Clamp, Crimp (6)   (Replaces: 9761146)			Immediately	$ 9.68
46	8186352		Boiler Assembly (2)   (Replaces: 9758598)				$ 296.08
47	W10194453		Switch, Pressure (2)				$ 254.00
48	WPW10076930		Hose (2) (includes Clamp)   (Replaces: W10076930)				$ 23.82
49	W10142627		Tubing				$ 65.78
50	W10133473		Center, Vent				$ 65.86
51	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
52	W10133474		Basin, Bottom Vent				$ 68.87
53	W10076950		Stem, Tube To Clear Hose		Appelez-nous	-
NI	8303965		Insulation, Wrap				$ 54.21
NI	W10141379		Insulation, Back		Appelez-nous	-
