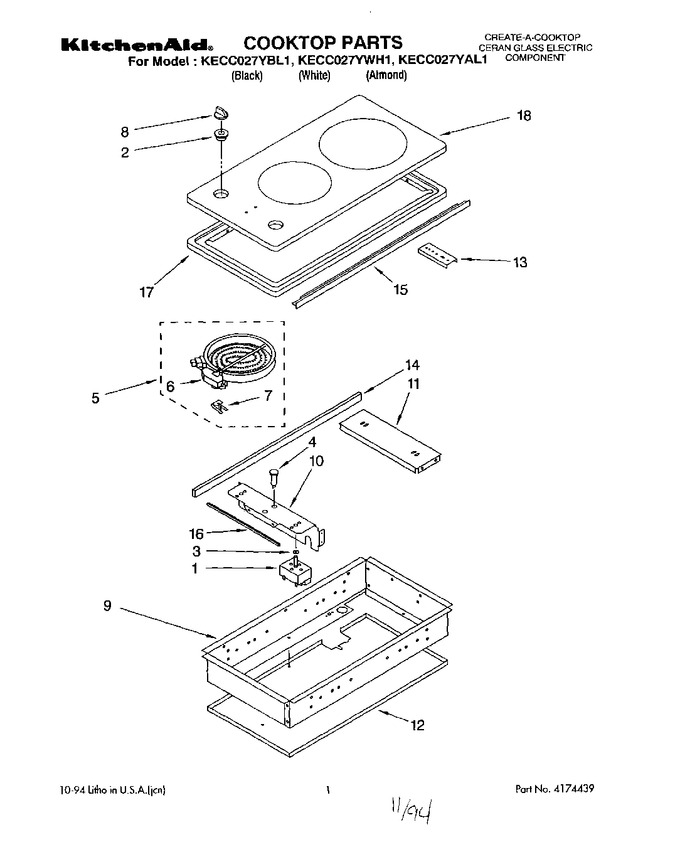

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148949 | Switch, Infinite (front Burner (yellow Shaft)) |
|
$ 67.77 | |||||
| 1 | 3148950 | Switch, Infinite (rear Burner (green Shaft)) |
|
$ 28.56 | |||||
| 2 | 3182435 | Seal, Infinite Switch (2) |
|
- | |||||
| 3 | WP486579 | Screw (4) (Replaces: 311865) |
|
$ 6.61 | |||||
| 3 | 3184256 | Seal, Switch Shaft (2) |
|
- | |||||
| 4 | 3182715 | Light, Indicator (2) |
|
- | |||||
| 5 | 3183199 | Element, Surface (front Burner (1400 Watts)) |
|
- | |||||
| 5 | 3182862 | Element, Surface (rear Burner (1800 Watts)) |
|
- | |||||
| 6 | 3169338 | Switch, Limiter (use W/3183199 Element) |
|
- | |||||
| 6 | 3169345 | Switch, Limiter (use W/3182862 Element) |
|
- | |||||
| 7 | WP486754 | Screw (2) (Replaces: 246119) |
|
$ 6.75 | |||||
| 7 | 3149191 | Spring, Locator (2) |
|
$ 9.45 | |||||
| 8 | 3182572 | Knob, Control (almond) |
|
- | |||||
| 8 | 3182571 | Knob, Control (white) |
|
- | |||||
| 8 | 3182570 | Knob, Control (black) |
|
- | |||||
| 9 | 3182369 | Side, Burner Box (2) |
|
- | |||||
| 10 | 3182690 | Bracket, Control Panel |
|
- | |||||
| 11 | 3182742 | Support, Burner (2) |
|
- | |||||
| 12 | W11233072 | Screw (4) (Replaces: 4159450) |
|
Immediately | $ 12.62 | ||||
| 12 | 3186727 | Bottom, Burner Box |
|
- | |||||
| 13 | 4159445 | Screw, Type Ab (2) |
|
- | |||||
| 13 | 3179557 | Screw, 8-32 X 2 1/2 |
|
- | |||||
| 13 | 4167077 | Nut, Tinnerman (2) |
|
- | |||||
| 13 | 8186533 | Bracket, Mounting (2) (Replaces: 3183401) |
|
$ 79.60 | |||||
| 14 | 3179167 | Seal, Foam (67``) |
|
- | |||||
| 15 | 3182437 | Extrusion, Trim (2) (black) |
|
- | |||||
| 15 | 3182439 | Extrusion, Trim (2) (white) |
|
- | |||||
| 15 | 3182438 | Extrusion, Trim (2) (almond) |
|
- | |||||
| 16 | 3183144 | Seal, Foam (ceran) |
|
- | |||||
| 17 | 3182548 | Top, Burner Box (white) |
|
- | |||||
| 17 | 3182353 | Top, Burner Box (black) |
|
- | |||||
| 17 | 3182547 | Top, Burner Box (almond) |
|
- | |||||
| 17 | W11233072 | Top, Burner Box (screw (4)) (Replaces: 4159450) |
|
Immediately | $ 12.62 | ||||
| 18 | 3182651 | Cooktop, Glass (black) |
|
- | |||||
| 18 | 3182652 | Cooktop, Glass (white) |
|
- | |||||
| 18 | 3182653 | Cooktop, Glass (almond) |
|
- | |||||
| LIT3186523 | Installation Instructions |
|
- | ||||||
| 3183440 | Hardware Assembly |
|
- | ||||||
| CERAMABRYTE | Cleaner, Glass (Replaces: 3184477) |
|
Immediately | $ 9.95 | |||||
| LIT3186756 | Use & Care Guide |
|
- |
