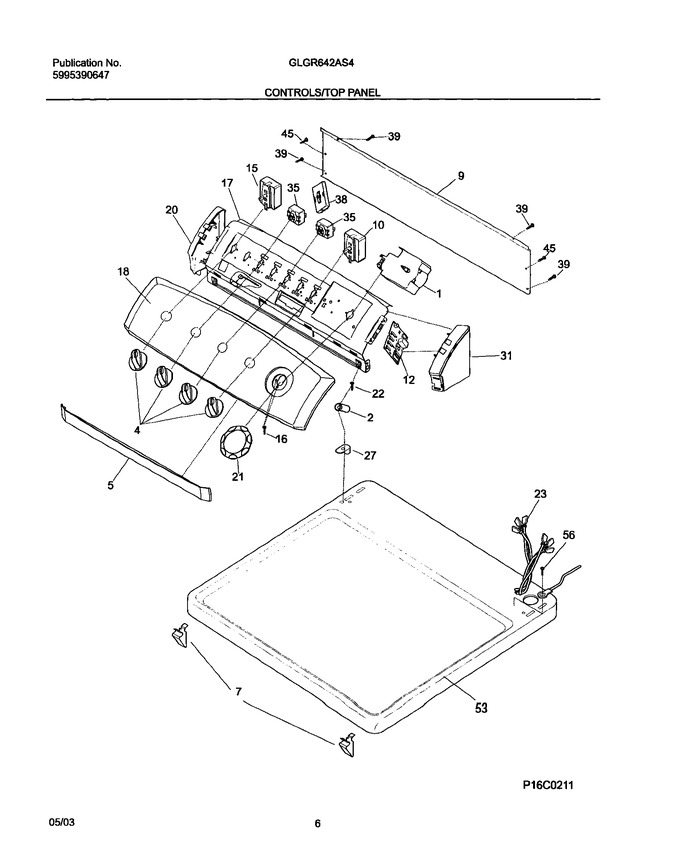

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131930600		Timer				$ 320.98
2	134096100		Spacer,console Mtg				$ 13.55
4	134844410		Knob,rotary ,white   (Replaces: 134034900)			Immediately	$ 57.36
5	134019900		Closure,console Trim ,white ,front				$ 66.68
7	3205821		Clip,top-to-front			Immediately	$ 35.44
9	131992900		Panel,backsheet ,console				$ 72.66
16	134034300		Screw,pan Hd Phillips ,8-18b X 0.250		Appelez-nous	-
17	131993010		Bracket,control Mtg.		Appelez-nous	-
18	134067400		Panel,trimplate ,white ,console Front				$ 190.58
20	134019610		End Cap,white ,lh				$ 46.31
21	134886700		Knob,timer ,white/gray   (Replaces: 134035500)				$ 60.01
22	131266330		Screw,8-18 X 1.250				$ 7.63
27	131197000		Clip-console Mtg				$ 13.62
31	134019600		End Cap,white ,rh				$ 46.10
39	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
45	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
53	134086802		Panel,dryer Top ,white ,console Mtg				$ 203.75
56	131243800		Screw,pan Hd Locking ,8-32ca X 0.375 ,cup Point				$ 10.46
F10	134398300		Switch,start ,turn Type   (Replaces: 131447800)			Immediately	$ 77.82
F12	131620200		Control Board,moisture Sensor		Appelez-nous	-
F15	131641900		Switch,temperature ,4 Posn Rotary		Appelez-nous	-
F23	134134000		Wiring Harness		Appelez-nous	-
F35	131243200		Switch,xrinse/temp/bzr ,2 Position ,(2)		Appelez-nous	-
F38	131959200		Beeper Continuous Low Tone				$ 134.82

    View Diagram in Separate Window       Print Part List
