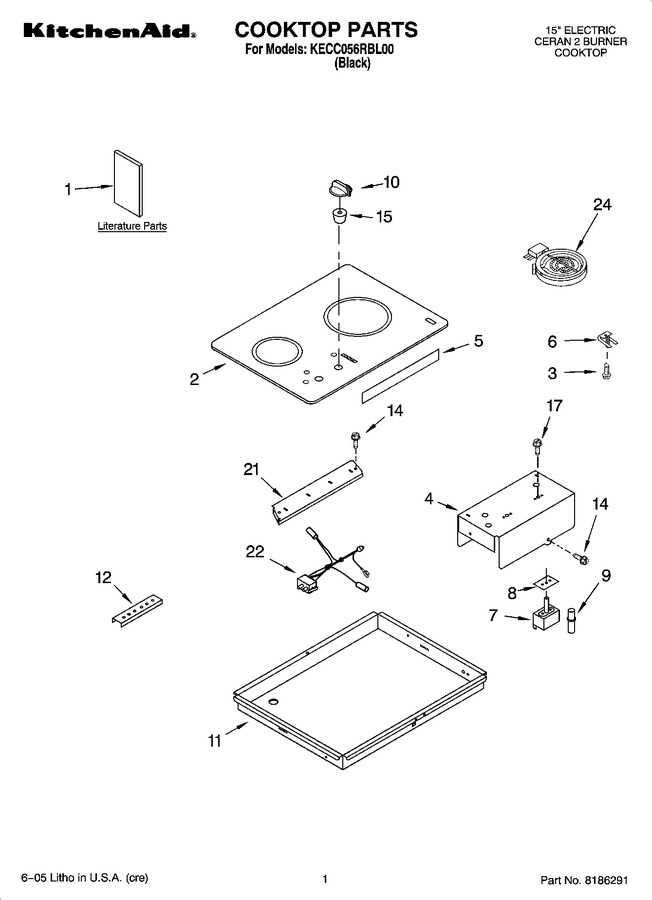

01 - Cooktop Parts, Miscellaneous Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286226 | Energuide Label |
|
- | |||||
| 1 | 8286066 | Installation Instructions |
|
- | |||||
| 1 | 3192609 | Wiring Diagram |
|
- | |||||
| 1 | 8286067 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | W10665724 | Cooktop, Glass (black) (Replaces: 8286231) |
|
$ 577.95 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | W10414006 | Bracket, Switch Mounting (Replaces: 3192702) |
|
$ 69.52 | |||||
| 5 | 4457298 | Foam, Seal |
|
$ 5.58 | |||||
| 6 | 9759094 | Spring, Locator (8) |
|
$ 6.34 | |||||
| 7 | WP3191049 | Switch, Infinite (use W/1400w Left Rear Burner) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | WP3191050 | Switch, Infinite (use W/1700w Right Rear Burner) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 8 | W10491984 | Seal, Switch Shaft (Replaces: 3192439) |
|
$ 10.33 | |||||
| 9 | 3193012 | Light, Indicator |
|
$ 99.17 | |||||
| 10 | WP9750372FF | Knob, Control (4) (black) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 11 | 4456957 | Box, Burner |
|
- | |||||
| 12 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 12 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Seal, Switch (2) |
|
$ 45.00 | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 21 | 3192721 | Rail, Element |
|
- | |||||
| 22 | 3192612 | Lamp, Hot Surface Indicator |
|
- | |||||
| 24 | 3172515 | Element, Surface Following Parts Not Illustrated Miscellaneous (hardware, Mounting) |
|
- | |||||
| 24 | 3183956 | Element, Surface (seal, Switch Cover) |
|
$ 41.81 | |||||
| 24 | W10823698 | Element, Surface (1800w Right Rear) (Replaces: 8523696) |
|
Immediately | $ 175.61 | ||||
| 24 | W10823711 | Element, Surface (1200w Right Front) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 24 | 3192408 | Element, Surface Following Parts Not Illustrated Miscellaneous (bracket, Support) |
|
- | |||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| WP98997 | Clip, Harness (Replaces: 98997) |
|
$ 9.98 | ||||||
| W11170321 | Wiring Harness Surface Unit (Replaces: 4457254) |
|
- | ||||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 4456511 | Conduit |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 |
