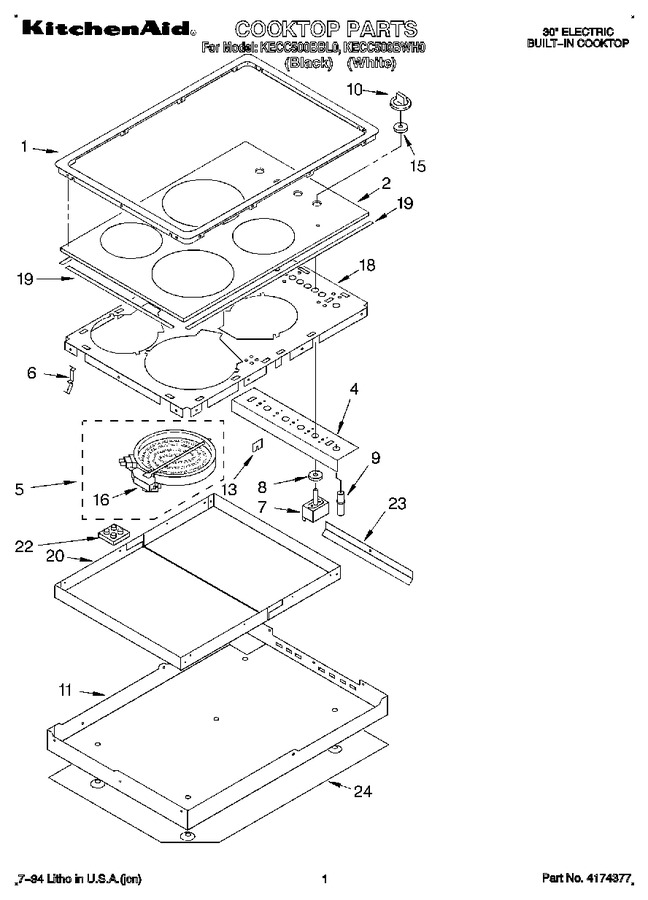

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3187744 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3187745 | Trim Ring, Cooktop (white) |
|
- | |||||
| 2 | 3185578 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 3185579 | Cooktop, Glass (white) |
|
- | |||||
| 4 | 3187584 | Bracket, Switch Mounting |
|
- | |||||
| 5 | 3184952 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 5 | 3184960 | Element, Surface (2400w Left Front) |
|
- | |||||
| 5 | 3184957 | Element, Surface (2100w Right Rear) |
|
- | |||||
| 5 | 3184954 | Element, Surface (1700w Right Front) |
|
- | |||||
| 6 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 6 | 3187707 | Spring Locator (8) |
|
- | |||||
| 7 | 3148950 | Switch, Infinite (use W/2100w Right Rear Burner) |
|
$ 28.56 | |||||
| 7 | 3148949 | Switch, Infinite (use W/1400w Left Rear & 1700w Right Front Burner) |
|
$ 67.77 | |||||
| 7 | WP486579 | Switch, Infinite (screw (8)) (Replaces: 311865) |
|
$ 6.61 | |||||
| 7 | 3148965 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 8 | 309839 | Seal, Switch Shaft |
|
- | |||||
| 9 | 4168863 | Screw |
|
- | |||||
| 9 | 3187750 | Light, Indicator |
|
- | |||||
| 10 | 3150100 | Knob, Control (4) (black) |
|
$ 21.50 | |||||
| 10 | 3150096 | Knob, Control (4) (white) |
|
- | |||||
| 11 | 3188438 | Box, Burner |
|
- | |||||
| 13 | 3187754 | Grommet |
|
- | |||||
| 15 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 16 | 3187528 | Switch, Limiter (use W/3184952 Element) |
|
- | |||||
| 16 | 3187535 | Switch, Limiter (use W/3184960 Element) |
|
- | |||||
| 16 | 3187529 | Switch, Limiter (use W/3184954 Element) |
|
- | |||||
| 16 | 3187532 | Switch, Limiter (use W/3184957 Element) |
|
- | |||||
| 18 | 3187427 | Plate, Backer |
|
- | |||||
| 19 | 3185589 | Seal, Silicone (small (3)) |
|
- | |||||
| 19 | 3185590 | Seal, Silicone (large (2)) |
|
- | |||||
| 20 | 3148443 | Screw |
|
- | |||||
| 20 | 3187753 | Shield, Heat |
|
- | |||||
| 22 | 3150304 | Lamp, Hot Surface Indicator |
|
- | |||||
| 23 | 4159456 | Screw |
|
- | |||||
| 23 | 3188320 | Plate, Lower |
|
- | |||||
| 24 | 3148443 | Screw |
|
- | |||||
| 24 | 3188437 | Shield, Heat |
|
- |
