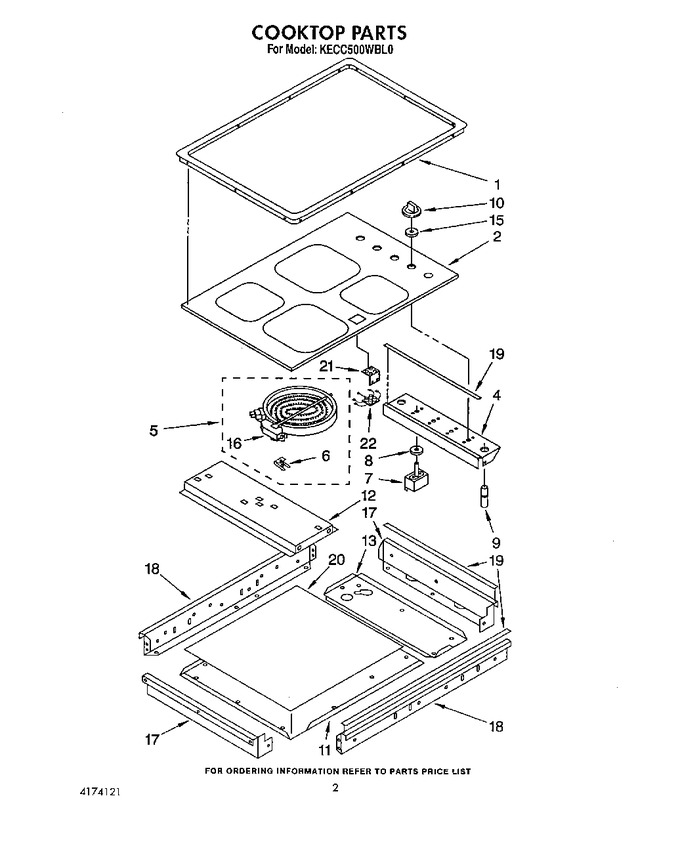

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3150305 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 3150306 | Trim Ring, Cooktop (white) |
|
- | |||||
| 1 | WP308685 | Trim Ring, Cooktop (screw (14)) (Replaces: 3182346) |
|
Immediately | $ 7.08 | ||||
| 2 | 3181662 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 3181663 | Cooktop, Glass (white) |
|
- | |||||
| 4 | 3150328 | Bracket, Switch Mounting |
|
- | |||||
| 5 | 3148830 | Element, Surface (1700w Right Front) |
|
- | |||||
| 5 | 3148829 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 5 | 3148831 | Element, Surface (2100w Right Rear) |
|
- | |||||
| 5 | 3148832 | Element, Surface (2400w Left Front) |
|
- | |||||
| 6 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 6 | 3149191 | Spring Locator (8) |
|
$ 9.45 | |||||
| 7 | 155023 | Switch, Infinite (screw (8)) |
|
Immediately | $ 7.91 | ||||
| 7 | 3148963 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 7 | W10900107 | Switch, Infinite (use W/2100w Right Rear Burner) (Replaces: 3148961) |
|
Immediately | $ 51.87 | ||||
| 7 | W10900107 | Switch, Infinite (use W/1400w Left Rear & 1700w Right Front Burner) (Replaces: 3148962) |
|
Immediately | $ 51.87 | ||||
| 8 | 309839 | Seal, Switch Shaft |
|
- | |||||
| 9 | 3149978 | Light, Indicator |
|
- | |||||
| 10 | 3150100 | Knob, Control (4) (black) |
|
$ 21.50 | |||||
| 10 | 3150096 | Knob, Control (4) (white) |
|
- | |||||
| 11 | 3150317 | Cover, Bottom |
|
- | |||||
| 11 | WP488729 | Screw (6) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 12 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 12 | 3150316 | Element Support (2) |
|
- | |||||
| 13 | WP488729 | Screw (5) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 13 | 3150318 | Cover, Service |
|
- | |||||
| 15 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 16 | 3149121 | Switch, Limit (use W/3148829 Element) |
|
- | |||||
| 16 | 3149122 | Switch, Limit (use W/3148830 Element) |
|
- | |||||
| 16 | 3149128 | Switch, Limit (use W/3148831 Element) |
|
- | |||||
| 16 | 3149124 | Switch, Limiter (use W/3148832 Element) |
|
- | |||||
| 17 | 3150326 | Rail, Side (left Hand) |
|
- | |||||
| 17 | 3150325 | Rail, Side (right Hand) |
|
- | |||||
| 18 | 3150327 | Rail, Front & Rear |
|
- | |||||
| 19 | 3181645 | Seal, Silicone (small (3)) |
|
- | |||||
| 19 | 3181644 | Seal, Silicone (large (2)) |
|
- | |||||
| 20 | 3181973 | Reflector, Heat |
|
- | |||||
| 21 | 3150321 | Bracket, Hot Surface Indicator |
|
- | |||||
| 22 | 3150304 | Lamp, Hot Surface Indicator |
|
- | |||||
| 22 | WP488729 | Screw (2) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 161463 | Mounting Screws (10a X 2 (4)) |
|
- | ||||||
| LIT4174121 | Repair Parts List |
|
- | ||||||
| CERAMABRYTE | Cleaner, Glass (Replaces: 814009) |
|
Immediately | $ 9.95 | |||||
| LIT3181198 | Use & Care Guide |
|
- | ||||||
| LIT3181199 | Installation Instructions |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 3150320 | Mounting Screws (clamp (2)) |
|
- | ||||||
| 309029 | Mounting Screws (8-15 X 1/2 (3)) |
|
- |
