SELECT A DIAGRAM

01 - Cover


02 - Cabinet/drum

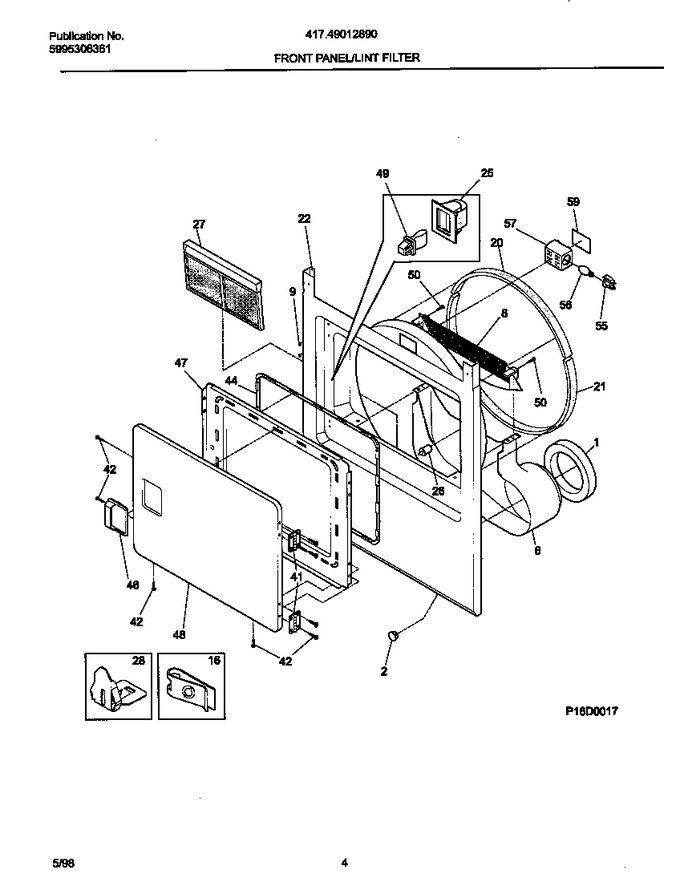

03 - Front Panel/lint Filter


04 - Controls/top Panel


05 - Motor


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134417000		Seal-air Duct   (Replaces: 131581400)			Immediately	$ 9.22
2	131397000		Plug-white   (Replaces: 131432300)				$ 14.12
6	131621900		Duct-air		Appelez-nous	-
8	131632601		Asmy-moist Sensor/harn Stack		Appelez-nous	-
9	131633200		Plug,white				$ 15.90
16	131063700		Clip-wiring				$ 18.11
20	DE790		Glide-drum   (Replaces: 5303937139)			Immediately	$ 40.53
21	5303283286		Seal-basket Lower				$ 48.04
22	131635752		Panel-front, White		Appelez-nous	-
25	131658800		Catch-door			Immediately	$ 68.38
26	08006623		Switch, Door		Appelez-nous	-
27	131450300		Lint Trap			Immediately	$ 30.47
28	5303281074		Clip-guide,(3)				$ 18.27
41	134222900		Hinge-door   (Replaces: 131627500)				$ 22.68
42	134154100		Screw-grnd Cab,hex Wshr Hd,10-32t X 0.375,serrate   (Replaces: 131301100)				$ 13.46
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 41.00
46	131644700		Handle-door, White			Immediately	$ 59.54
47	131574004		Door-inner White		Appelez-nous	-
48	131574104		Door-outer White		Appelez-nous	-
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	131303300		Screw-lock, Ph Ab, 10-16 X .50		Appelez-nous	-
55	131843500		Receptacle-lamp   (Replaces: 131381500)				$ 73.00
56	131843500		Lamp   (Replaces: 5303212868)				$ 73.00
57	131843500		Holder-lamp   (Replaces: 131466200)				$ 73.00
59	131843500		Cover-lamp   (Replaces: 131466300)				$ 73.00
*85202	131657500		Harness,moisture Sensor				$ 77.81

    View Diagram in Separate Window       Print Part List
