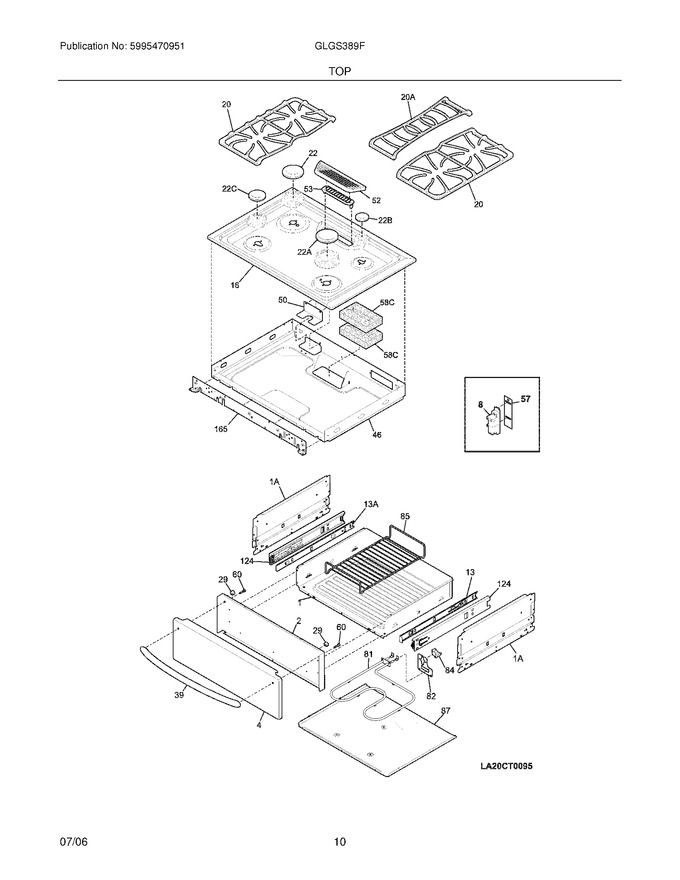

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318304401		Drawer,body Assembly		Appelez-nous	-
2	318303901		Panel,drawer ,black ,inner		Appelez-nous	-
4	318299902		Panel,drawer ,bisque ,front		Appelez-nous	-
13	318259507		Glide,warmer ,inner Rh			Immediately	$ 69.01
20	316424604		Grate,brown ,(2)				$ 317.73
22	316219904		Cap,14k Burner ,brown				$ 174.83
29	318147430		Bumper,(2)				$ 18.95
39	5304457013		Handle,door ,bisque ,w/spacer		Appelez-nous	-
46	318291400		Box,burner		Appelez-nous	-
50	318328500		Cover,burner Box		Appelez-nous	-
52	318291101		Cover,flue ,bisque ,outer		Appelez-nous	-
53	318308303		Cover,flue ,black				$ 112.19
57	318295611		Panel,service				$ 15.12
60	316001002		Screw,wafer Head ,10-24 X 1.81 ,(2) ,handle Mtg.				$ 14.89
82	318304500		Bracket,element ,warmer Drawer				$ 11.29
85	807328301		Rack,warmer Drawer   (Replaces: 318257600)				$ 87.21
87	318300102		Panel,warmer Drawer ,lower   (Replaces: 318300100)				$ 106.22
124	316105501		Glide,outer/rh & Lh ,(2)				$ 90.72
165	318227504		Plate,mounting		Appelez-nous	-
13A	318259506		Glide,warmer ,inner Lh				$ 69.01
1A	318300003		Panel,warmer Drawer ,side ,(2)   (Replaces: 318300000)				$ 56.13
20A	318307104		Grate,brown ,center		Appelez-nous	-
22A	316271902		Cap,17k Burner ,brown		Appelez-nous	-
22B	316206602		Cap,5k Burner ,brown		Appelez-nous	-
22C	316213503		Cap,9.5k Burner ,brown				$ 157.34
58C	318285097		Insulation,flue		Appelez-nous	-
F8	5304505695		Module,spark   (Replaces: 316135701)			Immediately	$ 68.16
F81	318255301		Element,warmer Drawer   (Replaces: 318255300)				$ 105.42
F84	318005108		Thermostat			Immediately	$ 81.14
NI	318163600		Cleaner,cooktop		Appelez-nous	-
NI	5303325171		Washer,plastic		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303300265		Screw,8-18 X 1/2 ,(2)				$ 15.17
NI	5304453707		Screw, 8-32 X 3/8   (Replaces: 5303311333)			Immediately	$ 15.92
NI	318199748		Wiring Harness,drawer				$ 35.86
