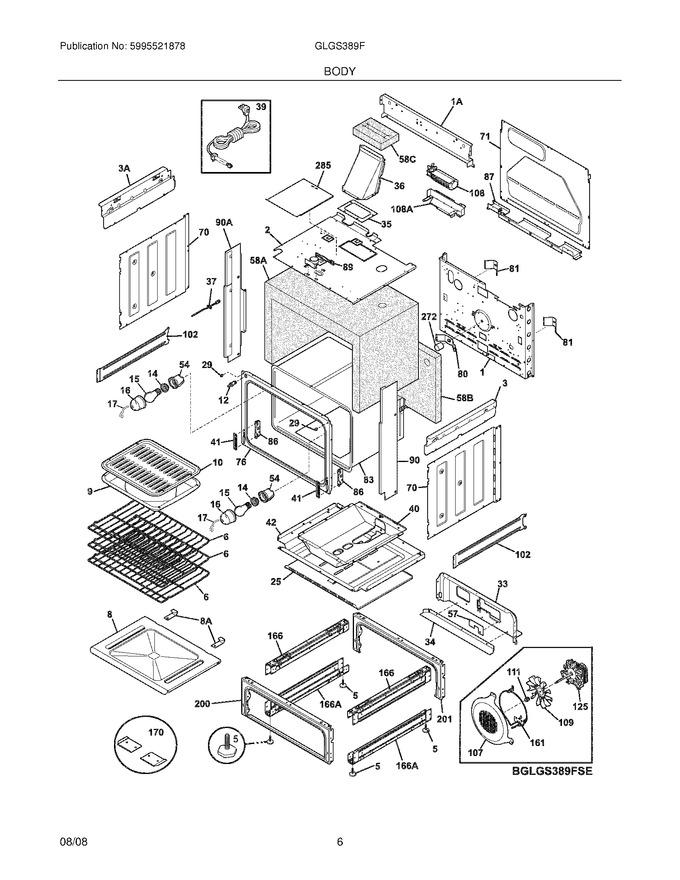

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259220		Back,main				$ 88.31
2	318258902		Shield,insulation ,upper		Appelez-nous	-
3	318225210		Panel,bodyside ,upper Rh				$ 55.86
5	318175510		Screw,leveling   (Replaces: 318175508)			Immediately	$ 24.26
6	318345208		Rack,oven		Appelez-nous	-
8	318290503		Panel,oven ,bottom   (Replaces: 318290501)		Appelez-nous	-
9	316081900		Pan,broileroptional Access0ry				$ 65.89
10	316082000		Insert,broiler Panoptional Access0ry				$ 68.85
12	316445501		Switch,oven Light ,door Frame				$ 90.01
14	316116400		Receptacle,oven Light   (Replaces: 318224000)			Immediately	$ 56.10
15	40A15		Bulb/lamp,light   (Replaces: 5303013071)			Immediately	$ 1.98
16	5304524341		Lens,oven Light ,glass   (Replaces: 08011086)			Immediately	$ 14.18
17	5304400195		Retainer,light Cover		Appelez-nous	-
25	318291900		Bracket,shield ,lower				$ 94.27
29	318147430		Bumper,(2)				$ 18.95
33	318287800		Panel,valve Mtg.		Appelez-nous	-
34	318289400		Panel,valve Filler		Appelez-nous	-
35	318291300		Seal,flue Cavity		Appelez-nous	-
36	318288801		Box,flue Assy.		Appelez-nous	-
39	5304534377		Cord,service   (Replaces: 318144008)				$ 26.85
40	318291800		Box,oven Burner		Appelez-nous	-
41	5303310526		Cover-hinge Cutout				$ 83.00
42	318288700		Bracket,body ,middle		Appelez-nous	-
54	318222400		Housing,oven Light				$ 58.22
57	318268300		Cover,burner Opening		Appelez-nous	-
70	318259100		Shield,insulation ,sides ,(2)				$ 63.05
71	318260007		Panel,rear Box				$ 102.90
76	318056217		Front,oven				$ 143.06
80	5303320846		Plate,oven Mtg				$ 51.50
81	318192400		Spring,oven				$ 312.53
83	318327019		Liner,oven		Appelez-nous	-
86	318342400		Receptacle,hinge				$ 43.24
87	318260604		Bracket,cable Mtg.		Appelez-nous	-
90	318296906		Panel,filler ,bisque ,rh		Appelez-nous	-
102	318327500		Panel,reinforcement		Appelez-nous	-
107	318219405		Cover,fan				$ 82.69
109	318398302		Fan Blade   (Replaces: 318398300)			Immediately	$ 29.11
111	316136600		Nut-fan Retainer   (Replaces: 318399800)			Immediately	$ 19.13
166	318298410		Bracket,base Support ,(2)				$ 75.83
170	318335500		Anti-tip & Accessories				$ 46.94
200	318298221		Frame,drawer ,front		Appelez-nous	-
201	318298210		Frame,drawer				$ 81.95
272	318249403		Tube,protector		Appelez-nous	-
285	318236201		Shield,hidden Wires		Appelez-nous	-
1A	318225110		Panel,main Back ,upper				$ 63.05
3A	318225211		Panel,bodyside ,upper Lh				$ 48.25
58A	318285084		Insulation,oven Wrapper		Appelez-nous	-
58B	318285085		Insulation,oven Back		Appelez-nous	-
58C	318285097		Insulation,flue		Appelez-nous	-
8A	318367401		Bracket,retainer ,(2)		Appelez-nous	-
90A	318296907		Panel,filler ,bisque ,lh		Appelez-nous	-
F108	318251300		Bracket,fan Support				$ 54.60
F108	318073028		Motor,blower			Immediately	$ 271.69
F125	5304463302		Motor-convection			Immediately	$ 259.95
F161	318255504		Element,convection ,350 W   (Replaces: 318255503)				$ 97.07
F166	318298403		Bracket,base Support ,lower ,(2)		Appelez-nous	-
F37	316217002		Probe,oven Temp			Immediately	$ 61.23
F89	318261229		Motor,latch Assy   (Replaces: 318261215)			Immediately	$ 93.62
FNI	318306627		Harness,wiring ,main		Appelez-nous	-
NI	3051050		Screw-shoulder				$ 12.29
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	134178901		Screw,8 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5303307980		Screw,8-32 X 0.437 ,(4)			Immediately	$ 14.18
NI	5304415832		Screw,8-18 X 0.406		Appelez-nous	-
NI	5304436875		Screw,8-18 X 1/2,black				$ 14.41
NI	5303323129		Screw,8 X 0.750		Appelez-nous	-
NI	318165800		Spacer				$ 17.72
