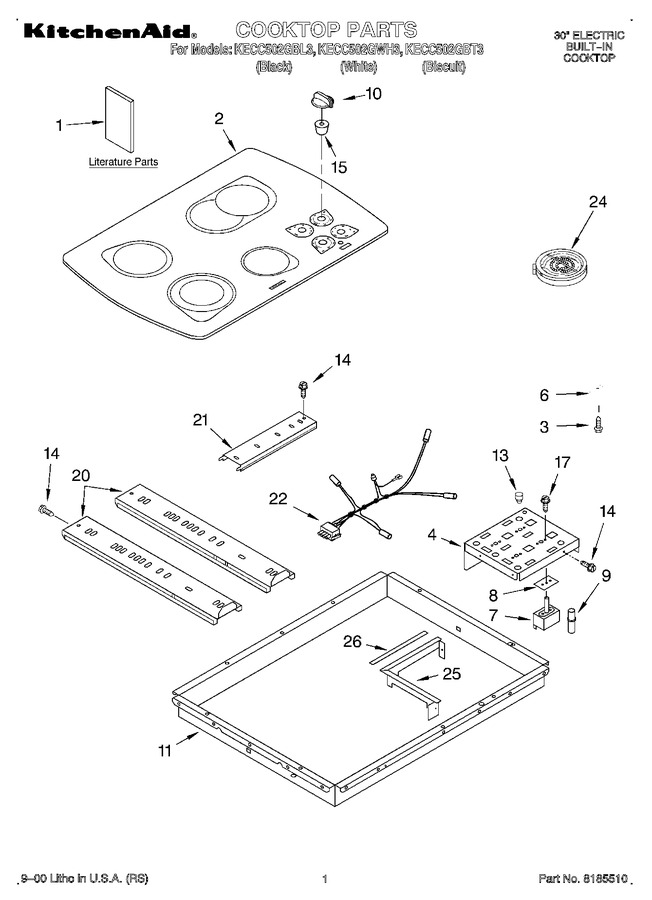

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT3192799 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT3191794 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT8284718 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | 4455551 | Cooktop, Glass (white) |
|
- | |||||
| 2 | 4455549 | Cooktop, Glass (black) |
|
$ 408.24 | |||||
| 2 | 4455550 | Cooktop, Glass (honeycomb) |
|
- | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 4455421 | Bracket, Switch Mounting |
|
- | |||||
| 6 | 3191791 | Spring, Locator (8) |
|
- | |||||
| 7 | WP3191049 | Switch, Infinite (lr - Rf) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | 8203534 | Switch, Infinite (rr - Lf) (Replaces: 3188516) |
|
Immediately | $ 151.20 | ||||
| 8 | 3183956 | Seal, Switch Shaft |
|
$ 41.81 | |||||
| 9 | 3191945 | Light, Indicator |
|
- | |||||
| 10 | WP9750372FF | Knob, Control (4) (black) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 10 | WP9750372FC | Knob, Control (4) (biscuit) (Replaces: 9750372FC) |
|
Immediately | $ 6.47 | ||||
| 10 | WP9750372FW | Knob, Control (4) (white) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 11 | 4456401 | Box, Burner |
|
- | |||||
| 13 | 3192477 | Bumper, Silicone |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 20 | 3191515 | Rail, Element (2) |
|
- | |||||
| 21 | 3192268 | Rail, Element (1) |
|
- | |||||
| 22 | 3191343 | Lamp, Hot Surface Indicator |
|
- | |||||
| 24 | W10823711 | Element, Surface (1200 W - Rf) (Replaces: 8272567) |
|
Immediately | $ 183.95 | ||||
| 24 | W10823699 | Element, Surface (1500 W - Lr) (Replaces: 8272564) |
|
Immediately | $ 145.67 | ||||
| 24 | 4452741 | Element, Surface (1000/1800w - Rr) |
|
- | |||||
| 24 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8272563) |
|
Immediately | $ 204.83 | ||||
| 25 | 4455468 | Shield-heat, Control |
|
- | |||||
| 26 | 3192220 | Conduit, Harness |
|
- | |||||
| 26 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 26 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 26 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 26 | 3191048 | Cleaner, Glass |
|
- | |||||
| 26 | 4455272 | Wiring Harness |
|
- | |||||
| 26 | WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 6.47 | |||||
| 26 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 26 | 3191839 | Seal, Heat Shield |
|
- | |||||
| 26 | 3192737 | Seal, Heat |
|
$ 35.16 | |||||
| 26 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| 26 | 3172515 | Mtg. Hardware Kit |
|
- | |||||
| 26 | 3192408 | Bracket, Support (2) |
|
- | |||||
| 26 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 26 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 26 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 26 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 26 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 26 | 242829 | Wire, Red 12 Ga. 150~c |
|
- | |||||
| 26 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 26 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 |
