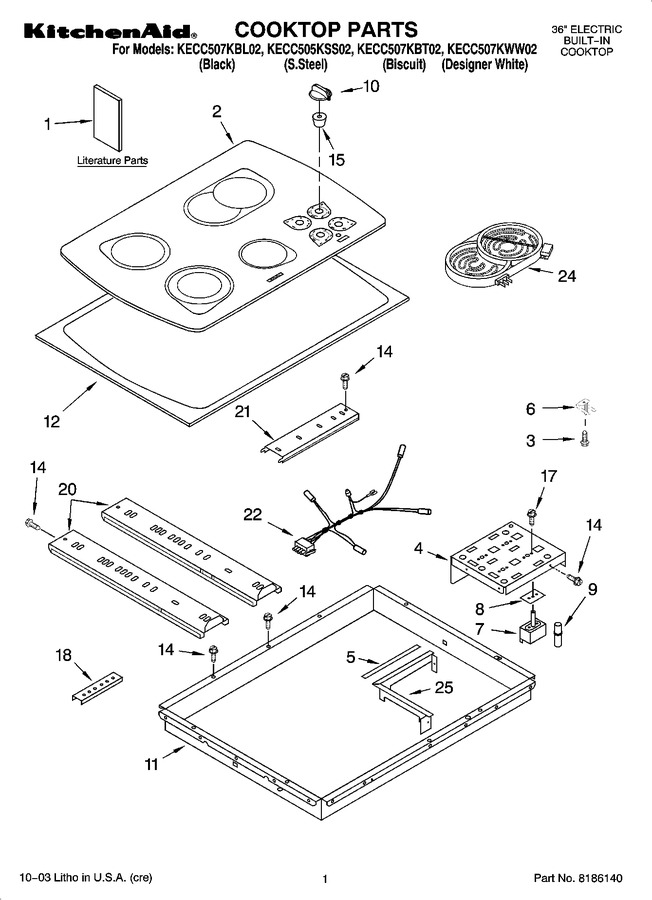

01 - Cooktop Parts, Miscellaneous Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8285368 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT8284600 | Literature Parts (energuide Label) |
|
- | |||||
| 1 | LIT8285316 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT4456009 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | 8284887 | Cooktop, Glass (black) |
|
$ 338.64 | |||||
| 2 | 8284890 | Cooktop, Glass (biscuit) |
|
- | |||||
| 2 | 8284889 | Cooktop, Glass (designer White) |
|
- | |||||
| 2 | 8284891 | Cooktop, Glass (s.steel) |
|
- | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 4455421 | Bracket, Switch Mounting |
|
- | |||||
| 5 | 3191839 | Seal, Heat Shield |
|
- | |||||
| 6 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 6.75 | |||||
| 6 | 3191791 | Spring, Locator (10) |
|
- | |||||
| 7 | WP3191049 | Switch, Infinite (lr - Rf) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | WP4456027 | Switch, Infinite (lf - Rr) (Replaces: 4456027) |
|
$ 138.70 | |||||
| 8 | 3183956 | Seal, Switch Shaft |
|
$ 41.81 | |||||
| 9 | 3191945 | Light, Indicator |
|
- | |||||
| 10 | WP9750372FC | Knob, Control (4) (biscuit) (Replaces: 9750372FC) |
|
Immediately | $ 6.47 | ||||
| 10 | WP9750372FF | Knob, Control (4) (black) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 10 | WP9750372FW | Knob, Control (4) (white) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 11 | 4456959 | Box, Burner |
|
- | |||||
| 12 | 8284627 | Frame, Cooktop (s.steel Model Only) |
|
$ 263.63 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285469 | Seal, Switch (5) |
|
$ 45.00 | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 18 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 18 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 20 | 8285104 | Rail, Element (2) |
|
- | |||||
| 21 | 3192268 | Rail, Element (1) |
|
- | |||||
| 22 | 3191343 | Lamp, Hot Surface Indicator |
|
- | |||||
| 24 | W10823699 | Element, Surface (1500w - Lr) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 24 | 4456507 | Element, Surface (1000/1800w - Rr) |
|
- | |||||
| 24 | 3192737 | Element, Surface (seal, Heat) |
|
$ 35.16 | |||||
| 24 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8523693) |
|
Immediately | $ 204.83 | ||||
| 24 | W10491984 | Element, Surface (seal, Limiter) (Replaces: 3192439) |
|
$ 10.33 | |||||
| 24 | 4452742 | Element, Surface (1200w - Rf) |
|
- | |||||
| 25 | 4455468 | Shield, Heat |
|
- | |||||
| 4456028 | Jumper, Wire 12 Ga. 150~c |
|
$ 22.62 | ||||||
| 3192408 | Bracket, Support (2) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| 3172515 | Mtg. Hardware Kit |
|
- | ||||||
| WP3191239 | Seal, Foam-cooktop (Replaces: 3191239) |
|
$ 76.65 | ||||||
| 4456512 | Conduit Assy. |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 4456761 | Harness, Main |
|
- | ||||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- |
