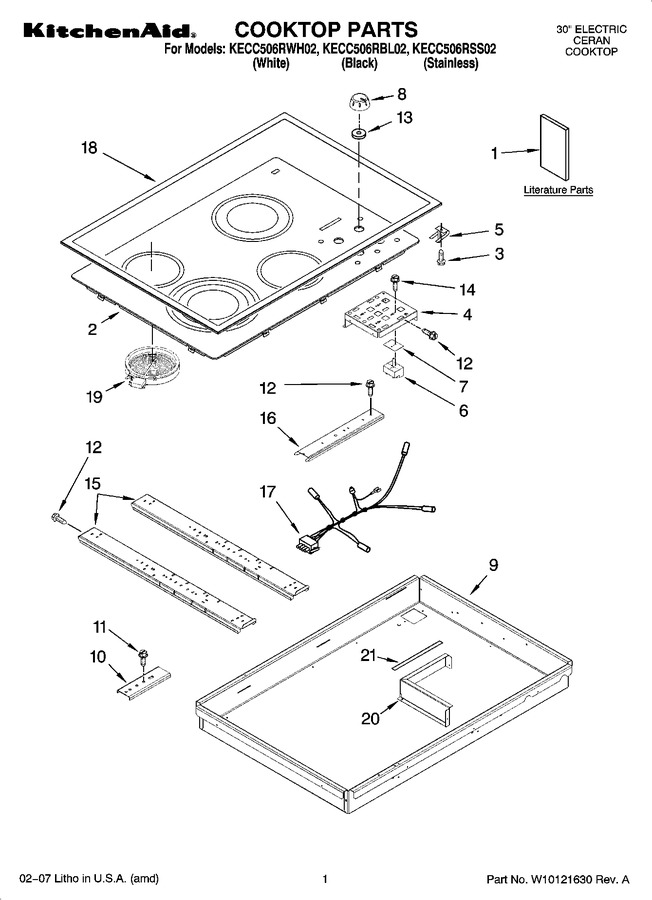

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191638 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | 8286066 | Installation Instructions (english/french) |
|
- | |||||
| 1 | 8304571 | Installation Instructions (canadian) |
|
- | |||||
| 1 | 8286073 | Wiring Diagram |
|
- | |||||
| 1 | 8286608 | Use & Care Guide |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | 8286061 | Energy Guide, Label |
|
- | |||||
| 2 | W10140987 | Cooktop, Glass (black) (Replaces: W10048420) |
|
$ 504.32 | |||||
| 2 | W10322778 | Cooktop, Glass (white) (Replaces: W10048430) |
|
$ 423.30 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 8285935 | Bracket, Switch Mounting |
|
- | |||||
| 5 | 9759094 | Spring, Locator (8) |
|
$ 6.34 | |||||
| 6 | WP8286070 | Switch, Infinite (lf) (Replaces: 8286070) |
|
Immediately | $ 144.91 | ||||
| 6 | WP4456027 | Switch, Infinite (rr) (Replaces: 4456027) |
|
$ 138.70 | |||||
| 6 | WP3191049 | Switch, Infinite (lr - Rf) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | 3183956 | Seal, Switch Shaft |
|
$ 41.81 | |||||
| 8 | 8286096CM | Knob, Control (4) (cashmere Metal) |
|
$ 44.71 | |||||
| 8 | WP8286096BL | Knob, Control (4) (black) (Replaces: 8286096BL) |
|
$ 25.33 | |||||
| 8 | 8286096WH | Knob, Control (4) (white) |
|
- | |||||
| 9 | 8285862 | Box, Burner |
|
- | |||||
| 10 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 11 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 12 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 13 | 8285469 | Seal, Switch |
|
$ 45.00 | |||||
| 14 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 15 | 9763517 | Rail, Element (2) |
|
$ 62.80 | |||||
| 16 | 8286344 | Rail, Element (1) |
|
- | |||||
| 17 | 8286055 | Lamp, Hot Surface Indicator |
|
$ 81.82 | |||||
| 18 | 8285709 | Frame, Cooktop (stainless Model Only) |
|
- | |||||
| 19 | W10823711 | Element, Surface (1200w - Lr) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 19 | 8285846 | Element, Surface (2500/1800/900w Lf) |
|
$ 175.07 | |||||
| 19 | 8285937 | Element, Surface (2000/1000w Rr) |
|
$ 141.19 | |||||
| 19 | W10823699 | Element, Surface (1500w - Rf) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| 20 | 4455468 | Shield-heat, Control |
|
- | |||||
| 21 | 3191839 | Seal, Heat Shield |
|
- | |||||
| 21 | W10491984 | Seal, Limiter (Replaces: 3192439) |
|
$ 10.33 | |||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| WP3400015 | Screw (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 8286417 | Wiring Harness |
|
- | ||||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 4456028 | Wire, Jumper |
|
$ 22.62 | ||||||
| WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | |||||
| 3192408 | Bracket, Support (2) |
|
- | ||||||
| 3172515 | Mounting, Hardware Kit |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 8286421 | Conduit, Harness |
|
- |
