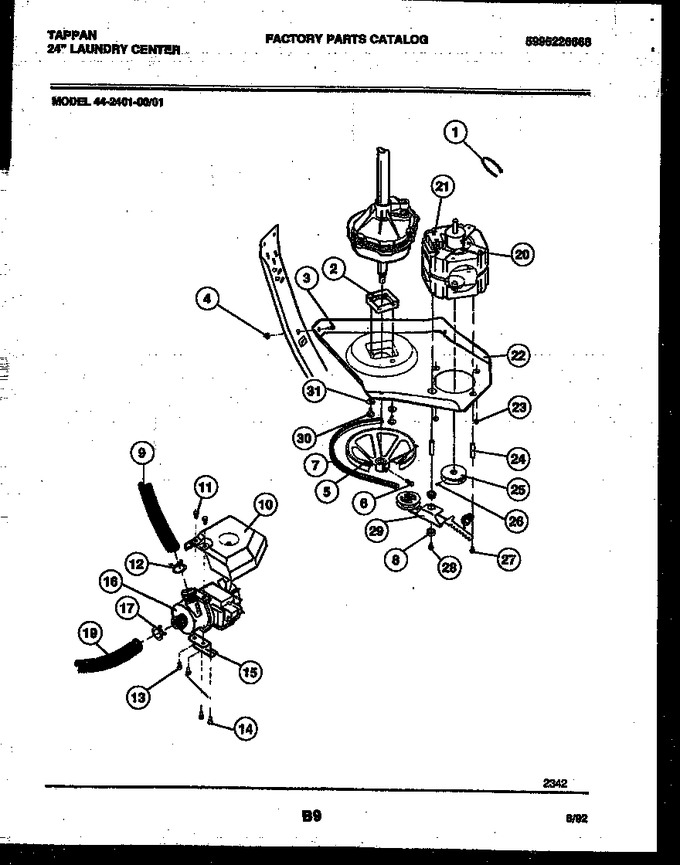

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304464772 | Cable Tie (Replaces: 5303161300) |
|
$ 10.63 | |||||
| 2 | 5377009100 | Cushion |
|
- | |||||
| 3 | 3161211 | Bolt (3) |
|
- | |||||
| 4 | 3161212 | Locknut (3) |
|
- | |||||
| 5 | 5303205951 | Pulley-transmission |
|
- | |||||
| 6 | 5303270023 | Set Screw |
|
$ 29.78 | |||||
| 7 | 5303280326 | Belt-drive |
|
- | |||||
| 8 | 08027535 | Bushing |
|
- | |||||
| 9 | 5303283055 | Hose-pump To Drain |
|
- | |||||
| 10 | 5303283071 | Shield-pump |
|
- | |||||
| 11 | 5303283072 | Screw |
|
$ 9.12 | |||||
| 12 | 154348401 | Clamp (Replaces: 5303283073) |
|
$ 32.96 | |||||
| 13 | 5303283072 | Screw |
|
$ 9.12 | |||||
| 14 | 3205020 | Screw |
|
- | |||||
| 15 | 5303283074 | Bracket |
|
- | |||||
| 16 | 5303285135 | Pump-complete |
|
- | |||||
| 17 | 5303283076 | Clamp |
|
- | |||||
| 19 | 5303283078 | Hose-pump To Tub |
|
- | |||||
| 20 | 5308015502 | Motor & Switch |
|
- | |||||
| 21 | 5308014888 | Switch-motor |
|
- | |||||
| 22 | 08002472 | Plate-support |
|
- | |||||
| 23 | 5303283079 | Locknut |
|
- | |||||
| 24 | 5303161303 | Spacer |
|
- | |||||
| 25 | 5308006686 | Pulley-motor |
|
- | |||||
| 26 | 5303206869 | Set Screw |
|
- | |||||
| 27 | 5308002456 | Spring Tension |
|
$ 15.70 | |||||
| 28 | 5303283080 | Screw |
|
- | |||||
| 29 | 5303937001 | Idler Arm |
|
- | |||||
| 30 | 5308027582 | Screw |
|
- | |||||
| 31 | 5303207426 | Spacer |
|
$ 9.21 | |||||
| *76441 | 5303161306 | Spring Washer-idler Pulley |
|
$ 12.49 | |||||
| *76441 | 5304527822 | Pulley-idler (Replaces: 5303212114) |
|
$ 23.13 | |||||
| *76441 | 3204456 | Clamp - Pump Hose To Tub |
|
- |
