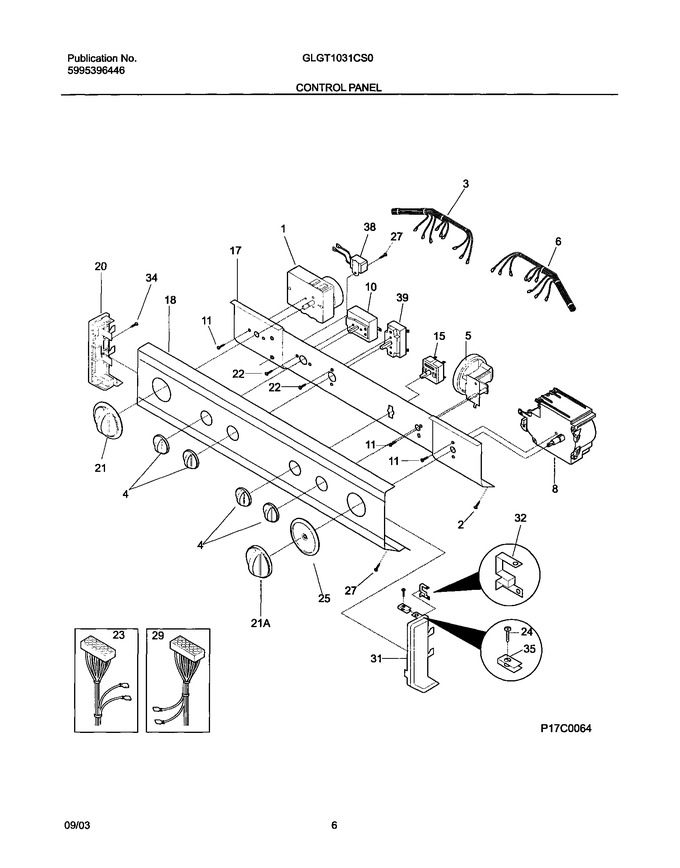

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131583801		Timer,dryer ,3-off				$ 336.65
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	131703600		Wiring Harness,dryer Control		Appelez-nous	-
4	134844470		Knob,rotary ,white   (Replaces: 134034950)			Immediately	$ 66.92
5	134422700		Switch,pressure ,3 Position ,1/2 Hp   (Replaces: 131692100)			Immediately	$ 98.06
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	134135100		Bracket,control Mtg		Appelez-nous	-
18	134284200		Panel,trimplate ,console Front				$ 201.29
20	131288101		End Cap,white ,lh				$ 53.02
21	134043000		Knob,dryer Timer ,white/dark Gray			Immediately	$ 59.54
22	3161259		Screw,switch Mtg ,6-32 X 0 .19 ,(2) ,sems				$ 6.83
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976804		Indicator,timer Pointer ,white/dark Gray,washer				$ 36.33
27	131892100		Screw,6-20b X 0.230		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
39	131753000		Switch,dryer Temp ,4 Posn Rotary		Appelez-nous	-
21A	134043200		Knob,washer Timer ,white			Immediately	$ 49.62
F10	134399700		Switch,start ,turn Type   (Replaces: 131447500)			Immediately	$ 83.77
F15	131620800		Switch,temp Selector ,3 Posn Rotary		Appelez-nous	-
F23	131848700		Wiring Harness,main		Appelez-nous	-
F29	134113400		Wiring Harness,washer ,lower		Appelez-nous	-
F38	5303286537		Buzzer				$ 93.61
F6	134122200		Wiring Harness,washer Control ,w/temp Switch		Appelez-nous	-
F8	134049600		Timer,washer				$ 360.19
NI	5304464772		Strap,plastic   (Replaces: 5303161300)				$ 10.63
NI	131209800		Clamp,hose ,pressure Switch				$ 65.92
