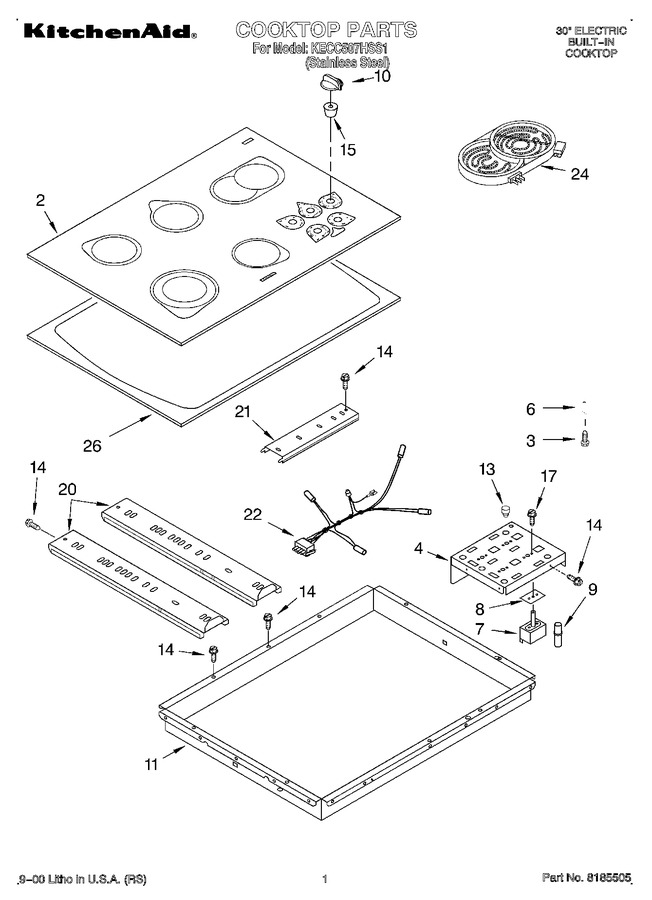

01 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 3192581 | Cooktop, Glass |
|
- | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 4455420 | Bracket, Switch |
|
- | |||||
| 6 | 3191791 | Spring, Locator (8) |
|
- | |||||
| 7 | WP3191049 | Switch, Infinite (rf - Lr - Center) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 7 | 8203534 | Switch, Infinite (lf - Rr) (Replaces: 3188516) |
|
Immediately | $ 151.20 | ||||
| 8 | 3183956 | Seal, Switch Shaft |
|
$ 41.81 | |||||
| 9 | 3193012 | Light, Indicator |
|
$ 99.17 | |||||
| 10 | WP9750372FF | Knob, Control (4) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 11 | 4455516 | Box, Burner |
|
- | |||||
| 13 | 3192477 | Bumper, Silicone |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 17 | WP486579 | Screw (Replaces: 311865) |
|
$ 6.61 | |||||
| 20 | 3191515 | Rail, Element (2) |
|
- | |||||
| 21 | 3192269 | Rail, Element (1) |
|
- | |||||
| 22 | 3192222 | Lamp, Hot Surface Indicator |
|
- | |||||
| 24 | 4452743 | Element, Surface (1500w - Lr) |
|
- | |||||
| 24 | 4452742 | Element, Surface (1200w - Rf) |
|
- | |||||
| 24 | W10491984 | Element, Surface (seal, Limiter) (Replaces: 3192439) |
|
$ 10.33 | |||||
| 24 | W10823699 | Element, Surface (1500w - Center) (Replaces: 8272564) |
|
Immediately | $ 145.67 | ||||
| 24 | W10823692 | Element, Surface (1000/2400w - Lf) (Replaces: 8272563) |
|
Immediately | $ 204.83 | ||||
| 24 | 3192737 | Element, Surface (seal, Heat) |
|
$ 35.16 | |||||
| 24 | 4452741 | Element, Surface (1000/1800w - Rr) |
|
- | |||||
| 26 | 8284628 | Frame, Cooktop |
|
- | |||||
| LIT3191797 | Wiring Diagram |
|
- | ||||||
| 3192221 | Conduit Assy. |
|
- | ||||||
| LIT8284718 | Use & Care Guide |
|
- | ||||||
| LIT3192799 | Installation Instructions |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 3192408 | Bracket, Support |
|
- | ||||||
| 4455364 | Bracket, Support |
|
$ 82.35 | ||||||
| 3172515 | Mtg. Hardware Kit |
|
- | ||||||
| 4455275 | Wiring Harness Surface Unit |
|
- | ||||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| LIT3191638 | Safer Cooking Tips |
|
- |
