SELECT A DIAGRAM

01 - Cover

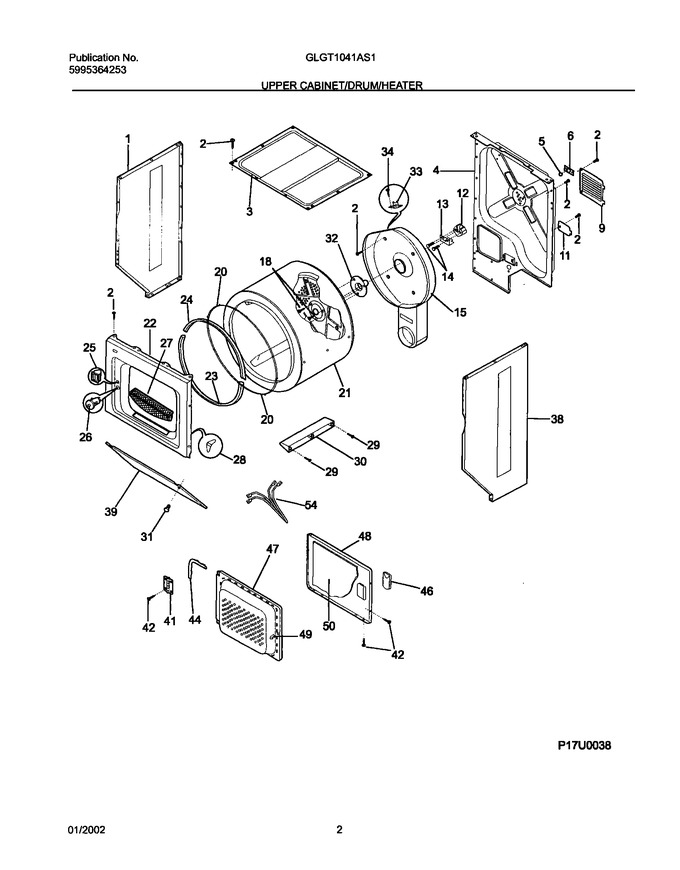

03 - Dry Cab,drm,htr


05 - Dry Mtr,belt


07 - Control Panel


09 - Wshr Cab,top


11 - Wshr Mtr,hose


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131084700		Panel-left Side-white				$ 93.82
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131883301		Panel-top Washed				$ 276.98
4	131752302		Panel-rear		Appelez-nous	-
5	5303281019		Ball				$ 16.30
6	5303281020		Clip-ball				$ 17.01
9	3204249		Panel-access,dryer		Appelez-nous	-
11	5303207395		Cover-term Block		Appelez-nous	-
12	131825900		Bearing-drum Support			Immediately	$ 10.97
13	131724301		Bracket-bearing   (Replaces: 131724300)			Immediately	$ 25.66
14	131205400		Screw-bracket, 10-16b X 1.375, Cr/sq Drive				$ 12.76
15	5303207394		Housing-heat & Duct				$ 385.88
18	131168200		Screw-shaft & Baffle, Comb Ph Ab Spcl, 10-16 X .375   (Replaces: 131477000)			Immediately	$ 14.18
20	137513300		Glide-drum   (Replaces: 131963900)			Immediately	$ 36.68
21	134122572		Asmy-drum				$ 438.74
22	134031600		Panel-front				$ 240.40
23	5303937183		Lower Felt   (Replaces: 134134700)			Immediately	$ 35.87
24	5303937182		Felt-upper   (Replaces: 134036400)			Immediately	$ 26.89
25	131658800		Catch-door			Immediately	$ 68.38
27	5304516871		Trap-lint   (Replaces: 131359600)			Immediately	$ 35.83
28	5303281074		Clip-guide,(3)				$ 18.27
29	131382300		Screw-vane, Quadrex Head, 10-14 X 1.00, Special			Immediately	$ 13.46
30	137552900		Vane   (Replaces: 5303201200)				$ 54.95
31	131202300		Screw-, Pph Ab, 10-16 X 0.625			Immediately	$ 13.46
32	131777700		Asmy-shaft (ballhitch)			Immediately	$ 71.87
33	5304406099		Thermostat-safety			Immediately	$ 120.58
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
38	131084800		Panel-right Side-white		Appelez-nous	-
39	137546910		Panel-access-white   (Replaces: 131084402)				$ 184.19
41	134222900		Hinge-door   (Replaces: 131627500)				$ 22.68
42	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
44	137551901		Gasket-door   (Replaces: 131129900)			Immediately	$ 41.00
46	131789400		Handle-door, White			Immediately	$ 63.79
47	137365110		Door-inner, White   (Replaces: 131579103)				$ 229.64
48	131789303		Door-outer, White				$ 168.47
49	5303207102		Strike Door   (Replaces: 5303211430)			Immediately	$ 19.85
50	134535300		Shield-heat   (Replaces: 3204286)				$ 60.25
F26	5308001614		Switch-door		Appelez-nous	-
F54	131498900		Harness-door Switch				$ 58.46
NI	137576600		Plug-light Hole   (Replaces: 131870700)			Immediately	$ 14.18

    View Diagram in Separate Window       Print Part List
