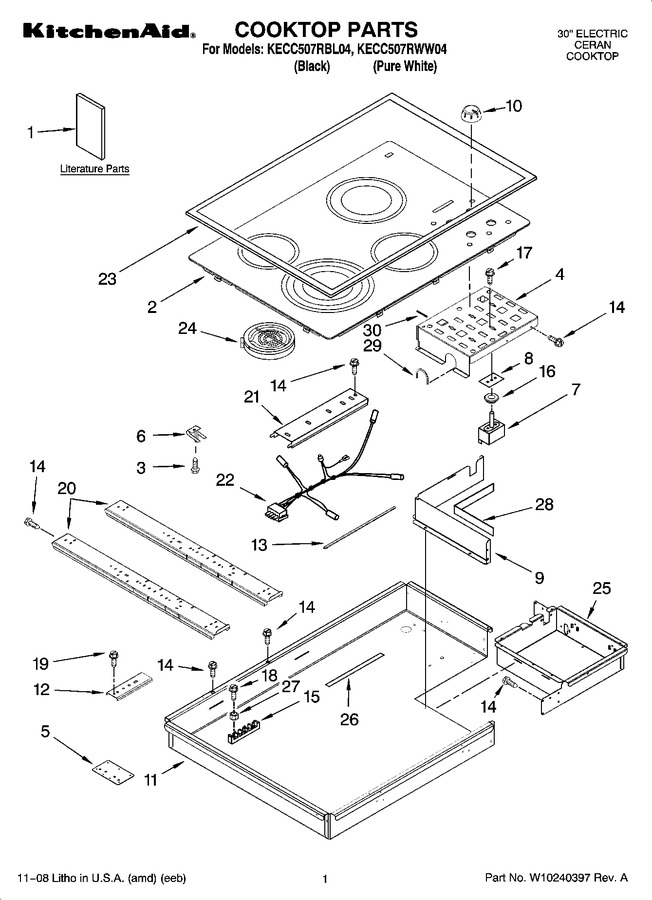

01 - Cooktop Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286066		Installation Instructions (cooktop)		Appelez-nous	-
1	9759133		Safer Cooking Tips (french)		Appelez-nous	-
1	8286447		Wiring Diagram		Appelez-nous	-
1	8286608		Use & Care Guide		Appelez-nous	-
1	8304571		Installation Instructions (undercounter Oven)		Appelez-nous	-
1	3191638		Safer Cooking Tips (english)		Appelez-nous	-
2	W10322778		Cooktop, Glass (white)   (Replaces: 8286960)				$ 423.30
2	W10322778		Cooktop, Glass (black)   (Replaces: 8286959)				$ 423.30
3	WP486754		Screw   (Replaces: 246119)				$ 6.75
4	8285935		Bracket, Switch Mounting		Appelez-nous	-
5	8286535		Bracket, Bottom				$ 41.45
6	9759094		Spring, Locator (8)				$ 6.34
7	9763765		Switch, Infinite (triple)				$ 209.72
7	9763763		Switch, Infinite (single (2))				$ 155.07
7	9763764		Switch, Infinite (dual)				$ 166.92
8	3183956		Seal, Switch Shaft				$ 41.81
9	8286577		Wall, Inside		Appelez-nous	-
10	WP8286096BL		Knob, Control (4) (black)   (Replaces: 8286096BL)				$ 25.33
10	8286096WH		Knob, Control (4) (white)		Appelez-nous	-
11	8286554		Box, Burner		Appelez-nous	-
12	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
13	8285240		Seal, Heat				$ 65.35
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
16	8285469		Seal, Switch (black)				$ 45.00
16	8286596		Seal, Switch (white)		Appelez-nous	-
17	WP486579		Screw   (Replaces: 311865)				$ 6.61
18	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
19	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
20	9763517		Rail, Element				$ 62.80
21	8286344		Rail, Element		Appelez-nous	-
22	8286055		Lamp, Hot Surface Indicator				$ 81.82
23	W10142240		Frame, Cooktop (stainless Only)				$ 227.45
24	8285937		Element, Surface (2000/1000w Rr)				$ 141.19
24	W10823711		Element, Surface (1200w - Lr)   (Replaces: 8523698)			Immediately	$ 183.95
24	W10823699		Element, Surface (1500w - Rf)   (Replaces: 8523697)			Immediately	$ 145.67
24	WP8286187		Element, Surface (2500/1800/900w Lf)   (Replaces: 8286187)				$ 296.03
25	8286573		Box, Control		Appelez-nous	-
26	8285426		Seal, Heat Shield				$ 37.84
27	WP112432		Nut   (Replaces: 112432)				$ 7.16
28	8286599		Inside Wall, Insulation		Appelez-nous	-
29	8286607		Grommet, Flexible (2)		Appelez-nous	-
30	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.33
	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 105.67
	8286238		Thermostat				$ 151.97
	8286338		Conduit, Harness		Appelez-nous	-
	WP3400015		Screw   (Replaces: 3400015)				$ 6.47
	8286382		Clip, Harness		Appelez-nous	-
	8286467		Harness, Main				$ 167.65
