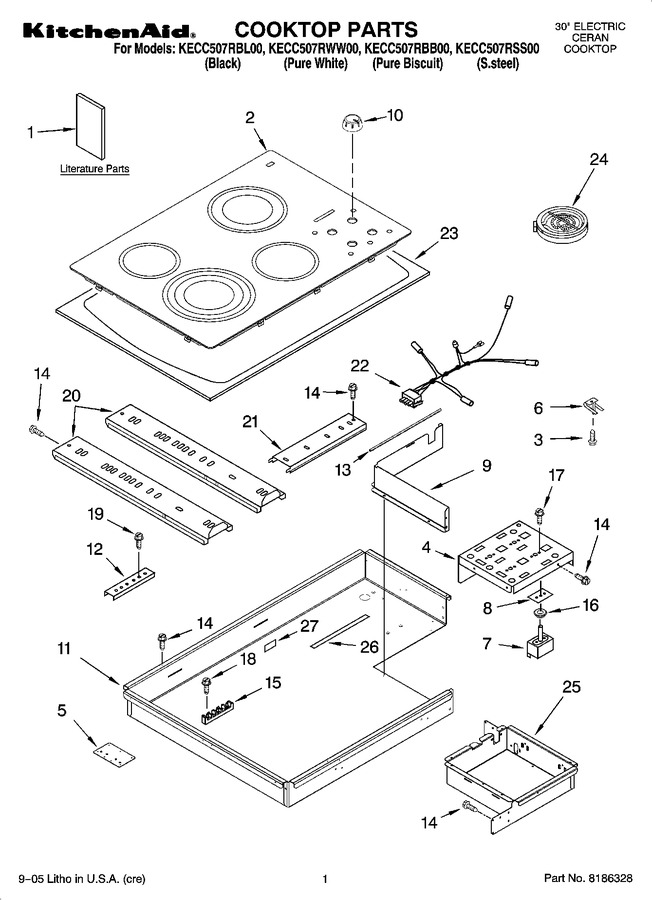

01 - Cooktop Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286061		Energuide Label		Appelez-nous	-
1	8286066		Installation Instructions		Appelez-nous	-
1	8286429		Wiring Diagram		Appelez-nous	-
1	8286067		Use & Care Guide		Appelez-nous	-
1	3191638		Safer Cooking Tips		Appelez-nous	-
1	9759133		Safer Cooking Tips		Appelez-nous	-
2	W10322778		Cooktop, Glass (s.steel)   (Replaces: 8286209)				$ 423.30
2	8286211		Cooktop, Glass (biscuit)		Appelez-nous	-
2	W10322778		Cooktop, Glass (white)   (Replaces: 8286212)				$ 423.30
2	W10322778		Cooktop, Glass (black)   (Replaces: 8286210)				$ 423.30
3	WP486754		Screw   (Replaces: 246119)				$ 6.75
4	8285935		Bracket, Switch Mounting		Appelez-nous	-
5	8286535		Bracket, Bottom				$ 41.45
6	9759094		Spring, Locator (8)				$ 6.34
7	8286464		Switch, Infinite (single (2))		Appelez-nous	-
7	8286465		Switch, Infinite (dual)		Appelez-nous	-
7	8286466		Switch, Infinite (triple)		Appelez-nous	-
8	3183956		Seal, Switch Shaft				$ 41.81
9	8286577		Wall, Inside (heat Shield)		Appelez-nous	-
10	8286096WH		Knob, Control (4) (white)		Appelez-nous	-
10	WP8286096BL		Knob, Control (4) (black)   (Replaces: 8286096BL)				$ 25.33
10	8286096WH		Knob, Control (4) (biscuit)   (Replaces: 8286096BT)		Appelez-nous	-
10	8286096CM		Knob, Control (4) (cashmere Metal)				$ 44.71
11	8286554		Box, Burner		Appelez-nous	-
12	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
13	8285240		Seal, Heat				$ 65.35
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
16	8286596		Seal, Switch (clear)		Appelez-nous	-
16	8285469		Seal, Switch (black)				$ 45.00
17	WP486579		Screw   (Replaces: 311865)				$ 6.61
18	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
19	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
20	8286585		Rail, Element (2)		Appelez-nous	-
21	8286344		Rail, Element (1)		Appelez-nous	-
22	8286055		Lamp, Hot Surface Indicator				$ 81.82
23	8285709		Frame, Cooktop (s.steel Mdl Only)		Appelez-nous	-
24	W10823711		Element, Surface (1200w - Lr)   (Replaces: 8523698)			Immediately	$ 183.95
24	8285937		Element, Surface (2000/1000w Rr)				$ 141.19
24	WP8286187		Element, Surface (2500/1800/900w Lf)   (Replaces: 8286187)				$ 296.03
24	W10823699		Element, Surface (1500w - Rf)   (Replaces: 8523697)			Immediately	$ 145.67
25	8286573		Box, Control		Appelez-nous	-
26	8285426		Seal, Heat Shield				$ 37.84
27	WP112432		Nut, 10-32 Hex   (Replaces: 112432)				$ 7.16
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	WP3400015		Screw, 10-32 X 3/8   (Replaces: 3400015)				$ 6.47
	8286382		Clip, Harness		Appelez-nous	-
	8286467		Wiring Harness				$ 167.65
	3191048		Cleaner, Glass		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	4456028		Wire, Jumper				$ 22.62
	3192408		Bracket, Support (2)		Appelez-nous	-
	3172515		Mtg. Hardware Kit		Appelez-nous	-
	8286238		Thermostat (100c-94c)				$ 151.97
	N/A		Wiring Harness Parts		Appelez-nous	-
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	8286338		Conduit, Harness		Appelez-nous	-
