SELECT A DIAGRAM

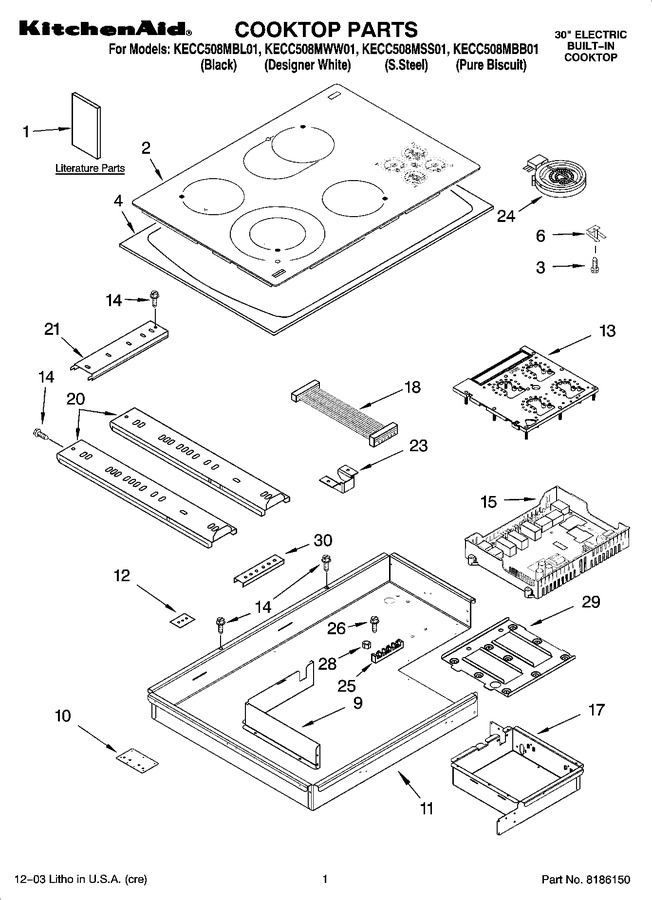

01 - Cooktop Parts, Miscellaneous Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8285627 | Tech Sheet |
|
- | |||||
| 1 | LIT8285316 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8285368 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 2 | 8285389 | Cooktop, Glass (stainless Steel) |
|
$ 391.00 | |||||
| 2 | 8285387 | Cooktop, Glass (designer White) |
|
- | |||||
| 2 | 8285388 | Cooktop, Glass (pure Biscuit) |
|
- | |||||
| 2 | 8285313 | Cooktop, Glass (black) |
|
$ 425.74 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 8284627 | Frame, Cooktop (stainless Steel Model Only) |
|
$ 263.63 | |||||
| 6 | 3191791 | Spring, Locator (8) |
|
- | |||||
| 9 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 9 | 8285571 | Wall, Inside |
|
- | |||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 10 | 8285534 | Bracket, Bottom |
|
- | |||||
| 11 | 8285172 | Box, Burner |
|
- | |||||
| 12 | W10491984 | Seal, Switch Shaft (Replaces: 3192439) |
|
$ 10.33 | |||||
| 13 | 8285617 | Board, Control |
|
$ 368.16 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 15 | 8285346 | Board, Power |
|
$ 241.48 | |||||
| 17 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 17 | 4456923 | Box, Touch Control |
|
- | |||||
| 18 | W10155097 | Cable Ass`y (Replaces: 8285319) |
|
$ 74.66 | |||||
| 20 | 8285104 | Rail, Element (2) |
|
- | |||||
| 21 | 3192268 | Rail, Element (1) |
|
- | |||||
| 23 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 23 | 8285568 | Cover, Harness |
|
- | |||||
| 24 | 8285233 | Element, Surface (1000/2400w Lf) |
|
- | |||||
| 24 | WP8285230 | Element, Surface (1200w Rf - Lr) (Replaces: 8285230) |
|
Immediately | $ 215.70 | ||||
| 24 | W10823693 | Element, Surface (1800w Rr) (Replaces: 8285468) |
|
Immediately | $ 205.87 | ||||
| 25 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 26 | WP3196163 | Screw, 10-16 X 7/8 (Replaces: 3196163) |
|
$ 6.26 | |||||
| 28 | WP112432 | Nut, 10-32 Hex (Replaces: 112432) |
|
$ 7.16 | |||||
| 29 | 4456921 | Support, Module |
|
- | |||||
| 30 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 30 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 4456147 | Cleaner, Glass |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 3192408 | Bracket, Support (2) |
|
- | ||||||
| 3172515 | Mtg. Hardware Kit |
|
- | ||||||
| 8285470 | Wiring Harness Surface Unit Fe02313 Bushing |
|
- | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 8285599 | Conduit Assy. |
|
- |
