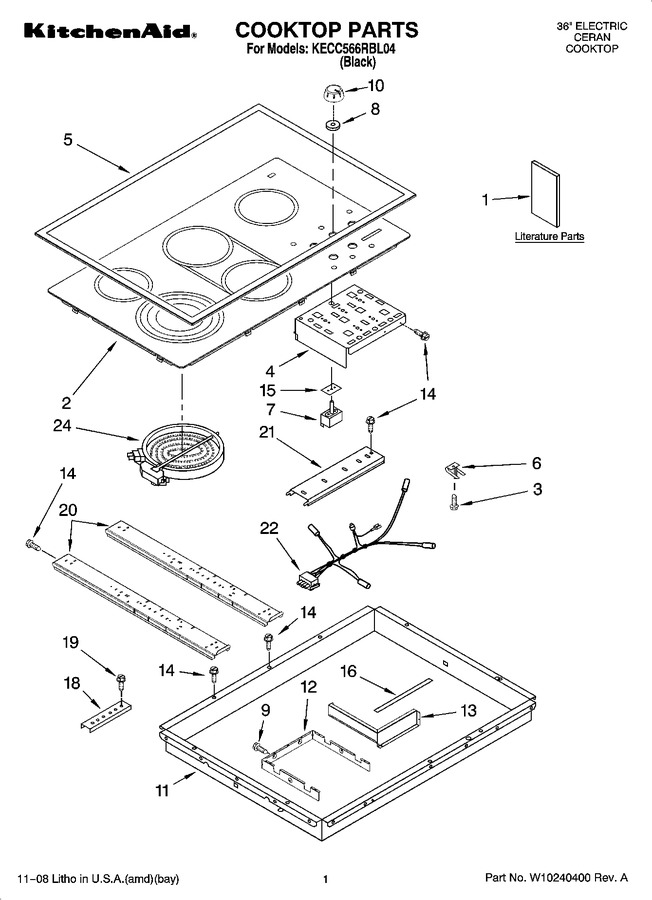

01 - Cooktop Parts, Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8286062 | Energuide Label |
|
- | |||||
| 1 | 8286066 | Instructions Installation |
|
- | |||||
| 1 | 8304571 | Instrctions-canada |
|
- | |||||
| 1 | 8286074 | Wiring Diagram |
|
- | |||||
| 1 | 8286608 | Use & Care Guide |
|
- | |||||
| 1 | 3191638 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | 9759133 | Safer Cooking Tips (french) |
|
- | |||||
| 2 | W10739033 | Cooktop, Glass (black) (Replaces: 8286947) |
|
$ 562.60 | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | 8285808 | Bracket, Switch |
|
- | |||||
| 5 | W10142239 | Frame, Cooktop (stainless Only) |
|
$ 240.36 | |||||
| 6 | 9759094 | Spring Locator (10) |
|
$ 6.34 | |||||
| 7 | WP8286070 | Switch, Infinite (triple-lf) (Replaces: 8286070) |
|
Immediately | $ 144.91 | ||||
| 7 | WP4456027 | Switch, Infinite (dual-ctr Front) (Replaces: 4456027) |
|
$ 138.70 | |||||
| 7 | WP3191050 | Switch, Infinite (1500w Rr) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 7 | WP3191049 | Switch, Infinite (1200w Lr-crt Rear) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 8 | 8285469 | Seal, Switch Shaft |
|
$ 45.00 | |||||
| 9 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 10 | WP8286096BL | Knob, Control (5) (black) (Replaces: 8286096BL) |
|
$ 25.33 | |||||
| 11 | 8286556 | Box, Burner |
|
- | |||||
| 12 | 9760762 | Shield, Heat |
|
- | |||||
| 13 | 8286218 | Shield, Heat Control |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 3183956 | Seal, Switch Cover |
|
$ 41.81 | |||||
| 16 | 3191839 | Seal, Heat Shield |
|
- | |||||
| 18 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 19 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 20 | 9763517 | Rail, Element |
|
$ 62.80 | |||||
| 21 | 8286345 | Rail, Element |
|
- | |||||
| 22 | 8286056 | Lamp, Hot Surface Indicator |
|
- | |||||
| 24 | W10823711 | Element, Surface (1200w - Lr) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 24 | W10823695 | Element, Surface (4300w Center) (Replaces: 8285848) |
|
Immediately | $ 291.55 | ||||
| 24 | 8285846 | Element, Surface (triple Lf) |
|
$ 175.07 | |||||
| 24 | W10823699 | Element, Surface (1500w - Rr) (Replaces: 8523697) |
|
Immediately | $ 145.67 | ||||
| W10491985 | Screw, Ground (Replaces: 3196160) |
|
Immediately | $ 6.47 | |||||
| W10491984 | Seal, Switch (Replaces: 3192439) |
|
$ 10.33 | ||||||
| WP3400015 | Screw Ground, Burner Box (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 8286422 | Conduit, Harness |
|
- | ||||||
| 8286382 | Clip, Harness |
|
- | ||||||
| 8286418 | Harness, Main |
|
- | ||||||
| WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | |||||
| 8286607 | Grommet-flexible |
|
- | ||||||
| 8286582 | Clip, Bridge (3) |
|
- |
