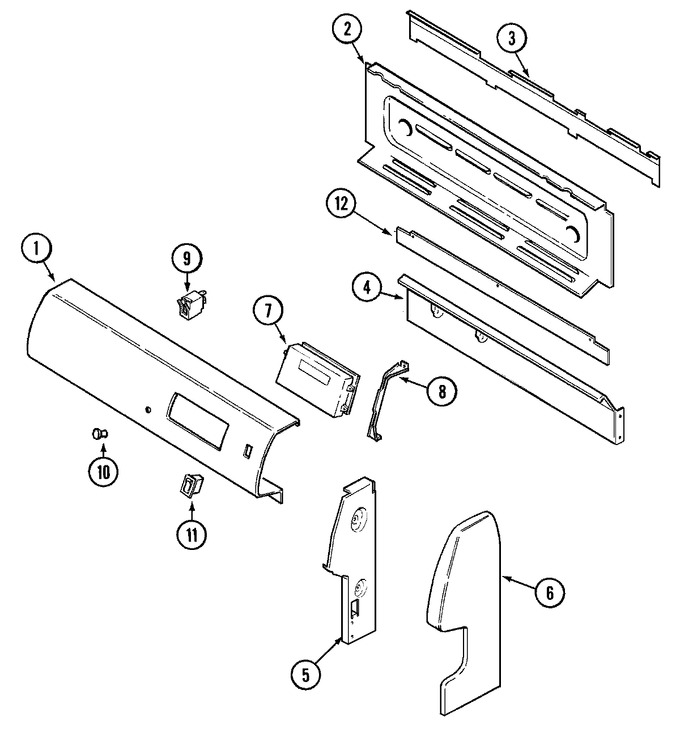

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74004647		Panel, Control (wht)	10	Appelez-nous	-
2	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
2	74003493		Housing, Control Panel	10	Appelez-nous	-
3	74004551		Extension, Control Panel	10	Appelez-nous	-
3	74006376		Extension, Control Panel	16	Appelez-nous	-
3	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
4	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
4	74003488		Shield, Vent Deflector	10	Appelez-nous	-
5	74003489		Bracket, Control Panel (lt)	10	Appelez-nous	-
5	74003490		Bracket, Control Panel (rt)	10	Appelez-nous	-
5	74002451		Screw (1 3/16``-wht)	10	Appelez-nous	-
6	74003608		End Cap, Control Pnl (lt-wht)	10			$ 41.41
6	74003607		End Cap, Control Pnl (rt-wht)	10			$ 45.23
6	WP98008544		Screw (1/2``-wht)   (Replaces: 7101P373-60)	10			$ 11.89
7	WP59002061		Screw (6abx3/8-sn)   (Replaces: 74004288)	10			$ 6.98
7	74001474		Clock (wht)	10	Appelez-nous	-
7	74004802		Clock (wht)	11	Appelez-nous	-
7	74006055		Clock (wht)	14	Appelez-nous	-
8	74003602		Bracket, Clock	10	Appelez-nous	-
8	7101P348-60		Screw (wht)	10	Appelez-nous	-
9	WP74004153		Light, Indicator   (Replaces: 74004153)	10		Immediately	$ 8.02
10	WP7730P011-60		Lens, Indicator Light   (Replaces: 7730P011-60)	10			$ 5.16
11	74008717		Switch, Rocker (wht)   (Replaces: 74003364)	10			$ 72.68
12	8036P003-60		Shield, Sight	10	Appelez-nous	-
12	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
13	12001323		Wire/terminal Kit	10	Appelez-nous	-
14	74004762		Harness, Control Panel	10	Appelez-nous	-
15	74004367		Manual, Use & Care	10	Appelez-nous	-
16	16010161		Manual, Srvc Elec/gas Range	10	Appelez-nous	-
