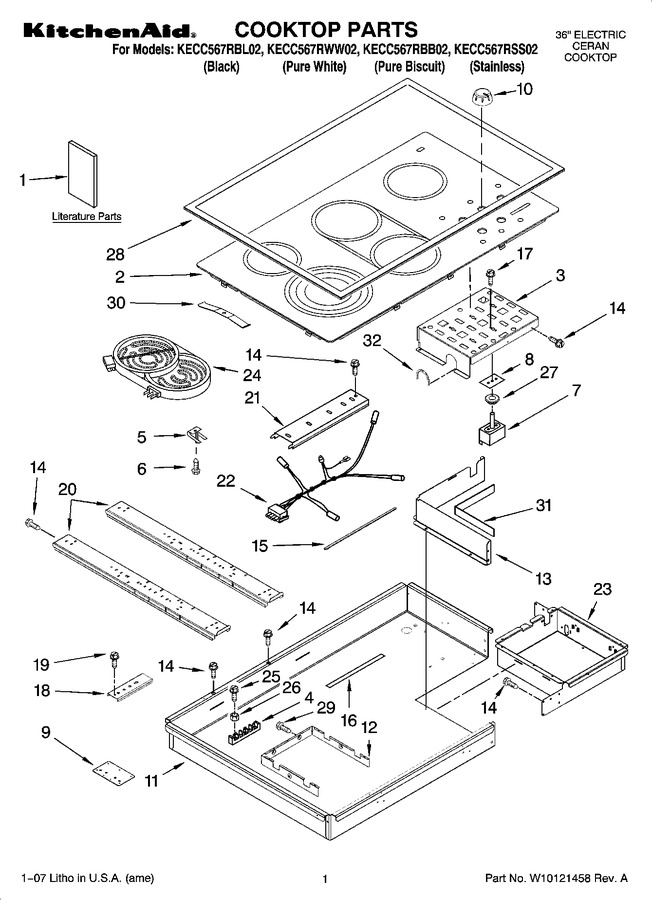

01 - Cooktop Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8286608		Use & Care Guide		Appelez-nous	-
1	8286066		Installation Instructions (cooktop)		Appelez-nous	-
1	8304571		Installation Instructions (undercounter Oven)		Appelez-nous	-
1	8286430		Wiring Diagram		Appelez-nous	-
1	8286062		Energuide Label		Appelez-nous	-
1	3191638		Safer Cooking Tips (english)		Appelez-nous	-
1	9759133		Safer Cooking Tips (french)		Appelez-nous	-
2	W10048760		Cooktop, Glass (biscuit)		Appelez-nous	-
2	W10048770		Cooktop, Glass (black)		Appelez-nous	-
2	W10048750		Cooktop, Glass (white)		Appelez-nous	-
3	8285808		Bracket, Switch		Appelez-nous	-
4	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
5	9759094		Spring Locator (10)				$ 6.34
6	WP486754		Screw (10)   (Replaces: 246119)				$ 6.75
7	9763765		Switch, Infinite (triple)				$ 209.72
7	9763764		Switch, Infinite (dual)				$ 166.92
7	9763763		Switch, Infinite (single (3))				$ 155.07
8	3183956		Seal, Switch Shaft				$ 41.81
9	8286535		Bracket, Bottom				$ 41.45
10	8286096CM		Knob, Control (5) (cashmere Metal)				$ 44.71
10	8286096WH		Knob, Control (5) (white)		Appelez-nous	-
10	8286096WH		Knob, Control (5) (biscuit)   (Replaces: 8286096BT)		Appelez-nous	-
10	WP8286096BL		Knob, Control (5) (black)   (Replaces: 8286096BL)				$ 25.33
11	8286555		Box, Burner		Appelez-nous	-
12	8285817		Shield, Heat		Appelez-nous	-
13	8286578		Inside, Wall		Appelez-nous	-
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	8285242		Seal, Heat				$ 63.49
16	8285439		Seal, Heat Shield				$ 57.27
17	WP486579		Screw   (Replaces: 311865)				$ 6.61
18	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
19	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
20	9763517		Rail, Element				$ 62.80
21	8286345		Rail, Element		Appelez-nous	-
22	8286056		Lamp, Hot Surface Indicator		Appelez-nous	-
23	8286574		Box, Control		Appelez-nous	-
24	W10823695		Element, Surface (4300w (bridge))   (Replaces: 8285848)			Immediately	$ 291.55
24	W10823699		Element, Surface (1500w - Rr)   (Replaces: 8523697)			Immediately	$ 145.67
24	W10823711		Element, Surface (1200w - Lr)   (Replaces: 8523698)			Immediately	$ 183.95
24	WP8286187		Element, Surface (2500/1800/900w Lf)   (Replaces: 8286187)				$ 296.03
25	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
26	WP112432		Nut   (Replaces: 112432)				$ 7.16
27	8286596		Seal, Switch (clear)		Appelez-nous	-
27	8285469		Seal, Switch (black)				$ 45.00
28	8285708		Frame, Cooktop (stainless Only)		Appelez-nous	-
29	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
30	8286582		Spring Clip, Bridge (3)		Appelez-nous	-
31	8286600		Inside Wall, Insulation		Appelez-nous	-
32	8286607		Gromment, Flexible (2)		Appelez-nous	-
	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
	8286238		Thermostat (100c-94c)				$ 151.97
	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
	8286338		Conduit, Harness		Appelez-nous	-
	8286382		Clip, Harness		Appelez-nous	-
	8286468		Harness, Main		Appelez-nous	-
	3191048		Cleaner, Glass		Appelez-nous	-
	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
	242831		Wire (14 Ga. 200 C Red)				$ 342.23
	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
	4456028		Wire, Jumper				$ 22.62
	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 105.67
	W10491984		Seal, Switch   (Replaces: 3192439)				$ 10.33
	3172515		Mtg. Hardware Kit		Appelez-nous	-
	W10491985		Screw, Ground   (Replaces: 3196160)			Immediately	$ 6.47
