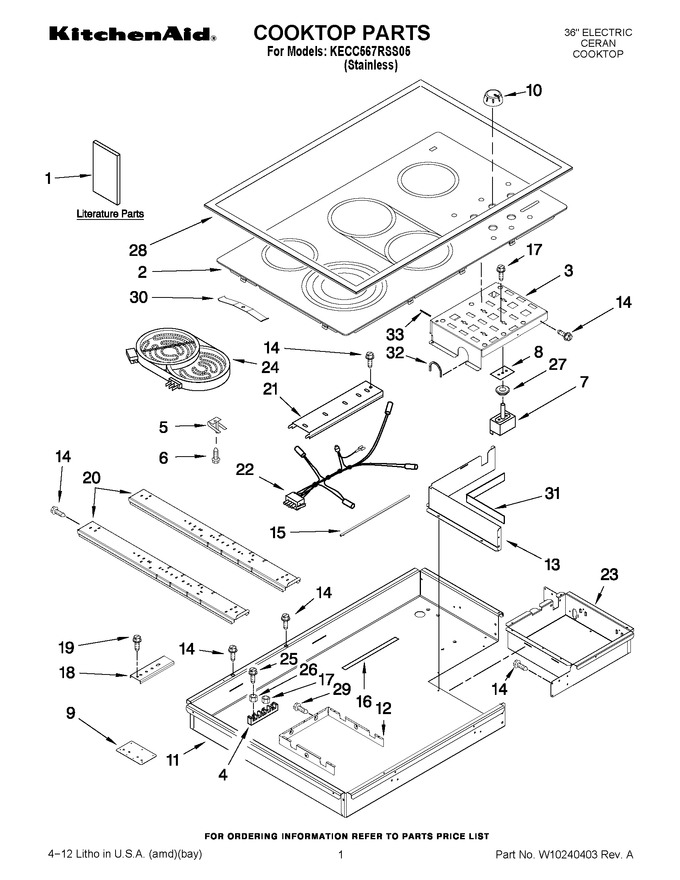

01 - Cooktop Parts


02 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8304571		Undercounter Oven		Appelez-nous	-
1	9762761		Safer Cooking Tips (english		Appelez-nous	-
1	8286066		Installation Instructions (cooktop)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8286430		Wiring Diagram		Appelez-nous	-
1	W10162162		Use & Care Guide		Appelez-nous	-
2	8286975		Cooktop, Glass		Appelez-nous	-
3	8285808		Bracket, Switch		Appelez-nous	-
4	WP8203546		Block, Terminal   (Replaces: 4449868)			Immediately	$ 27.12
5	9759094		Spring Locator(10)				$ 6.34
6	WP486754		Screw (10)   (Replaces: 246119)				$ 6.75
7	9763764		Switch, Infinite (dual)				$ 166.92
7	9763763		Switch, Infinite (single (3))				$ 155.07
7	9763765		Switch, Infinite (triple)				$ 209.72
8	3183956		Seal, Switch Shaft				$ 41.81
9	8286535		Bracket, Bottom				$ 41.45
10	WP8286096BL		Knob, Control (5)   (Replaces: 8286096BL)				$ 25.33
11	8286555		Box, Burner		Appelez-nous	-
12	9760762		Shield, Heat		Appelez-nous	-
13	8286578		Inside, Wall		Appelez-nous	-
14	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
15	8285242		Seal, Heat				$ 63.49
16	8285439		Seal, Heat Shield				$ 57.27
17	WP486579		Screw   (Replaces: 311865)				$ 6.61
18	8186533		Bracket, Mounting   (Replaces: 4455917)				$ 79.60
19	WP3400093		Screw   (Replaces: 3400093)				$ 6.47
20	9763517		Rail, Element				$ 62.80
21	8286345		Rail, Element		Appelez-nous	-
22	8286056		Lamp, Hot Surface Indicator		Appelez-nous	-
23	W10180229		Box, Control		Appelez-nous	-
24	W10823695		Element, Surface (4300w (bridge))   (Replaces: 8285848)			Immediately	$ 291.55
24	WP8286187		Element, Surface (2500/1800/900w Lf)   (Replaces: 8286187)				$ 296.03
24	W10823711		Element, Surface (1200w Lr)   (Replaces: 8523698)			Immediately	$ 183.95
24	W10823699		Element, Surface (1500w Rr)   (Replaces: 8523697)			Immediately	$ 145.67
25	WP3196163		Screw   (Replaces: 3196163)				$ 6.26
26	WP112432		Nut   (Replaces: 112432)				$ 7.16
27	8285469		Seal, Switch				$ 45.00
28	W10142239		Frame, Cooktop				$ 240.36
29	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.47
30	8286582		Spring Clip,bridge (3)		Appelez-nous	-
31	8286600		Inside Wall, Insulation		Appelez-nous	-
32	8286607		Gromment, Flexible (2)		Appelez-nous	-
33	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.33
