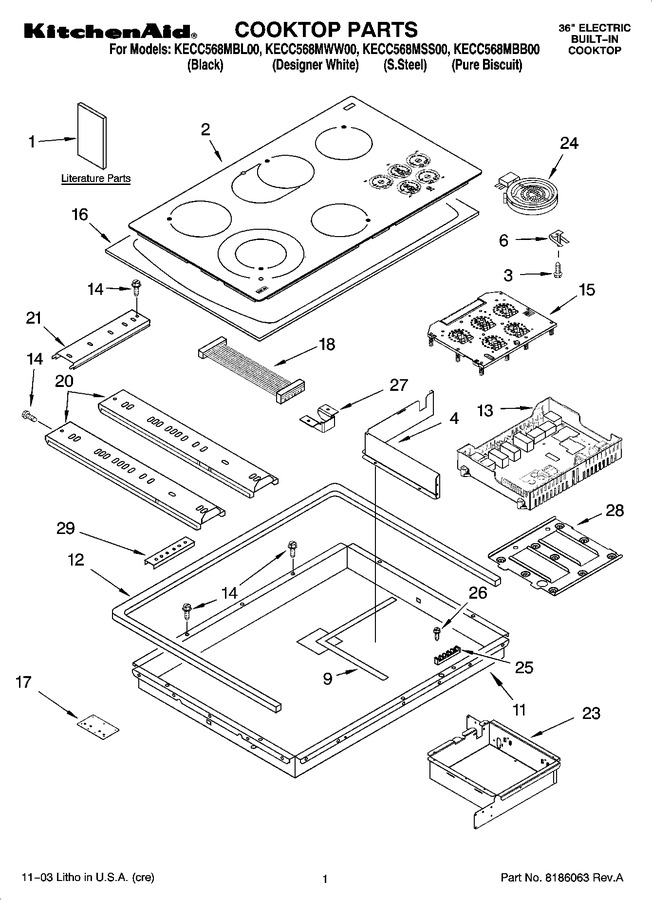

01 - Cooktop Parts, Miscellaneous Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8285368 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT3191638 | Safer Cooking Tips |
|
- | |||||
| 1 | LIT8285316 | Literature Parts (installation Instructions) |
|
- | |||||
| 1 | LIT8285517 | Literature Parts (tech Sheet) |
|
- | |||||
| 2 | 8285390 | Cooktop, Glass (designer White) |
|
- | |||||
| 2 | 8285315 | Cooktop, Glass (black) |
|
$ 194.18 | |||||
| 2 | 8285392 | Cooktop, Glass (stainless Steel) |
|
- | |||||
| 2 | 8285391 | Cooktop, Glass (pure Biscuit) |
|
- | |||||
| 3 | WP486754 | Screw (Replaces: 246119) |
|
$ 6.75 | |||||
| 4 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 4 | 8285573 | Wall, Inside |
|
- | |||||
| 6 | 3191791 | Spring, Locator (10) |
|
- | |||||
| 9 | 8285242 | Seal, Heat Shield |
|
$ 63.49 | |||||
| 11 | 8285184 | Box, Burner |
|
- | |||||
| 12 | 3192737 | Seal, Burner Box |
|
$ 35.16 | |||||
| 13 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 6.74 | |||||
| 13 | 8285347 | Board, Power |
|
$ 239.18 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 15 | 8285583 | Board, Control |
|
- | |||||
| 16 | 8284628 | Frame, Cooktop (s.steel Only) |
|
- | |||||
| 17 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 17 | 8285534 | Bracket, Bottom |
|
- | |||||
| 18 | 8285323 | Cable Ass`y |
|
- | |||||
| 20 | 8285104 | Rail, Element (2) |
|
- | |||||
| 21 | 3192269 | Rail, Element (1) |
|
- | |||||
| 23 | 8285597 | Box, Touch Control |
|
- | |||||
| 23 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 24 | 8285231 | Element, Surface (1500w Lr) |
|
$ 144.18 | |||||
| 24 | W10823693 | Element, Surface (1800w Cr) (Replaces: 8285468) |
|
Immediately | $ 205.87 | ||||
| 24 | WP8285230 | Element, Surface (1200w Rf-rr) (Replaces: 8285230) |
|
Immediately | $ 215.70 | ||||
| 24 | 8285233 | Element, Surface (1000/2400w Lf) |
|
- | |||||
| 25 | WP8203546 | Block, Terminal (Replaces: 4449868) |
|
Immediately | $ 27.12 | ||||
| 26 | WP3196163 | Screw, 10-16 X 7/8 (Replaces: 3196163) |
|
$ 6.26 | |||||
| 27 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.47 | ||||
| 27 | 8285568 | Cover, Harness |
|
- | |||||
| 28 | 8285595 | Support, Module |
|
- | |||||
| 29 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.47 | |||||
| 29 | 8186533 | Bracket, Mounting (Replaces: 4455917) |
|
$ 79.60 | |||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 8285471 | Harness, Main |
|
- | ||||||
| 3192408 | Bracket, Support (2) |
|
- | ||||||
| N/A | Wiring Harness Parts |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 8285366 | Conduit |
|
- | ||||||
| WP3400015 | Screw, Ground (Replaces: 3400015) |
|
$ 6.47 | ||||||
| 3191048 | Cleaner, Glass |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- |
