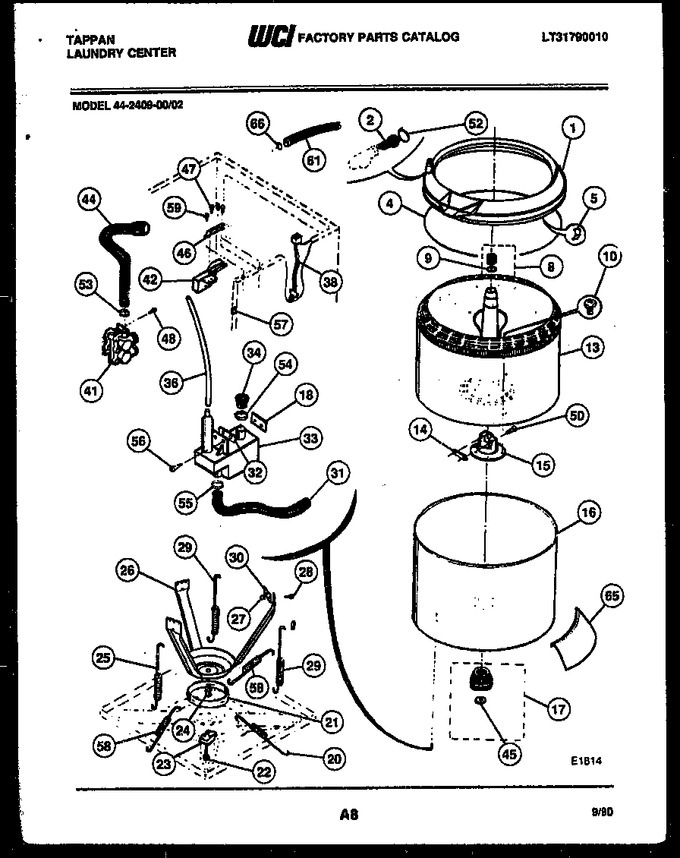

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205029 | Tub Cover |
|
$ 214.10 | |||||
| 2 | 08027515 | Check Valve |
|
- | |||||
| 4 | 3161121 | Seal |
|
- | |||||
| 5 | 3161199 | Clip |
|
- | |||||
| 8 | 3161122 | Agitator Cap (includes 9) |
|
- | |||||
| 9 | F073565-000 | Washer |
|
- | |||||
| 10 | 08027519 | Screw |
|
- | |||||
| 11 | 3161485 | Agitator |
|
- | |||||
| 13 | 3161486 | Spin Tub |
|
- | |||||
| 14 | 08001923 | Lockplate |
|
- | |||||
| 15 | 08014908 | Trunnion |
|
- | |||||
| 16 | 3161127 | Splash Tub |
|
- | |||||
| 17 | 08027536 | Bearing Housing Assy. |
|
- | |||||
| 18 | 3161283 | Speednut |
|
- | |||||
| 20 | 08006564 | Spring Horizontal (long) |
|
- | |||||
| 21 | 08002385 | Snubber Ring |
|
- | |||||
| 22 | 3161284 | Bolt-shipping |
|
- | |||||
| 23 | 3161202 | Block-shipping |
|
- | |||||
| 24 | 3161203 | Nut |
|
- | |||||
| 25 | 3161131 | Spring-vert-short |
|
- | |||||
| 26 | 3161132 | Leg & Dome Assy |
|
- | |||||
| 27 | 3161204 | Nut (6) |
|
- | |||||
| 28 | 3161205 | Screw (6) |
|
- | |||||
| 29 | 3161133 | Spring (long 2) |
|
- | |||||
| 30 | 3161134 | Plate |
|
- | |||||
| 31 | 08008997 | Hose-pump To Trap |
|
- | |||||
| 32 | 3161285 | Shim |
|
- | |||||
| 33 | F077276-000 | Button Trap |
|
- | |||||
| 34 | 3161286 | Grommet |
|
- | |||||
| 36 | 08015785 | Tube-pressure |
|
- | |||||
| 38 | 3204998 | Harness-lower Washer Motor |
|
- | |||||
| 41 | 08015532 | Valve Water |
|
- | |||||
| 42 | 3205033 | Lid Lock |
|
$ 40.69 | |||||
| 44 | 3205034 | Hose-valve To Inlet |
|
- | |||||
| 45 | 08002401 | Thrust Washer |
|
- | |||||
| 46 | 3205035 | Bracket |
|
- | |||||
| 47 | 08011280 | Screw |
|
- | |||||
| 48 | 3010202 | Screw |
|
- | |||||
| 50 | 08027517 | Screw |
|
- | |||||
| 52 | F064154-013 | Clamp |
|
- | |||||
| 53 | 3161207 | Clamp |
|
- | |||||
| 54 | 08002367 | Clamp |
|
- | |||||
| 55 | 08014913 | Clamp |
|
- | |||||
| 56 | 3161274 | Screw |
|
- | |||||
| 57 | 3161287 | Clip |
|
- | |||||
| 58 | 08006573 | Spring-horizontal (short) |
|
- | |||||
| 59 | 3161233 | Screw |
|
- | |||||
| 61 | F140162-000 | Hose-inlet (2) |
|
- | |||||
| 65 | F139128000 | Shield, Motor |
|
- | |||||
| 66 | 3161296 | Washer (4) |
|
- | |||||
| *40061 | 08014892 | Clip-pressure Tube (short) |
|
- | |||||
| *40061 | F133016-000 | Primer Adhesive For Grommet-splash Tub |
|
- | |||||
| *40061 | 08006576 | Adhesive For Grommet-splash Tub |
|
- | |||||
| *40061 | 3161299 | Clip-pressure Tube (long) |
|
- |
