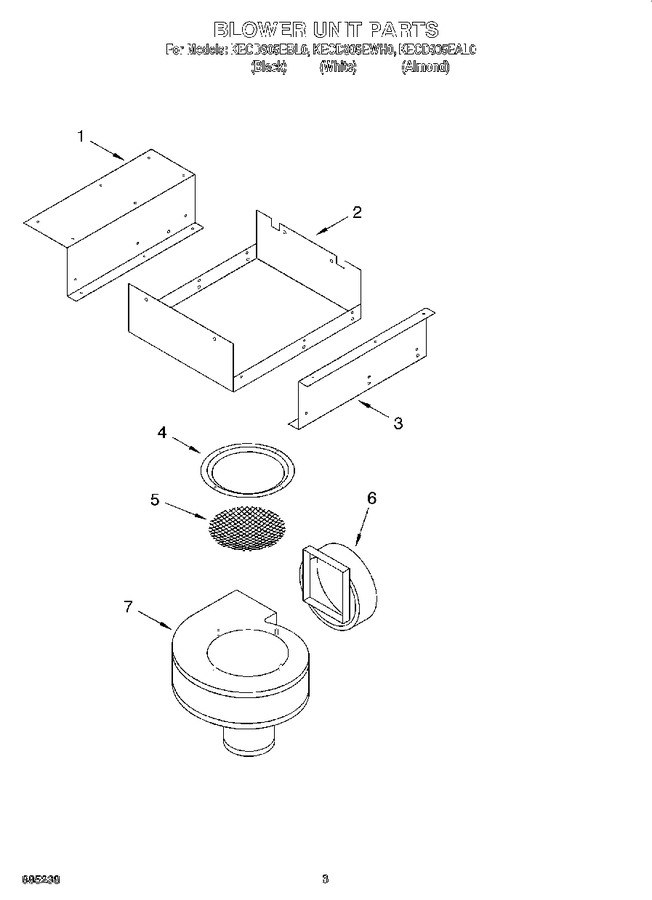

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3190734 | Bracket, Mtg. (left) |
|
- | |||||
| 1 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 2 | 3190732 | Bracket, Mtg. (bottom) |
|
- | |||||
| 2 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 3 | 3190733 | Bracket, Mtg. (right) |
|
- | |||||
| 3 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | 3190735 | Ring, Inlet |
|
- | |||||
| 4 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 5 | 3190947 | Screen, Inlet |
|
- | |||||
| 6 | 3190736 | Adapter, Vent |
|
- | |||||
| 6 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 7 | 3190737 | Blower Motor Asm. (includes Fan Asm) |
|
- | |||||
| 3191020 | Guard, Screw |
|
- | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | ||||||
| 3190652 | Harness, Wire (w/hot Surface Lights Attached) |
|
- | ||||||
| 3190962 | Strain Relief |
|
- | ||||||
| WA906B | Scraper, Glass (Replaces: 3183488) |
|
Immediately | $ 4.86 | |||||
| LIT3190637 | Installation Instructions |
|
- | ||||||
| LIT3190641 | Wiring Diagram |
|
- | ||||||
| LIT3190635 | Use & Care Guide |
|
- | ||||||
| 3172515 | Hardware, Mounting |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire, Red 12 Ga. 150~c |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire, White 14 Ga. 150~c |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | ||||||
| CERAMABRYTE | Cleaner, Glass (Replaces: 3184477) |
|
Immediately | $ 9.95 | |||||
| 3191019 | Harness, Wire (ceran Downdraft) |
|
- | ||||||
| 3190722 | Harness, Wire (blower/switch) |
|
- |
