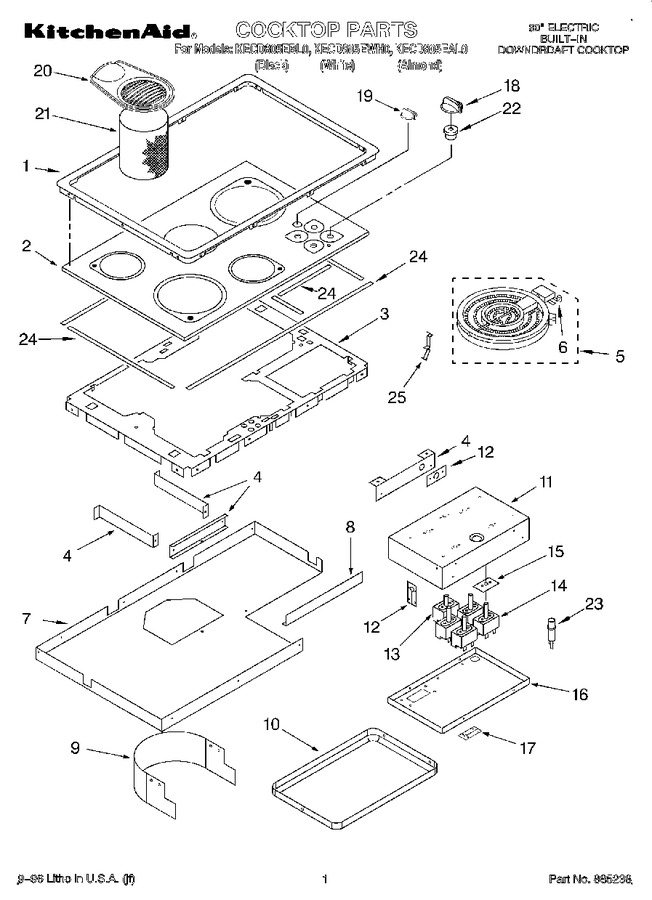

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3190462 | Trim Ring, Cooktop (black Mdl) |
|
- | |||||
| 1 | 3190463 | Trim Ring, Cooktop (white Mdl) |
|
- | |||||
| 1 | 3190464 | Trim Ring, Cooktop (almond Mdl) |
|
- | |||||
| 2 | 3190467 | Glass, Cooktop (almond Mdl) |
|
- | |||||
| 2 | 3190466 | Glass, Cooktop (white Mdl) |
|
- | |||||
| 2 | 3190465 | Glass, Cooktop (black Mdl) |
|
- | |||||
| 3 | 3190487 | Plate, Backer |
|
- | |||||
| 3 | WP3196557 | Screw No.8 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 4 | 3190673 | Bracket, Vent Shield (right Side) |
|
- | |||||
| 4 | 3190675 | Bracket, Vent Shield (front) |
|
- | |||||
| 4 | 3190674 | Bracket, Vent Shield (left Side) |
|
- | |||||
| 5 | 3189896 | Element, Surface (includes Limiter) (l.f. (2100w)) |
|
- | |||||
| 5 | WP486754 | Element, Surface (includes Limiter) (screw No.6-32) (Replaces: 246119) |
|
$ 6.75 | |||||
| 5 | 3189894 | Element, Surface (includes Limiter) (r.f. (1400w)) |
|
- | |||||
| 5 | 3189895 | Element, Surface (includes Limiter) (r.r. (1700w)) |
|
- | |||||
| 5 | W10823704 | Element, Surface (includes Limiter) (l.r. (1200w)) (Replaces: 3196428) |
|
Immediately | $ 309.01 | ||||
| 6 | 3190248 | Limiter (l.r. (1200w)) |
|
- | |||||
| 6 | 3190252 | Limiter (l.f. (2100w)) |
|
- | |||||
| 6 | 3190250 | Limiter (r.r. (1700w)) |
|
- | |||||
| 6 | 3190253 | Limiter (r.f. (1400w)) |
|
- | |||||
| 7 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 7 | 3190488 | Cover, Bottom |
|
- | |||||
| 8 | 3190728 | Bracket, Element Shield |
|
- | |||||
| 8 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9 | 3190658 | Shield, Vent |
|
- | |||||
| 9 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 10 | 3190656 | Drip Bowl, Grease |
|
- | |||||
| 11 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 11 | 3189543 | Bracket, Mounting Control |
|
- | |||||
| 12 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 12 | 3190669 | Grommet, Nomex |
|
- | |||||
| 13 | 3190639 | Switch, Speed Control |
|
$ 62.56 | |||||
| 14 | WP3191050 | Switch, Infinite (rr & Lf) (Replaces: 3191050) |
|
Immediately | $ 149.72 | ||||
| 14 | WP3191049 | Switch, Infinite (lr - Rf) (Replaces: 3191049) |
|
$ 150.25 | |||||
| 14 | WP486579 | Switch, Infinite (screw) (Replaces: 311865) |
|
$ 6.61 | |||||
| 15 | 3183956 | Seal, Switch |
|
$ 41.81 | |||||
| 16 | 3190526 | Cover, Switch Bottom |
|
- | |||||
| 16 | 595095 | Screw |
|
- | |||||
| 17 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 17 | 3190963 | Plate, Cord Mtg |
|
- | |||||
| 18 | 9750372FT | Knob, Infinite (almond Mdl) |
|
- | |||||
| 18 | WP9750372FF | Knob, Infinite (black Mdl) (Replaces: 9750372FF) |
|
Immediately | $ 18.86 | ||||
| 18 | WP9750372FW | Knob, Infinite (white Mdl) (Replaces: 9750372FW) |
|
$ 17.99 | |||||
| 19 | 3190725 | Knob, Blower Switch (almond Mdl) |
|
- | |||||
| 19 | 3190723 | Knob, Blower Switch (black) |
|
- | |||||
| 19 | 3190724 | Knob, Blower Switch (white) |
|
- | |||||
| 20 | 3190662 | Grille, Air |
|
- | |||||
| 21 | 3190671 | Filter, Grease |
|
- | |||||
| 22 | WP3188425 | Seal, Switch (Replaces: 3191387) |
|
$ 82.61 | |||||
| 23 | 4454437 | Light, Indicator |
|
- | |||||
| 24 | 3190667 | Seal, Cooktop (blower Box Sides) |
|
- | |||||
| 24 | 3190665 | Seal, Cooktop (control Side) |
|
- | |||||
| 24 | 3190666 | Seal, Cooktop (sides, Lt & Rt) |
|
- | |||||
| 24 | 3185590 | Seal, Cooktop (front & Rear) |
|
- | |||||
| 24 | 3188852 | Seal, Cooktop (blower Box Front & Control Rear) |
|
- | |||||
| 25 | 3189165 | Clip, Spring |
|
- |
