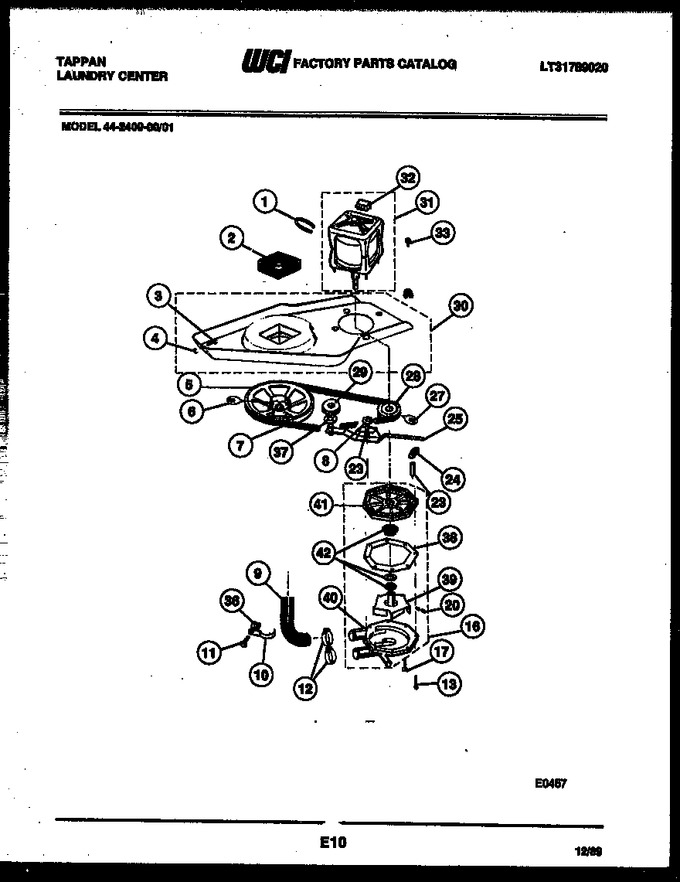

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3161300		Tie		Appelez-nous	-
2	F077009-100		Cushion		Appelez-nous	-
3	3161211		Bolt (3)		Appelez-nous	-
4	3161212		Locknut (3)		Appelez-nous	-
5	3205951		Pulley-transmission		Appelez-nous	-
6	3161456		Set Screw		Appelez-nous	-
7	3161152		Belt		Appelez-nous	-
8	08027535		Bushing		Appelez-nous	-
9	F141127-000		Hose		Appelez-nous	-
10	08004052		Clamp		Appelez-nous	-
11	3161215		Screw		Appelez-nous	-
12	08014914		Clamp		Appelez-nous	-
13	08002390		Screw		Appelez-nous	-
16	3937013		Pump-complete		Appelez-nous	-
17	3161184		Screw		Appelez-nous	-
20	3161217		Screw		Appelez-nous	-
23	3161303		Spacer		Appelez-nous	-
24	08002456		Spring		Appelez-nous	-
25	3937001		Idler Arm Assy.		Appelez-nous	-
27	5303206869		Set Screw		Appelez-nous	-
28	08006686		Pulley-motor		Appelez-nous	-
29	3161159		V-pulley-idler Arm		Appelez-nous	-
30	F079494-300		Support Plate & Bolts		Appelez-nous	-
31	08015502		Motor & Switch		Appelez-nous	-
32	08014888		Switch Motor (ge)		Appelez-nous	-
33	5303206864		Screw-ground		Appelez-nous	-
36	08004096		Speednut		Appelez-nous	-
37	3161306		Spring Washer		Appelez-nous	-
38	08002396		Gasket		Appelez-nous	-
39	F079428-000		Impeller Kit (consists Of Seal Assembly, Gasket, Impelle		Appelez-nous	-
40	3161489		Housing-pump		Appelez-nous	-
41	F077352-000		Cover, Pump		Appelez-nous	-
42	3161165		Seal Kit (consists Of Seal Assembly & Gasket.)		Appelez-nous	-
