SELECT A DIAGRAM

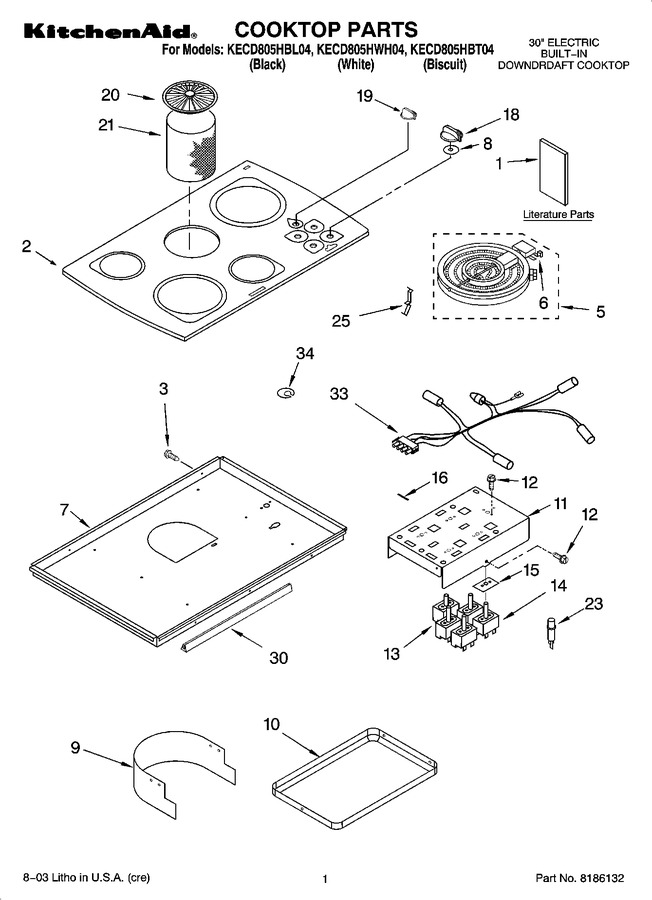

01 - Cooktop Parts


02 - Blower Unit Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3192708		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT3192515		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
1	LIT8285364		Literature Parts (installation Instructions)		Appelez-nous	-
2	4455585		Cooktop, Glass & Bracket Assembly (honeycomb)		Appelez-nous	-
2	4455584		Cooktop, Glass & Bracket Assembly (white)		Appelez-nous	-
2	4455586		Cooktop, Glass & Bracket Assembly (black)				$ 454.28
3	WP3196557		Screw, 8-18 X 3/8   (Replaces: 3196537)			Immediately	$ 7.16
5	W10823698		Element, Surface (rr 1800w)   (Replaces: 8523696)			Immediately	$ 175.61
5	W10823697		Element, Surface (l.f. (2200w))   (Replaces: 8523694)				$ 326.21
5	W10823711		Element, Surface (lr 1200w)   (Replaces: 8523698)			Immediately	$ 183.95
5	W10823699		Element, Surface (rf 1500w)   (Replaces: 8523697)			Immediately	$ 145.67
6	3192520		Rail, Element (right Hand)		Appelez-nous	-
6	3192521		Rail, Element (left Hand)		Appelez-nous	-
7	4456522		Box, Burner		Appelez-nous	-
8	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
9	4455802		Shield, Vent		Appelez-nous	-
9	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.47
10	3190656		Drip Bowl, Grease		Appelez-nous	-
11	3183956		Seal, Switch Cover				$ 41.81
11	4455354		Bracket, Control Mounting		Appelez-nous	-
12	WP486579		Screw, 8-32 X 7/32   (Replaces: 311865)				$ 6.61
13	3190639		Switch, Speed Control				$ 62.56
14	WP3191050		Switch, Infinite (rr & Lf)   (Replaces: 3191050)			Immediately	$ 149.72
14	WP3191049		Switch, Infinite (lr - Rf)   (Replaces: 3191049)				$ 150.25
15	8285469		Seal, Switch				$ 45.00
16	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 10.33
18	WP9750372FF		Knob, Control (black)   (Replaces: 9750372FF)			Immediately	$ 18.86
18	WP9750372FC		Knob, Control (biscuit)   (Replaces: 9750372FC)			Immediately	$ 6.47
18	WP9750372FW		Knob, Control (white)   (Replaces: 9750372FW)				$ 17.99
19	3190723		Knob, Blower Switch (black)		Appelez-nous	-
19	3190724		Knob, Blower Switch (white)		Appelez-nous	-
19	3192502		Knob, Blower Switch (biscuit)		Appelez-nous	-
20	3192418		Grille, Air		Appelez-nous	-
21	3192530		Filter, Grease				$ 56.78
23	3193012		Light, Indicator				$ 99.17
25	3191791		Spring, Locator		Appelez-nous	-
30	3193032		Gasket, Vent Shield		Appelez-nous	-
33	3191343		Light, Hot Surface Indicator		Appelez-nous	-
34	3193094		Plate, Cover		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
