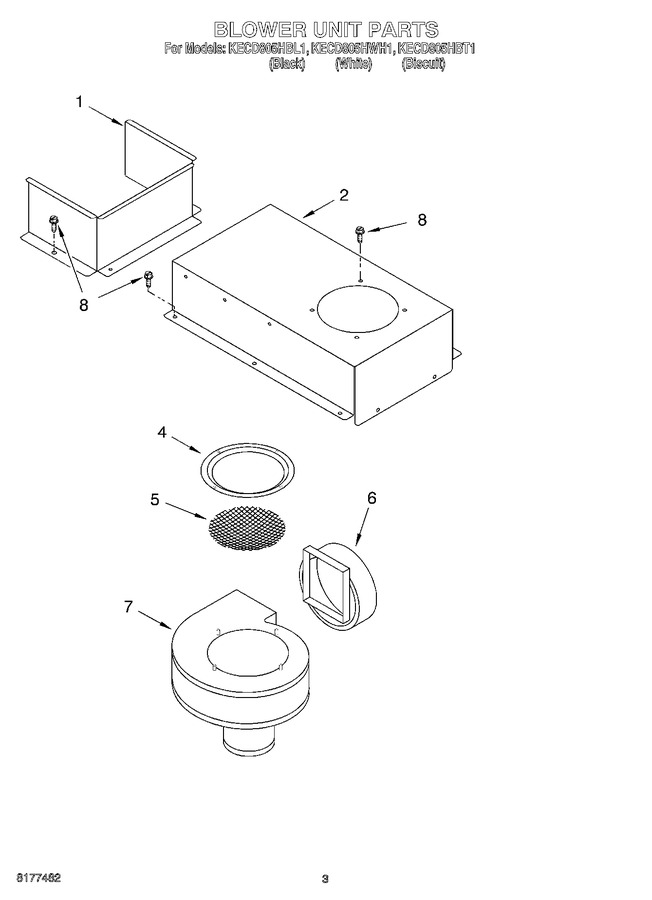

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4455355 | Bracket, Shield |
|
- | |||||
| 2 | 3192403 | Bracket, Blower Mounting |
|
- | |||||
| 4 | 3190735 | Ring, Inlet |
|
- | |||||
| 5 | 3190947 | Screen, Inlet |
|
- | |||||
| 6 | 3190736 | Adapter, Vent |
|
- | |||||
| 7 | 3190737 | Blower Motor Asm. (includes Fan Asm) |
|
- | |||||
| 8 | 242830 | Wire (14 Ga. 200 C Brown) |
|
- | |||||
| 8 | 242825 | Wire (14 Ga. 150 C Red) |
|
- | |||||
| 8 | 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | |||||
| 8 | 242826 | Wire, White 14 Ga. 150~c |
|
- | |||||
| 8 | 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | |||||
| 8 | 242832 | Wire, Yellow 14 Ga. 200~c |
|
- | |||||
| 8 | 3191048 | Cleaner, Glass |
|
- | |||||
| 8 | 4455278 | Harness, Wire (ceran Downdraft) |
|
- | |||||
| 8 | 3190722 | Harness, Wire (blower/switch) |
|
- | |||||
| 8 | WP98997 | Clip (Replaces: 98997) |
|
$ 9.98 | |||||
| 8 | 3190962 | Strain Relief |
|
- | |||||
| 8 | 3192704 | Conduit, Downdraft |
|
- | |||||
| 8 | WA906B | Scraper, Glass (Replaces: 3183488) |
|
Immediately | $ 4.86 | ||||
| 8 | WP3400015 | Screw, 10-32 X 3/8 (Replaces: 3400015) |
|
$ 6.47 | |||||
| 8 | 242820 | Wire (14 Ga. 150 C Black) |
|
- | |||||
| 8 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 8 | 3172515 | Hardware, Mounting |
|
- | |||||
| 8 | 242828 | Wire (12 Ga. 150 C Black) |
|
- | |||||
| 8 | 242822 | Wire (14 Ga. 150 C Brown) |
|
- | |||||
| 8 | 242823 | Wire (14 Ga. 150 C Green) |
|
- | |||||
| 8 | 242824 | Wire (14 Ga. 150 C Orange) |
|
- | |||||
| 8 | 242829 | Wire, Red 12 Ga. 150~c |
|
- |
